Configura-
tion
Instructions

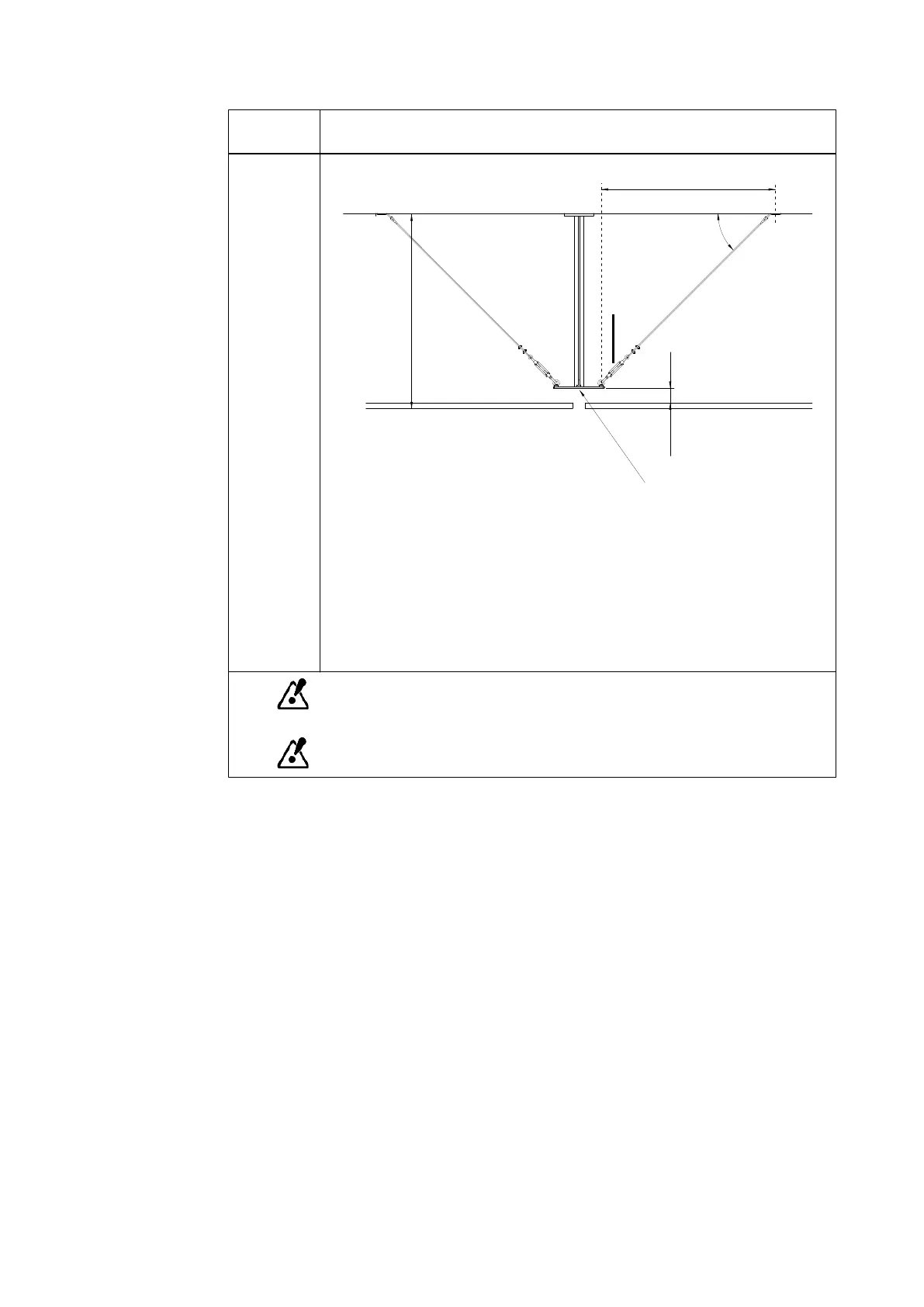

M
concrete ceiling
suspended ceiling
l1
a
150mm
<45°
z ≥ l + 140mm
20 Nm (4xM8)
• Only use the upper vertical bar.
• Cut the bar as straight as possible.
•
Cut four M8 threads into the bar and mount the interface plate.
• Tighten the screws with the specified torque of 20 Nm.
• Mount the rope ceiling angles according to the drawing.
NOTE: The angle between the rope tightener and ceiling can be smaller than 45°
if necessary (e.g., angle brackets further away from the ceiling bracket).
Fix the rope loop with at least three rope clamps.
Fix the rope tighteners only after applying the proper tension.
CEILING AND WALL MOUNTS
Site Planning Manual Rev. 1.0 ExacTrac Ver. 6.x 55
