Configura-
tion
Instructions
L and XL

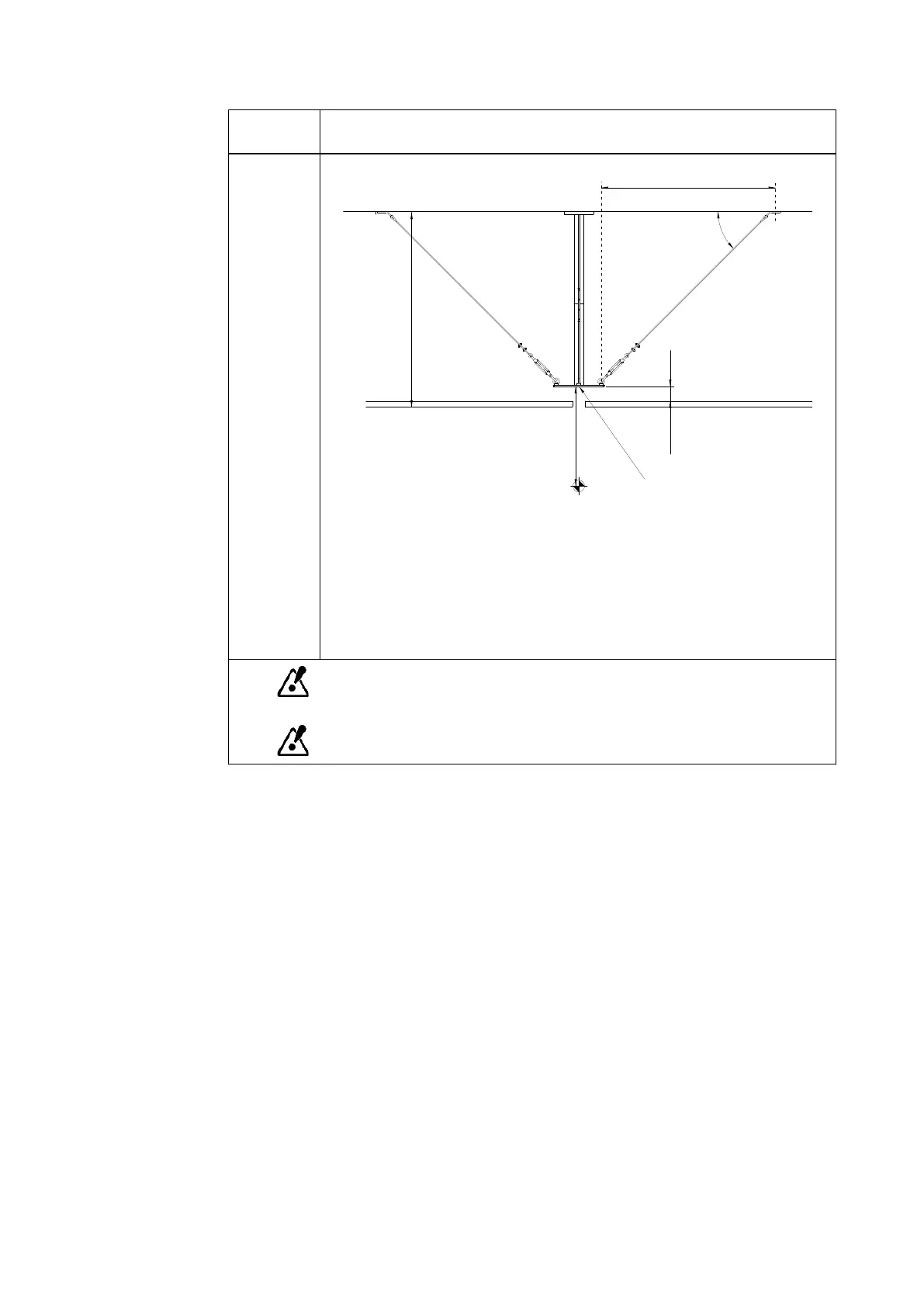

concrete ceiling
suspended ceiling
l1
a
150mm
<45°
z = l + 140mm
20 Nm (4xM8)
l2
<1950mm
Isocenter
• Use both vertical bars.
• Mount the ceiling angles according to the drawing.
•
Assemble the bars’ four connection plates. Fix each connection plate with four
tight screws.
• Tighten the screws with the specified torque of 20 Nm.
• L only: Cut each vertical profile bar accordingly at the half-length distance be-
tween the interface plate and concrete ceiling.
Fix the rope loop with at least three rope clamps.
Fix the rope tighteners only after applying proper tension.
Ceiling Mount Installation
56 Site Planning Manual Rev. 1.0
ExacTrac Ver. 6.x
