ELECTRIC SYSTEM
KUKJE MACHINERY CO., LTD.
158
The lighting system consists of the combination switch (light switch and hazard), head lights, tail lights,
hazard lights, etc.
<1> Head Light

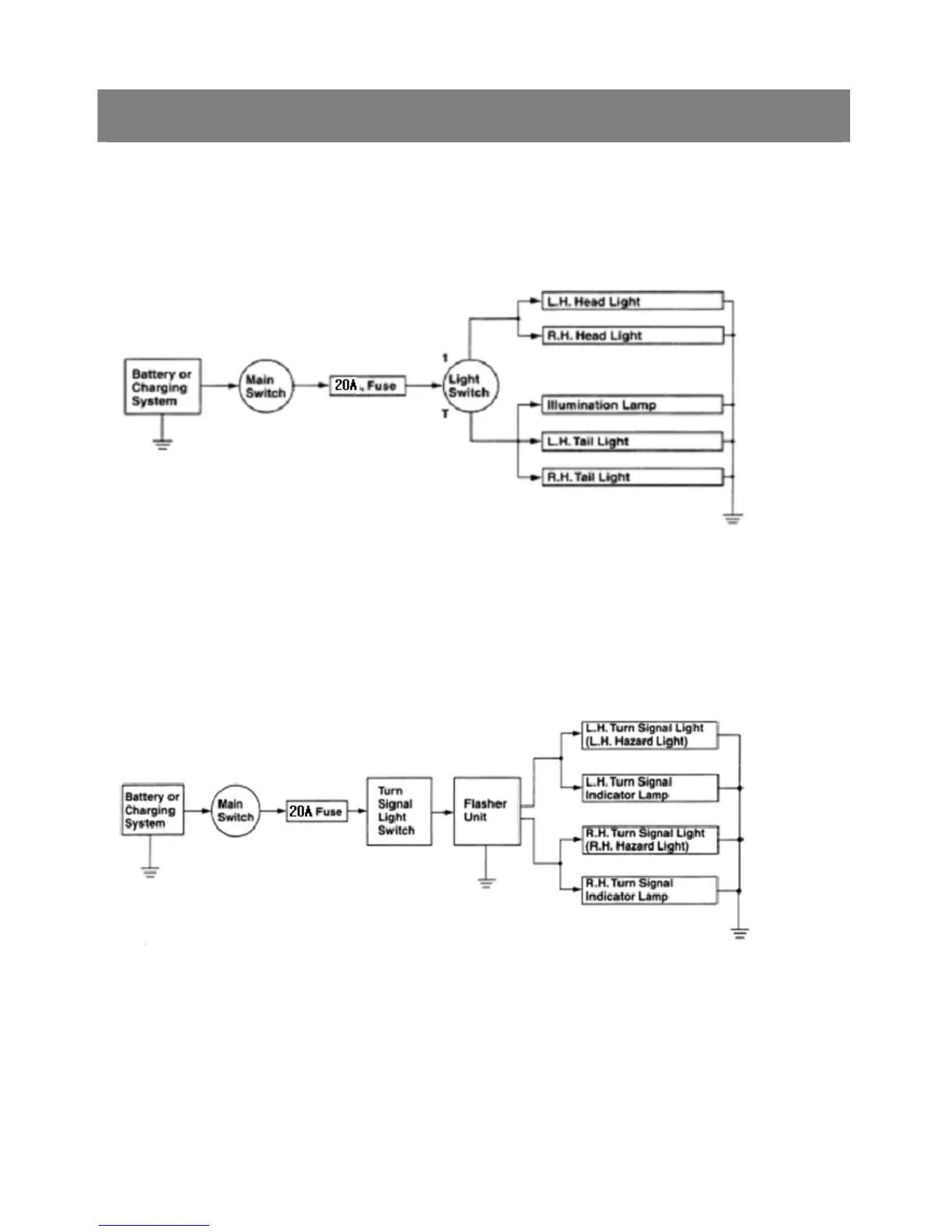

The light switch, which forms a combination switch with the turn signal light switch, has two positions OFF
and ON. Current passes through the light circuit as shown in the figure above.
<2> Turn Signal Light
The turn signal light which, forms a combination switch with the light switch. This switch has three positions:
OFF, 1., 2.. When using turn signal light switch, only one side blinks while the other stay on. The operation of
the turn signal light switch is given top priority when the hazard switch and the turn signal light switch are
turned on at the same time.
