TRANSMISSION
KUKJE MACHINERY CO., LTD.
81

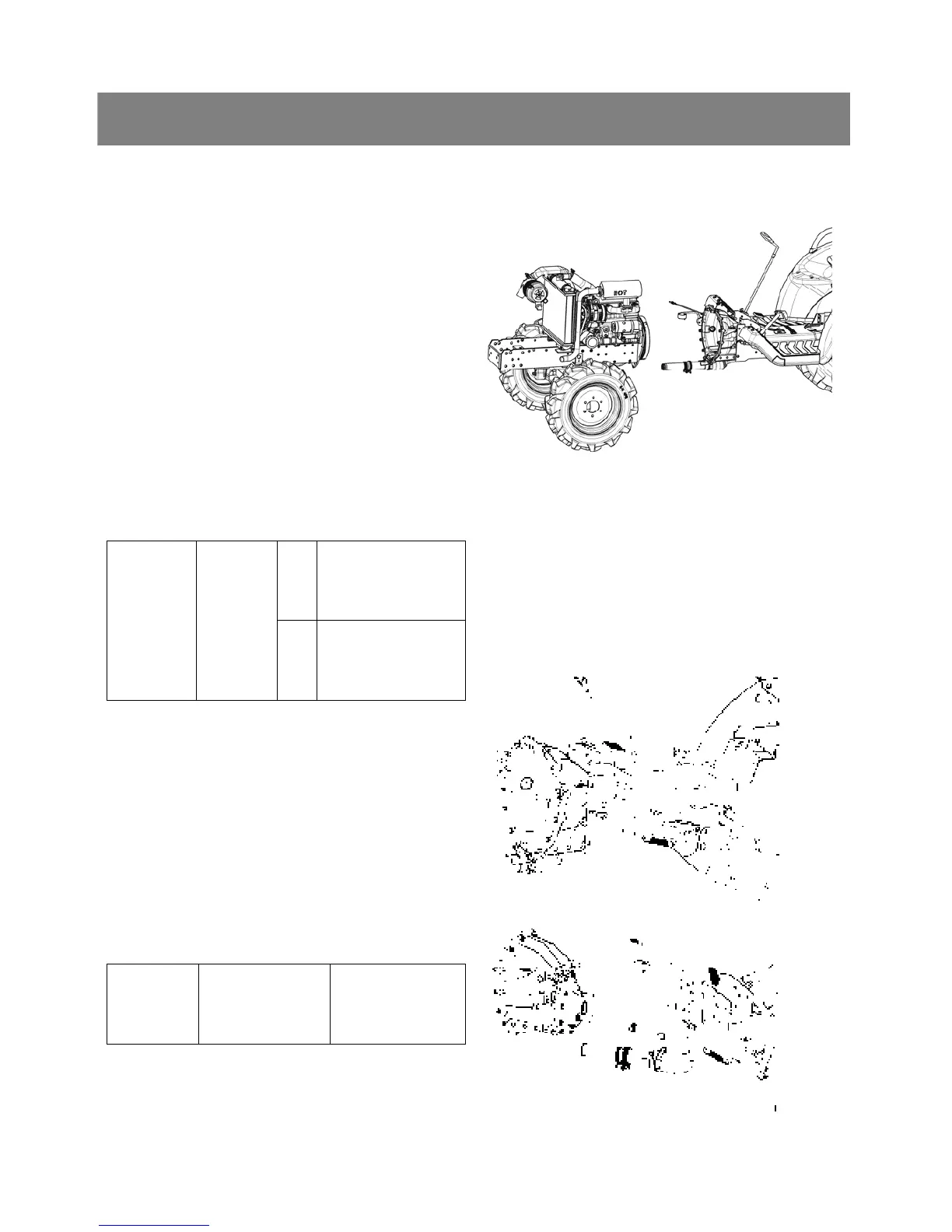

5. CHECKING, DISASSEMBLING AND SERVICING
< Separating the engine from clutch housing >
1. Disconnect the three point hitch delivery pipe
and suction hose.
2. Disconnect the glow plug lead wire and heat
sensor lead for alternator connector and starter
motor cable.
3. Place the jack under the center frame.
4. Hoist the engine by the chain at the engine
hook.
5. Remove the engine mounting screws and
separate the engine from the clutch housing.
▷ Reassembling
9 Apply liquid gasket to joint face of the engine
and clutch housing.
M8
23.5 to 27.5 Nm
2.4 to 2.8 kgfm
17.4 to 20.3 ft-lbs
Tightening
torque
Engine
mounting
screw
M10
48.1 to 55.8 Nm
4.9 to 5.7 kgfm
35.5 to 41.2 ft-lbs
< Separating clutch housing >
1. Remove the clutch pedal rod(1).
2. Loosen the clamp and disconnect connecting
hose(2).
3. Separate the clutch housing from center frame.
4. Remove the hydraulic pipe(3).
▷ Reassembling
9 Apply grease to the spline of propeller shaft and
ball joint.
Tightening
torque
Clutch housing
mounting screw
and nut
77.5 to 90.2 Nm
7.9 to 9.2 kgfm
57.1 to 66.5 ft-lbs
*. PART NAME
1) Clutch pedal rod 2) Connecting hose
3) Hydraulic pipe
(1)
(2)
(3)
(2)
