Briot Silver - Page 65

Maintenance: Settings and adjustments
60 Silver FC 00 511

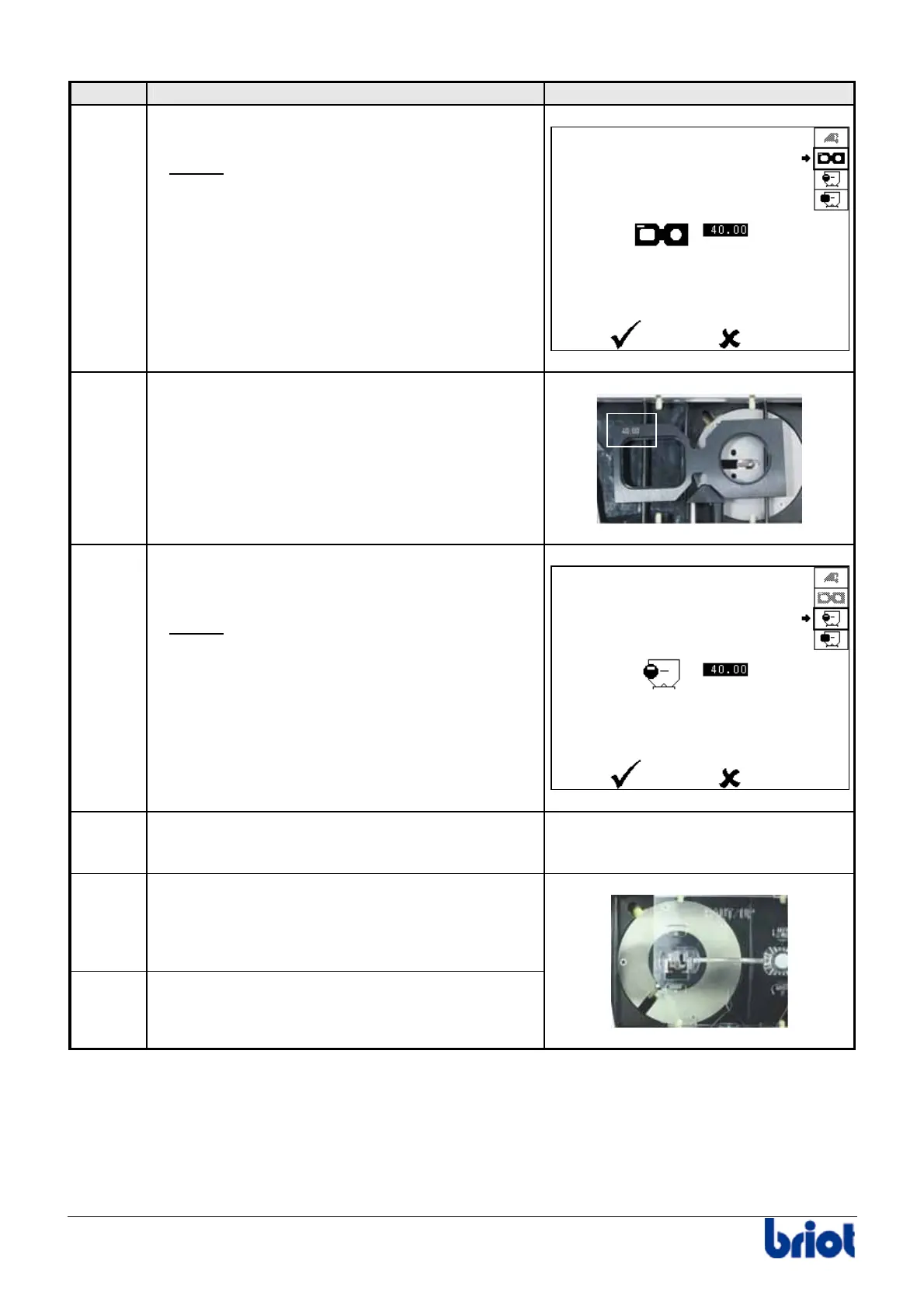

Step Action Illustration
5
When the gain adjustment is finished, remove
the gain adjustment tool.
Result:
the following screen is displayed.
6
Insert the adjustment tool (the round right side)
n° 14 04 185 on the frame holder.
7
Change or confirm the displayed value (Refer
to the paragraph Preliminary notes above).
Result:
When you have confirmed the value,
the round form and then the rectangular
form are traced.
Then, the screen shown opposite is
displayed.
8
When the adjustment is finished, remove tool
n° 14 04 185.
-
9
Place the round pattern n° 14 04 192 (Ø40 mm)
on the pattern holder.
10
Insert the pattern holder on the frame holder.
