Brocade Communications Systems MLX Series Hardware Installation Guide

Brocade MLX Series and NetIron XMR Hardware Installation Guide 97
53-1003821-01
Installing a Brocade MLX-32 router
2

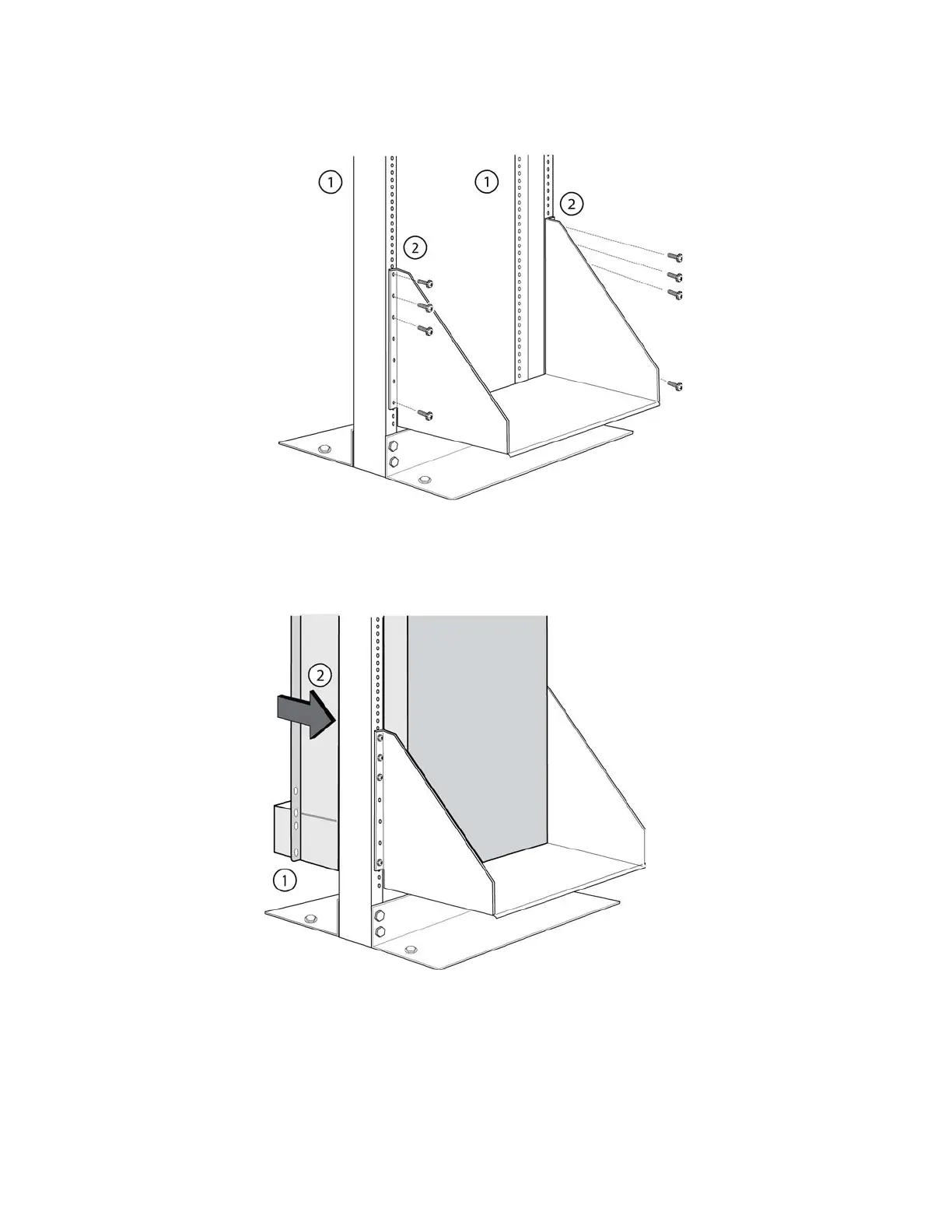

Slide chassis onto the saddle
FIGURE 66 Slide the device into the rack
4. Use the provided standard #12-24, #10-32 or M6 pan head screws (dependent on the
specifications of your rack) in each available hole on the rack mount bracket to attach the
router to the rack mounting poles. See Figure 67.
1 Front (port side) of rack mounting post
2 Rear side of rack mounting post
1 Align bottom of router slightly above the seat of the saddle using mechanical lift.
2 Using at least two people, slide router gently onto saddle and into the rack.
