114 Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1003821-01
Installing a Brocade MLX-32 router
2

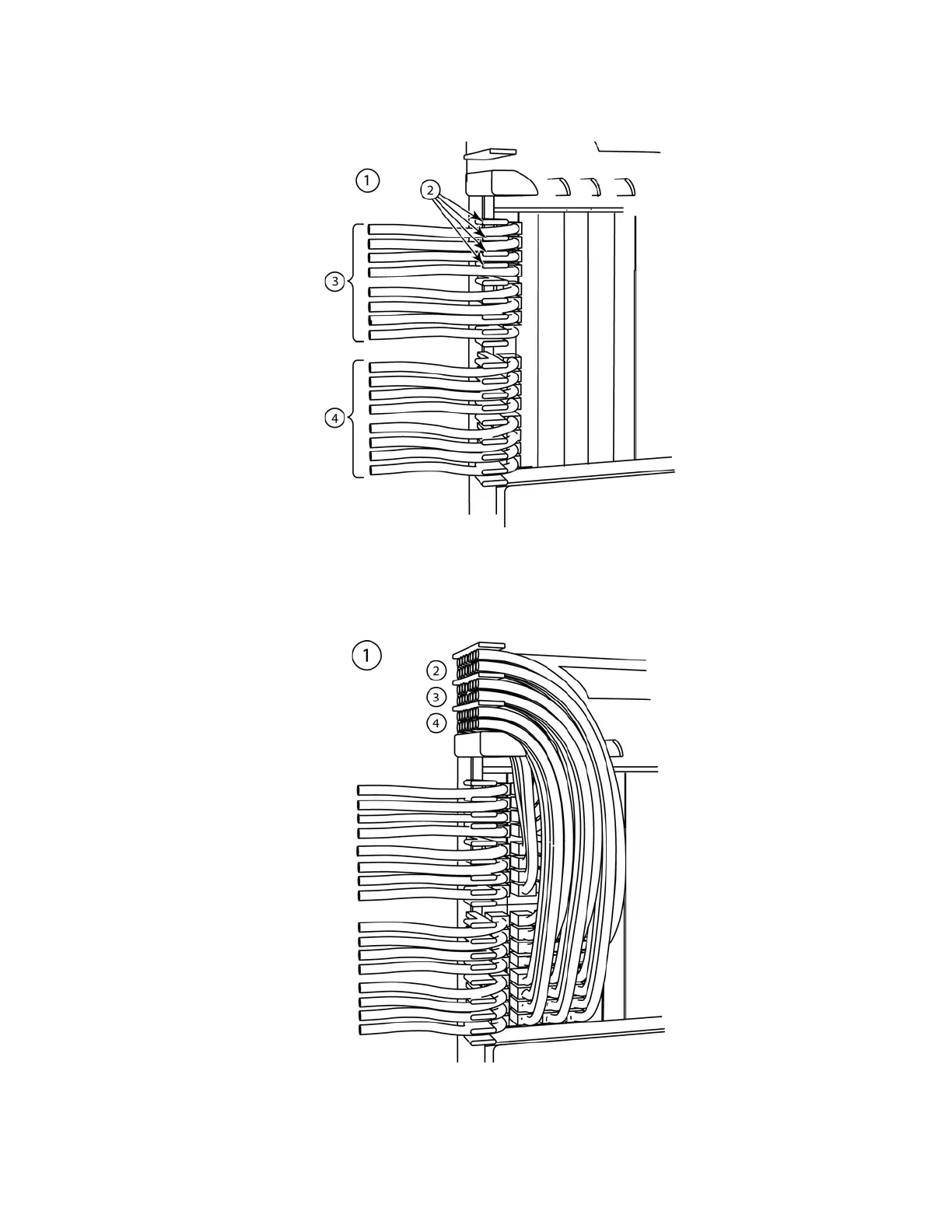

FIGURE 80 Routing lower-left quadrant cables
1 Lower left quadrant 3 Cables from slot #18
2 Cables from slot #17 4 Side combs (18)
1 Lower left quadrant 3 Comb B (slot #21 and #22 cables)
2 Comb A (slot #19 and #20 cables) 4 Comb C (slot #23 and #24 cables)
