Brocade MLX Series and NetIron XMR Hardware Installation Guide 113
53-1003821-01
Installing a Brocade MLX-32 router
2
2. Route cables from slots #13 and #14 up through comb A. Refer to Figure 78.
3. Route cables from slots #11 and #12 up through comb B.
4. Route cables from slots #9 and #10 up through comb C.
Cable routing for the lower-left quadrant
1. Route cables from slots #18 and #17 directly to the left through the side comb. Refer to
Figure 79.
FIGURE 79 Routing lower-left quadrant cables

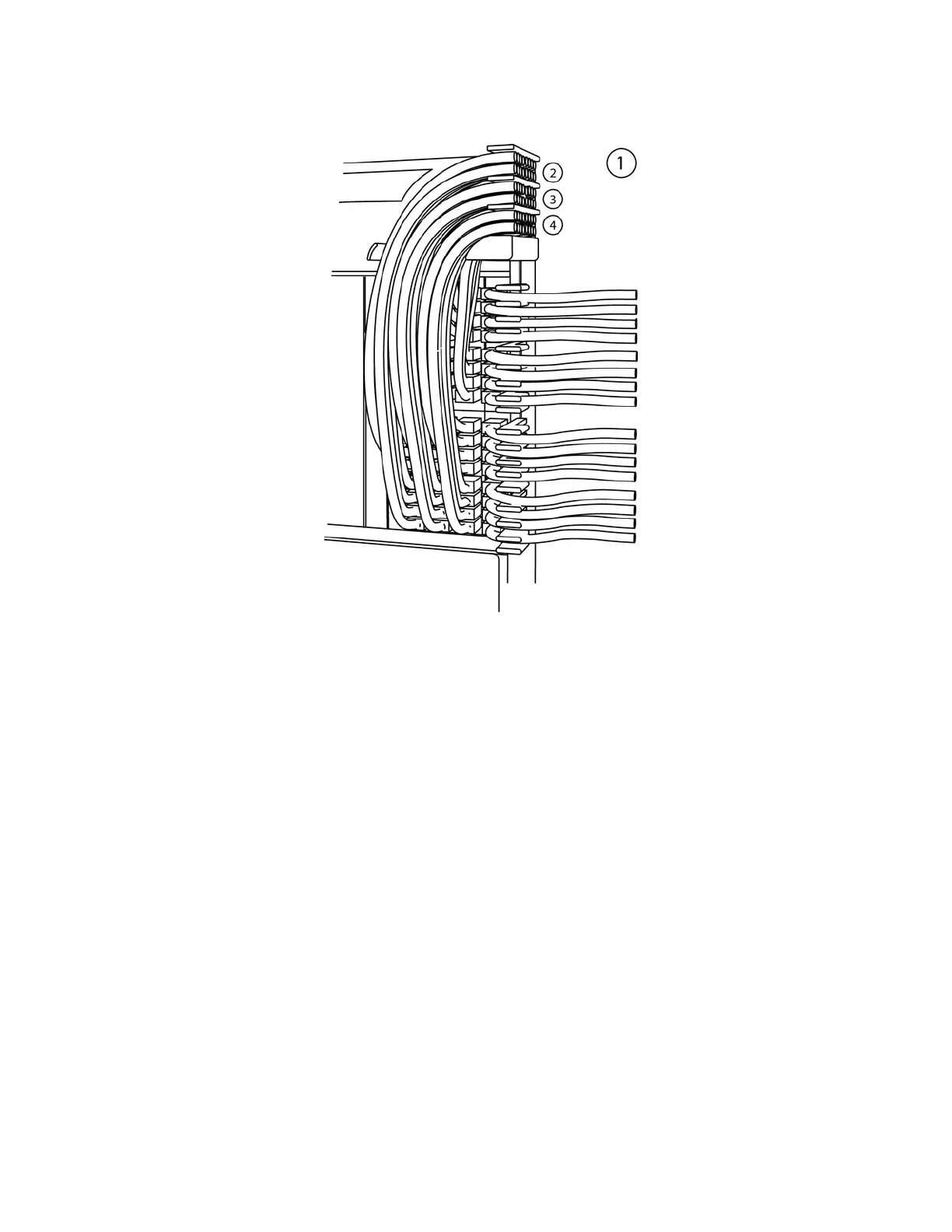

1 Upper right quadrant 3 Comb B (slot #11 and #12 cables)
2 Comb C (slot #9 and #10 cables) 4 Comb A (slot #13 and #14 cables)
