Brocade Communications Systems MLX Series Hardware Installation Guide

120 Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1003821-01
Installing a Brocade MLX-32 router
2
1. Use a#1 Phillips screwdriver to remove the screw that secures the safety cover, as shown in
Figure 86. Remove the safety cover.

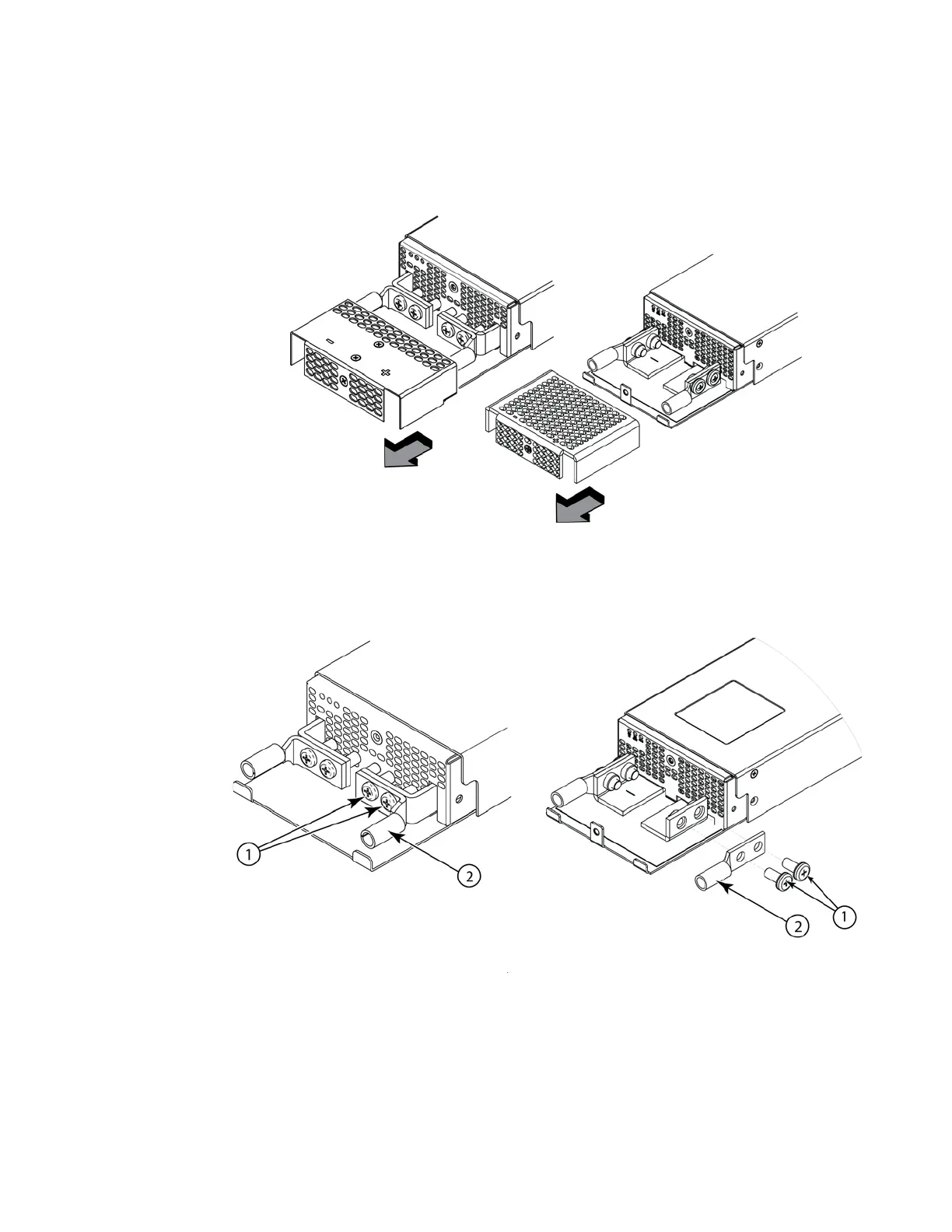

FIGURE 86 Removing the safety cover
2. Use a #2 Phillips screwdriver to unscrew the power lugs. Refer to Figure 87.
FIGURE 87 Removing the power lugs (2400W power supply and 3000W power supply displayed)
3. Crimp the correct AWG power supply wire into the power lugs:
#4 AWG wire for 2400 W power supply
#2 AWG for 3000 W power supply
Refer to Figure 87.
1 Power lug screws 2 Power lug
