142 Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1003821-01
Installing a NetIron XMR 4000 router
3
To perform this task, you need a #2 Phillips-head screwdriver.

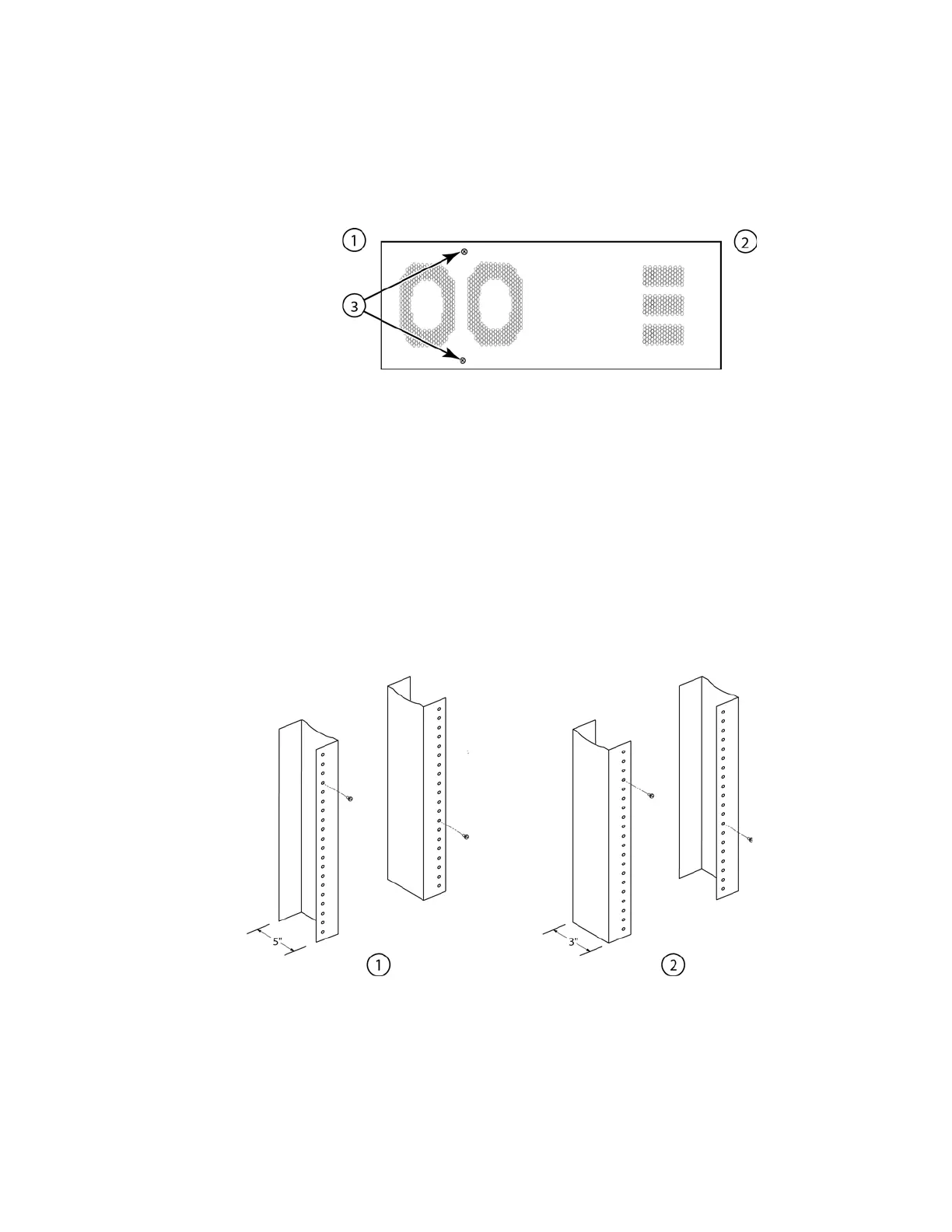

FIGURE 93 Shipping screw locations
Follow these steps to mount a NetIron XMR 4000 router in a rack.
1. Determine the position of each router in the rack. For example, place routers with the fewest
modules near the top of the rack, routers with more modules near the middle of the rack, and
fully populated routers near the bottom of the rack.
2. Position two of the four mounting screws for each router according to the spacings of the
keyhole slots on the mounting brackets, as shown in Figure 94. When tightening the mounting
screws in the rack post, leave approximately 1/4 inch clearance between the back of the screw
head and the rack post.
FIGURE 94 Positioning the mounting screws in rack posts
1 Front 3 Shipping screws
2Rear
1 Unequal flange equipment rack 2 Network equipment rack
