Installing a NetIron XMR 16000 router
3
NOTE
For the NEBS-compliant installation, AC power connections must use a surge protection device
(SPD) to protect AC power supplies from damage due to excessive power line surges.
1. Locate the power receptacles in the power supplies on the back panel.
2. Lift the cord retainer and connect an AC power cord to each power supply.
3. Snap the cord retainer over the power plug to hold it in place.

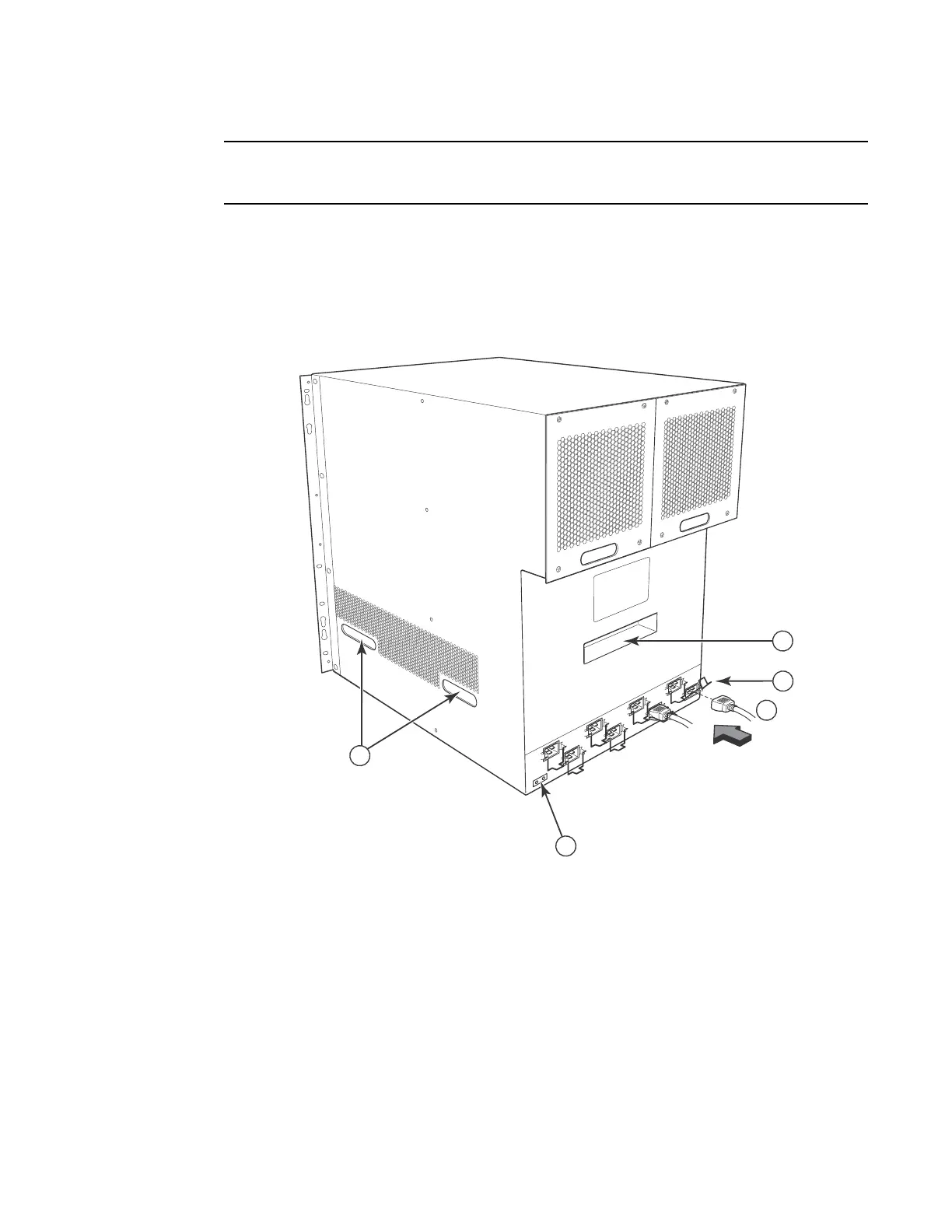

FIGURE 113 Connecting a power cord to the power supply in a NetIron XMR 16000 router
1 Lift handle 3 Power cord 5 Lift handles
2 Cord retainer 5 Ground point
