Brocade Communications Systems MLX Series Hardware Installation Guide

Brocade MLX Series and NetIron XMR Hardware Installation Guide 191
53-1003821-01
Installing a NetIron XMR 32000 router
3
1. Use a Phillips screwdriver to remove the center screw that secures the safety cover. Remove
the safety cover, as shown in Figure 132.

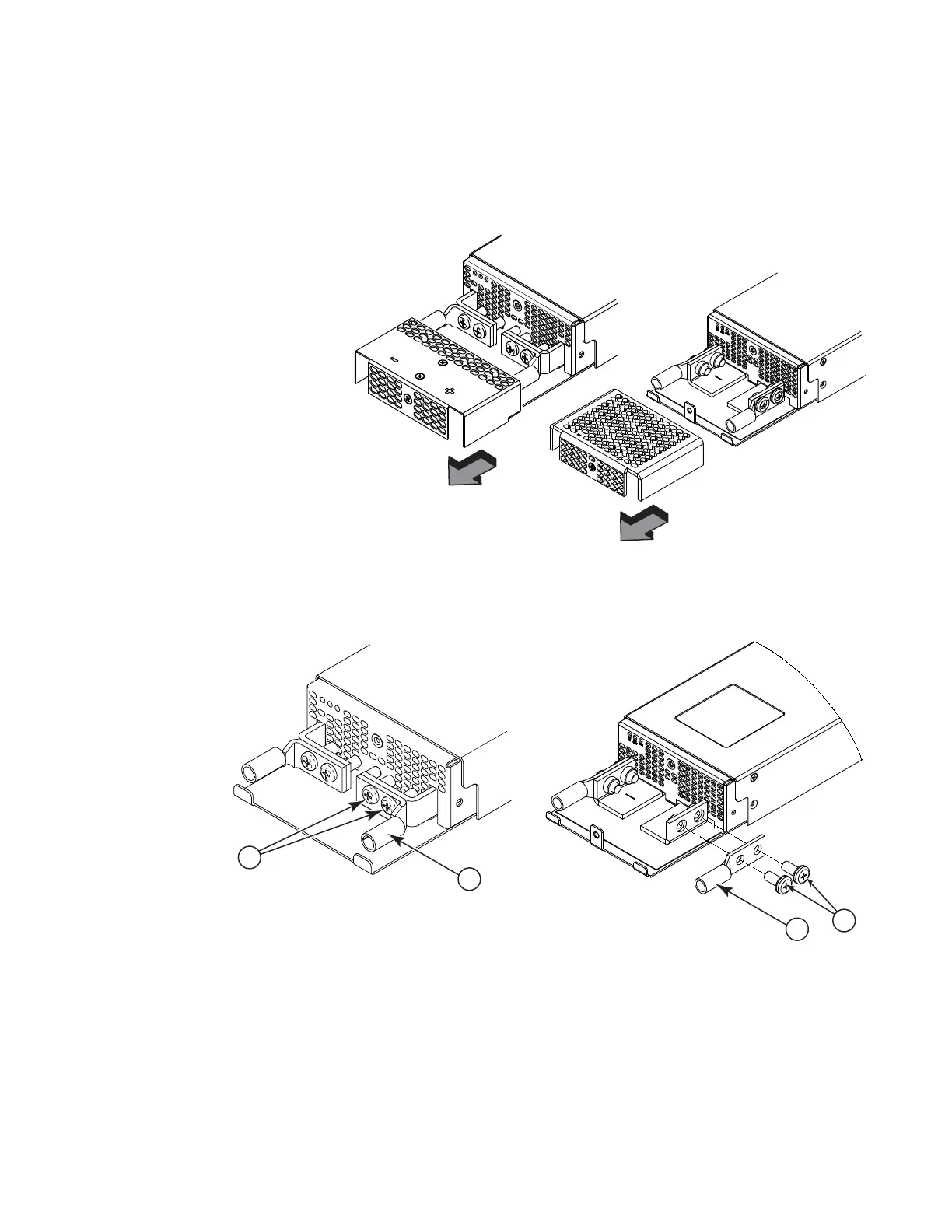

FIGURE 132 Removing the safety cover (2400W power supply and 3000W power supply displayed)
2. Use a #2 Phillips screwdriver to unscrew the power lugs. Refer to Figure 133.
FIGURE 133 Removing the power lugs (2400W power supply and 3000W power supply displayed)
3. Crimp the correct AWG wire into the power lugs:
For 2400 W power supply, crimp #4 AWG
For 3000 W power supply, crimp #2 AWG.
Refer to Figure 134.
1Lug screws 2 Power lug (2)
1
2
2
1
