Installing 2x100GbE interface modules in Brocade MLX routers
2
NOTE
The 2x100G interface module is sensitive to dust and debris. Keep the optics covers in place
until you are ready to connect the fiber cable. Clean all fiber cables properly before you
connect them to the 2x100G interface module.

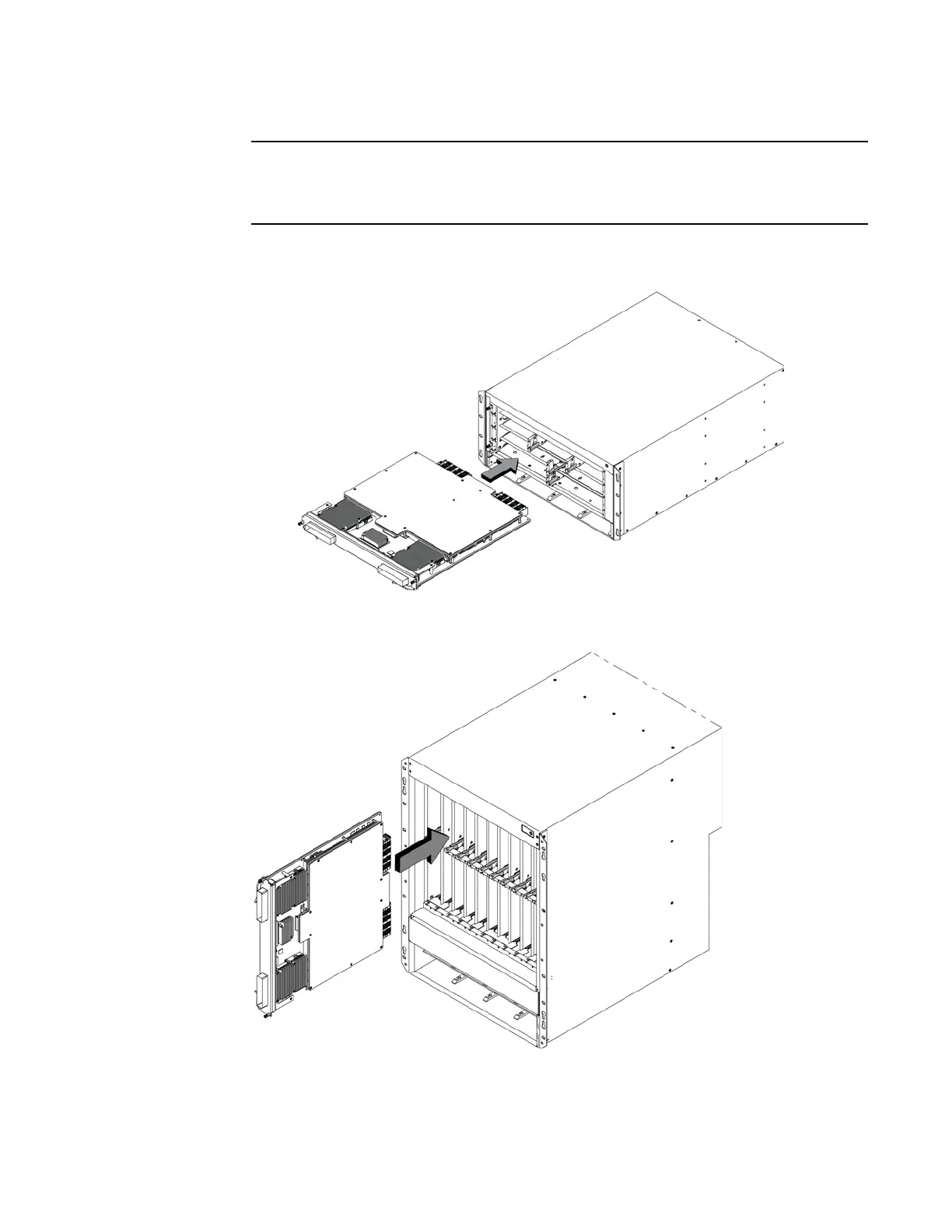

FIGURE 33 Installing 2x100G modules in a 4- or 8-slot device (4-slot shown)
FIGURE 34 Installing 2x100G modules in a 16- or 32-slot device (16-slot shown)
