70 Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1003821-01
Installing a Brocade MLX-16 router
2
You can install up the three Brocade MLX-16 routers in a standard 19-inch (EIA310-D) rack. It is
recommended that you install your router in a rack before you install any router components.
You can install the routers in either a front-mount configuration (using the factory-installed
mounting brackets) or a mid-mount configuration. For a mid-mount configuration, simply remove
the factory-installed mounting brackets from the front edges of the device and re-attach them to
the center sides of the device using the pre-drilled holes.
Follow these steps to mount a Brocade MLX-16 router in a rack.
You must provide standard #12-24 pan-head screws to mount each router in a rack. You will need a
Phillips screwdriver to perform this task.
1. Determine the position of each router in the rack. For example, place routers with the fewest
modules near the top of the rack, routers with more modules near the middle of the rack, and
fully populated routers near the bottom of the rack.
2. Position four mounting screws for each router according to the spacings of the keyhole slots
(the ones with the narrow portion pointing up) on the mounting brackets, as shown in
Figure 51. When tightening the mounting screws, leave approximately 1/4 inch of clearance
between the back of the screw head and the rack posts.

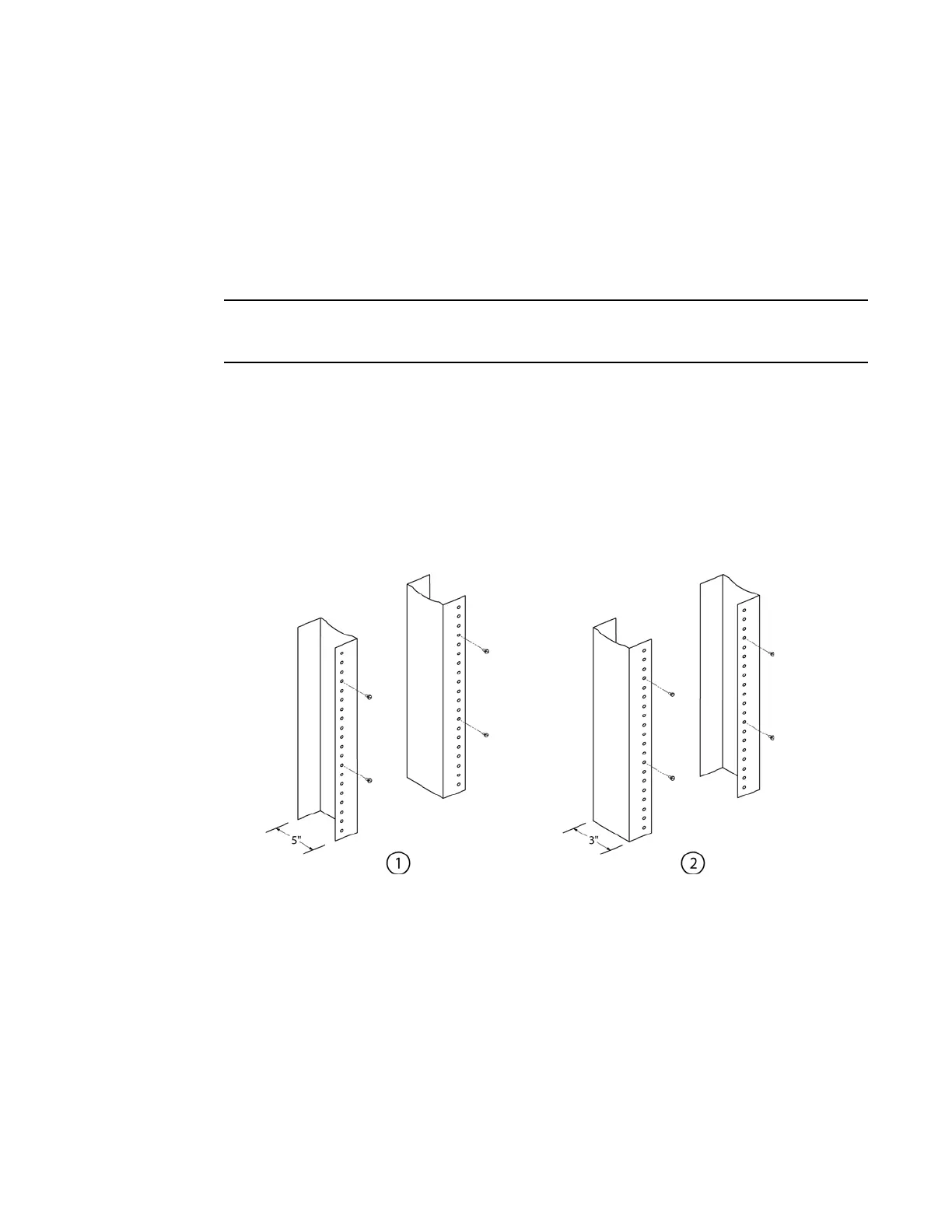

FIGURE 51 Positioning the mounting screws in the rack posts
3. Starting at the bottom of the rack, mount the router as shown in Figure 52. With two or more
people lifting the router, slip the wide portion of each keyhole slot over the corresponding
mounting screw in the rack post.
FIGURE 52 Mounting the Brocade MLX-16 router in a rack
1 Unequal flange equipment rack 2 Network equipment rack
