7. Select the rail extender that is appropriate for the depth of your EIA rack and attach it to the front of the top rail. Install the top rail
to the EIA rack rails using four 10-32 screws. Attach the top rail to the duct assembly using two 6-32 at-head screws, as
shown in the following gure.

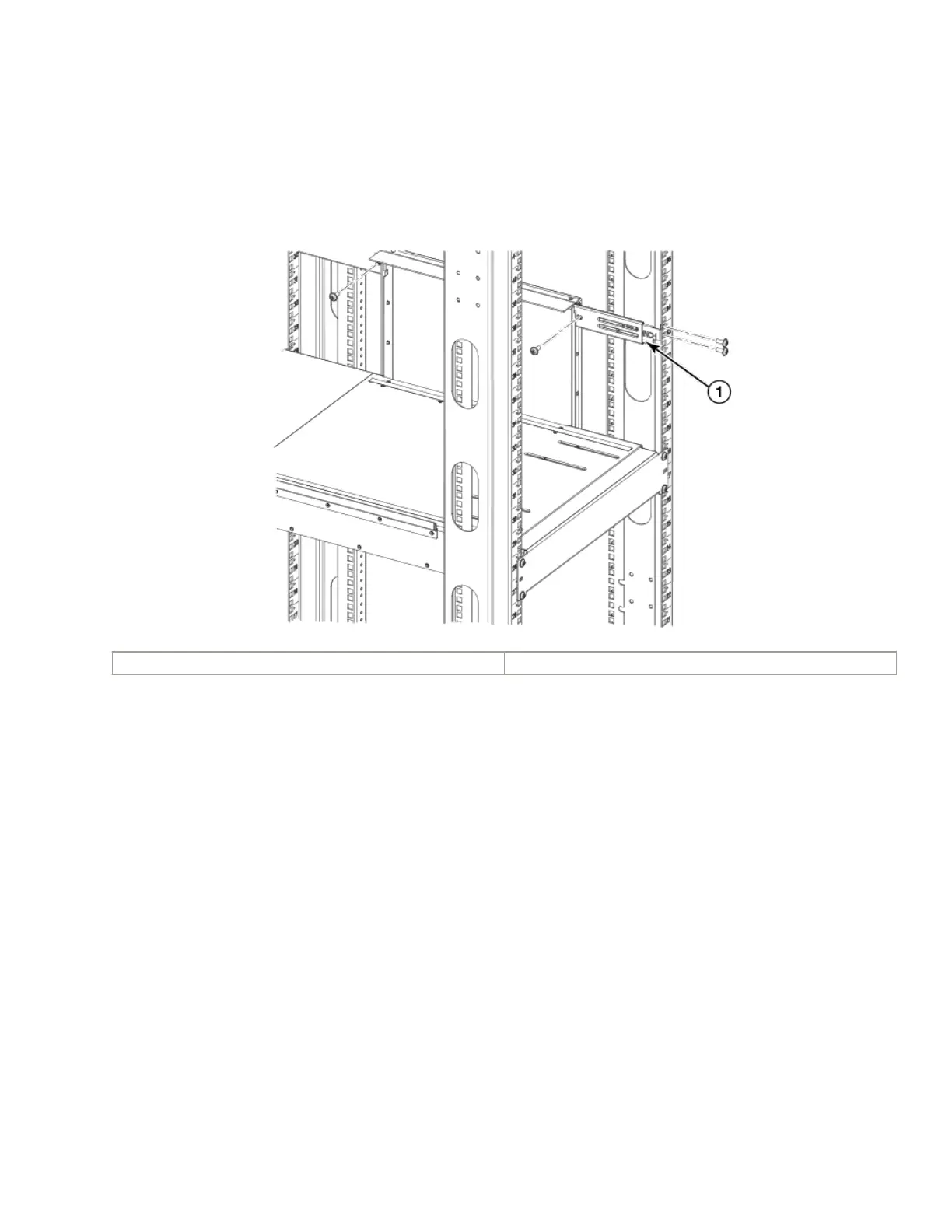

FIGURE 50 Install top rails to the rack
1 Rail extender
Mounting Brocade MLXe Series-4, -8, or -16 routers in a 4-post EIA rack
Brocade NetIron MLXe Series Hardware Installation Guide
126 53-1004203-04
