8. Install the router in the EIA rack. The router slides into the rack on top of the mounting shelf. Secure the router to the rack rails
using eight 10-32 screws. Refer to the following gure (MLXe-4 slot router shown).

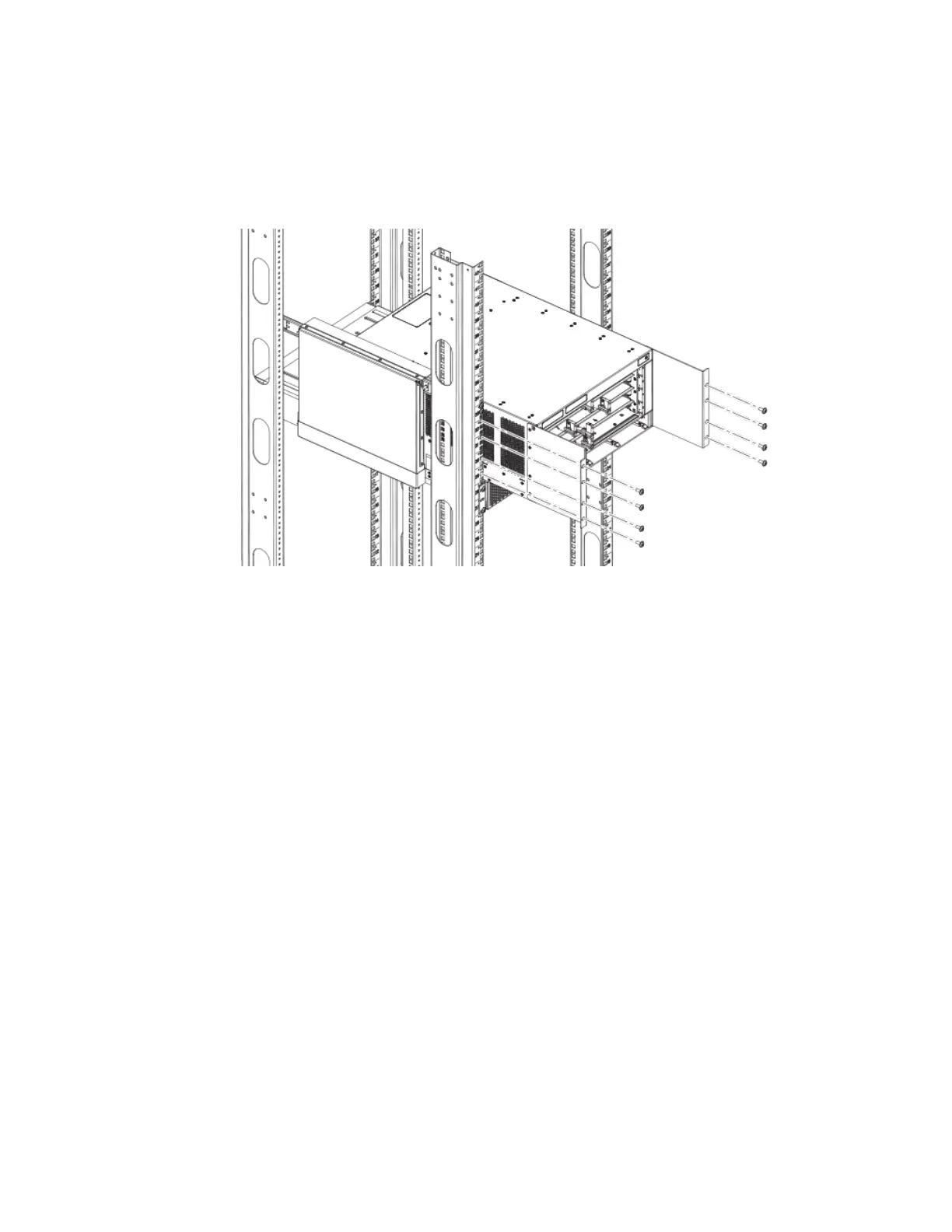

FIGURE 51 Install the router on the mounting shelf
Mounting Brocade MLXe Series-4, -8, or -16 routers in a 4-post EIA rack
Brocade NetIron MLXe Series Hardware Installation Guide
53-1004203-04 127
