2. Pull the lter tray away from the router as shown in one of the following two gures.

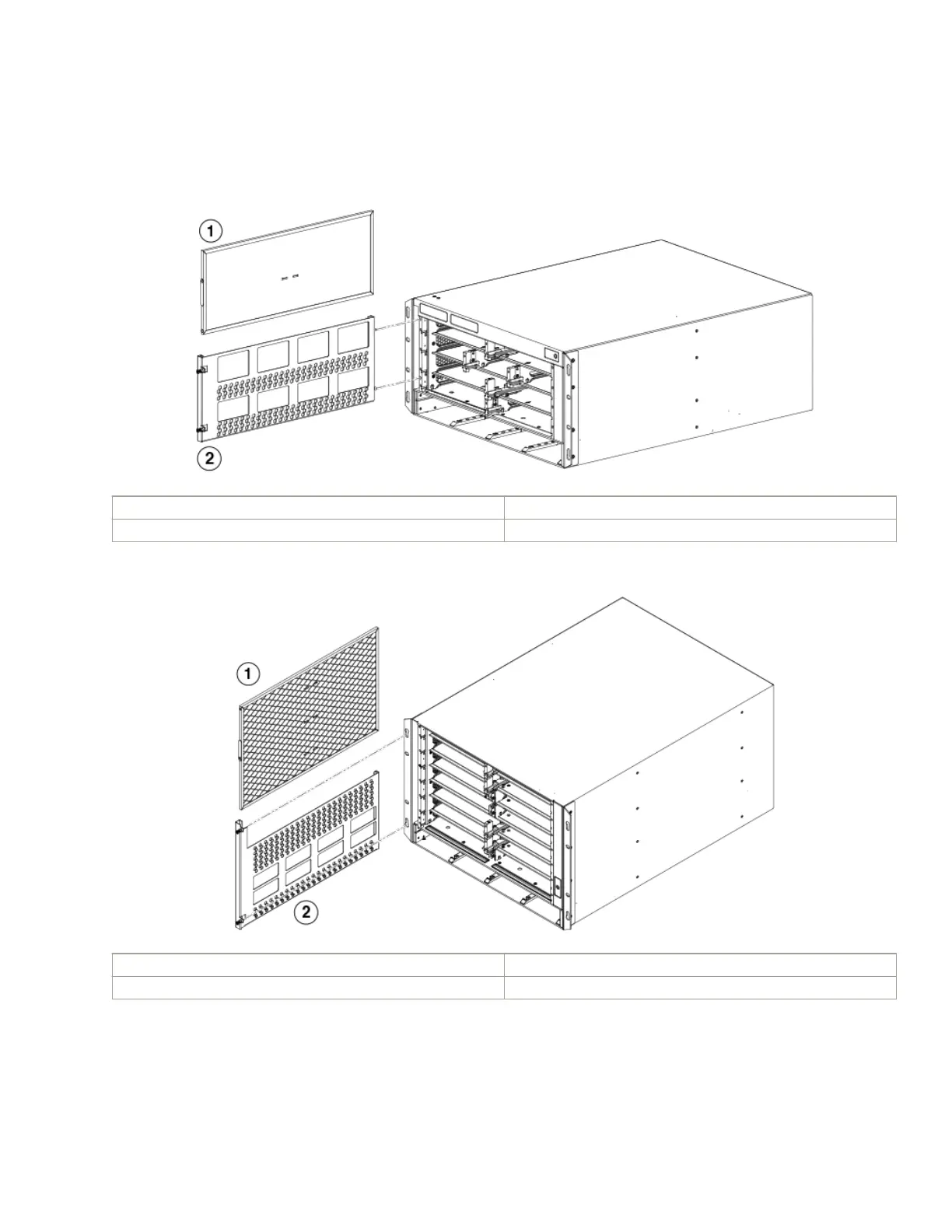

FIGURE 117 Replacing an air lter in a Brocade MLXe Series 4-slot router.
1 Air lter
2 Air lter tray
FIGURE 118 Air lter removal and replacement for the Brocade MLXe Series 8-slot router.
1 Air lter
2 Air lter tray
3. Remove the old air lter from the tray and discard it.
4. Insert the replacement air lter into the air lter tray.
5. Replace the lter tray in the router and tighten the two screws.
Replacing fan assemblies
