5. Place the handle over the upward deector aligning the handle with the screw holes, and secure the handle to the upward
deector and fan assembly faceplate with the two screws, as shown in the following gure.

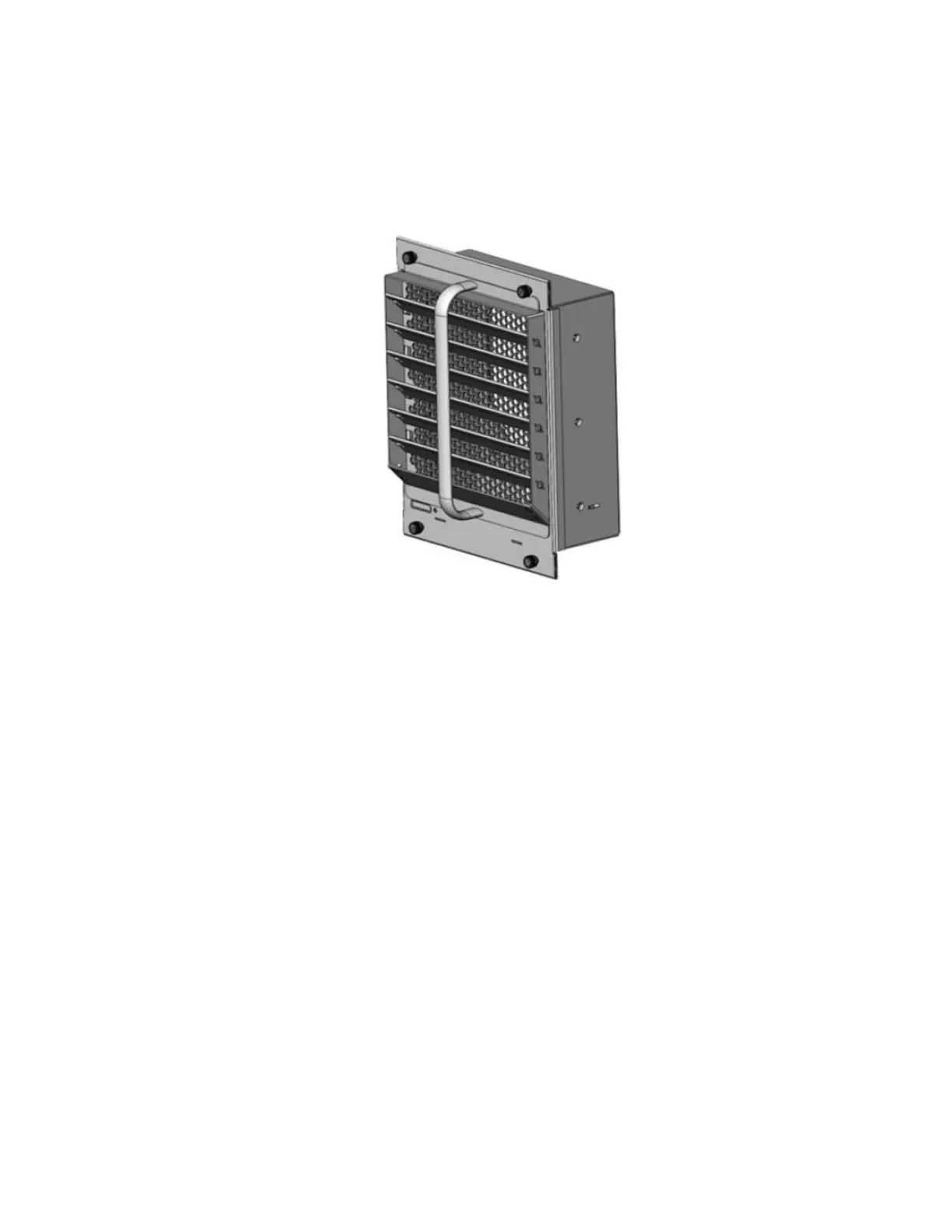

FIGURE 123 Upward deector oriented correctly between the handle and fan assembly faceplate
6. Re-attach the fan assembly faceplate to the fan assembly by securing three screws on each side.
NOTE
Replacing the tape is not required.
Reinstalling the modied fan assembly in the chassis
To reinstall the modied fan assembly, complete the following steps:
1. Insert the modied fan assembly into the fan slot and push the assembly in until the fan assembly faceplate is ush with the
chassis. Pushing the fan assembly in seats the fan connector in the router connector.
2. Secure the fan assembly to the router by replacing and tightening the four screws.
3. Check the fan status LED in the lower left corner of the faceplate. It will glow red momentarily when power is applied, and then it
will change to green when the fan comes up to speed.
4. To verify that the fan is operating correctly, access the CLI and enter the show chassis command.
Replacing fan assemblies
Brocade NetIron MLXe Series Hardware Installation Guide
53-1004203-04 269
