Operation Manual
FT1020G3 Rev 2.4
82

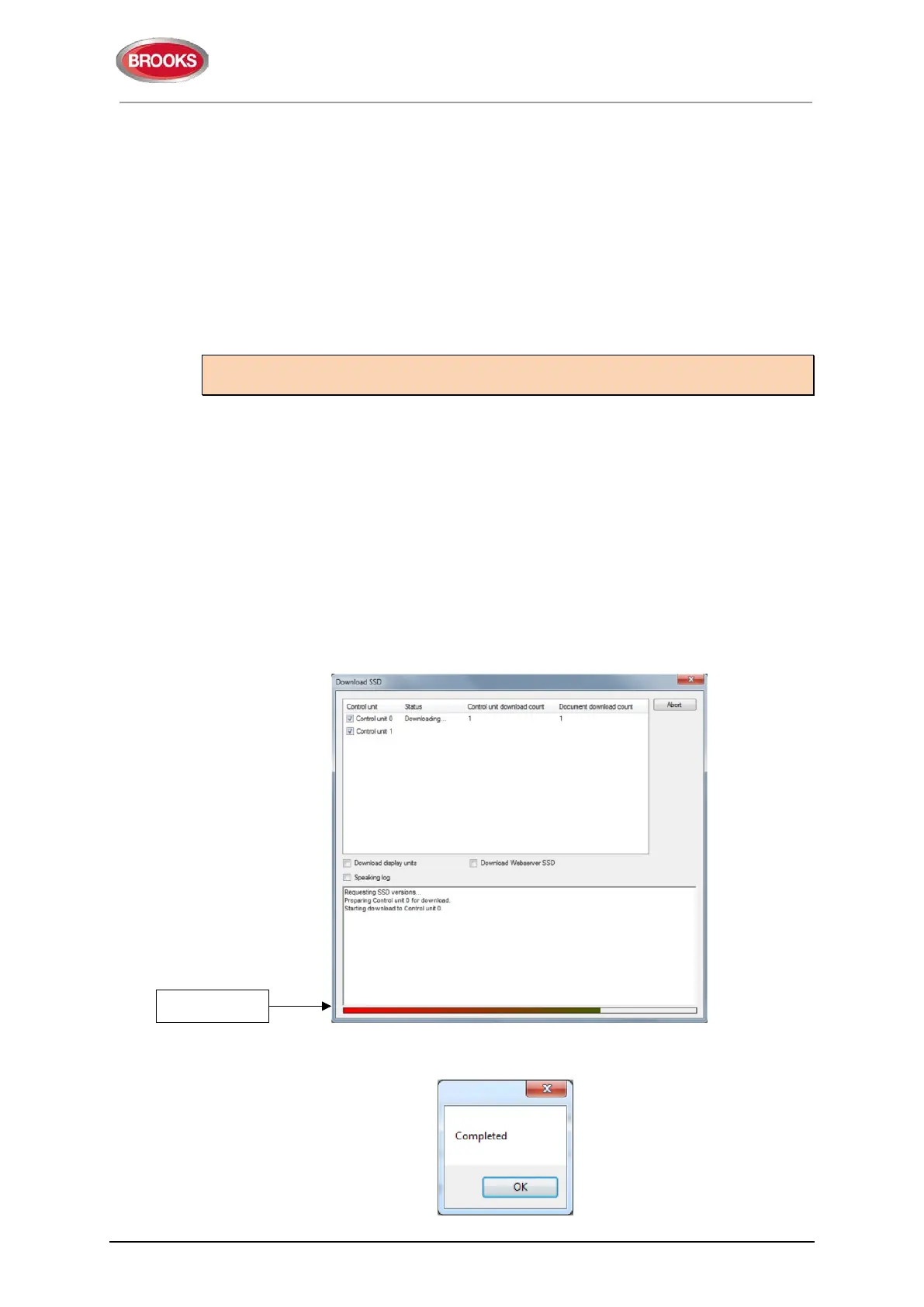

When the installation is ready, i.e. all units connected and the power is turned on, the SSD
download can take place. When a number of Control Units are connected in a TLON
network, the network should be running before the SSD download can take place.
Version Control for SSD Download
In EBLWin, when the Download SSD window is opened, EBLWin checks that the SSD file
originates from the SSD in the control units. The check is started automatically when the
download SSD window is opened. It is not possible to start SSD download until the check
is completed (or timeout occurs).
If the check shows that the SSD doesn't match the SSD in one or more control units, there
will be a dialog window, asking if the download shall proceed anyway.
In a networked system all control units will be checked.
Note: No password / access code is required to log on to the Control Unit, instead an
EBLWin 5094 key is required.
SSD Download procedures:
1. Connect the PC to the USB port (type "B") in one of the Control Units.
2. Start EBLWin and open the required project.
3. Log on to the Control Unit via the PC (EBLWin).
4. In EBLWin, go to Tools menu / Download SSD… Select the control unit as well
as the Display Units (if fitted) or the web server (if fitted), to which the SSD is to
be downloaded.
5. Click Start to start the download.
The progress bar will indicate the download
progress as shown below.
6. "Control unit download count" / "Document download count" numbers should
match. See version control for SSD download above.
The download is not completed until the following box is shown:
