Brother BAS-311E - Magnified Input

Programmer
27

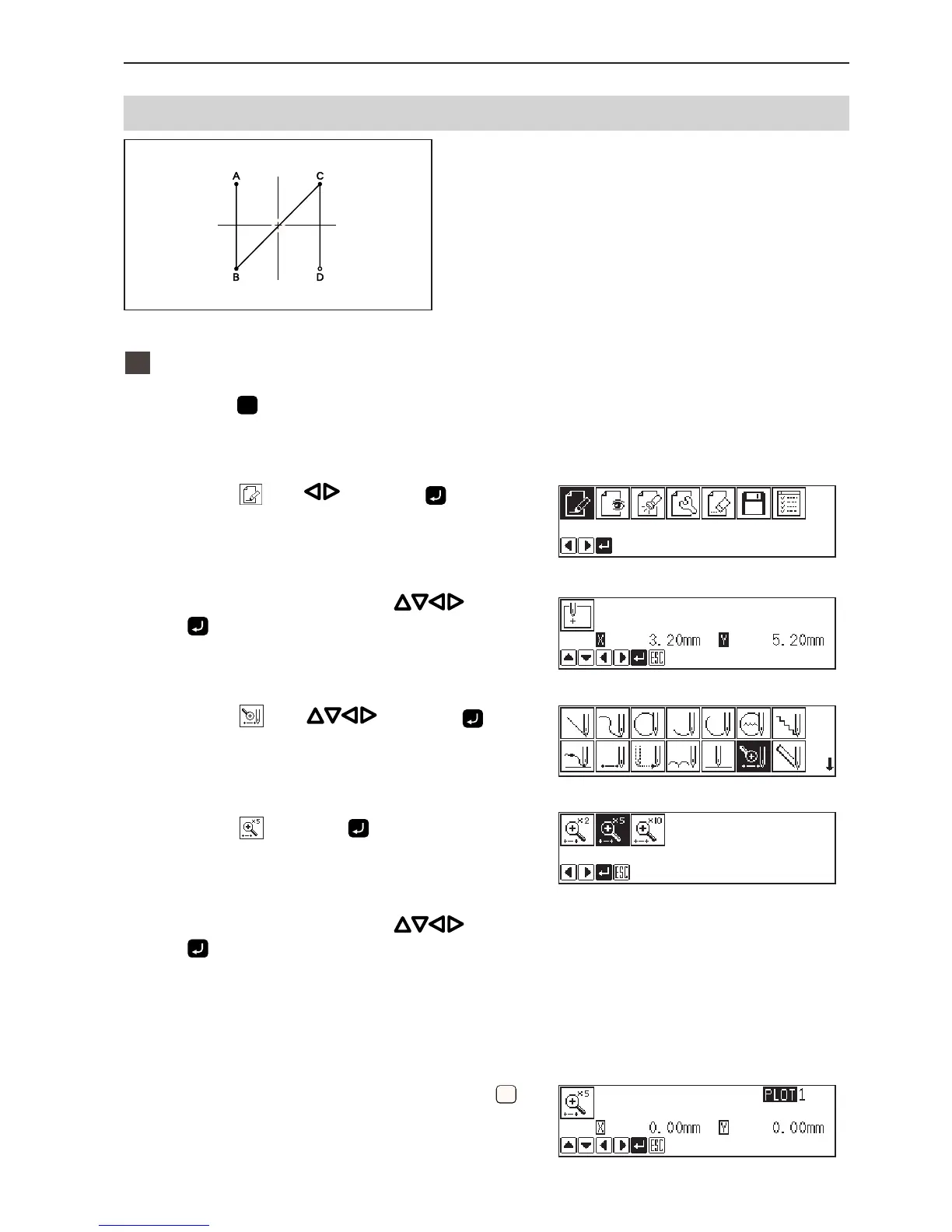

Chapter 2 Programming with Help Function
Magnified input
To program a detailed pattern for each stitch, use a
magnified input. The example in the left is used for
explanation of programming the pattern to the
magnification of 5.
1
Programming
1. Press
P
.
The work clamp moves to the home position and the
programmerscreenisdisplayed.
2. Select with and press .
3. Move the work clamp with
. Press
when the needle point is at point A of the
pattern.
Thefirststitch (pointA) isprogrammed.
4. Select with and press .
5. Select
and press .
6. Move the work clamp with
. Press
when the needle point is at point B of the
pattern.
7. Repeat step 6 and create the program to
point D.
8. When point D is programmed, press

ESCESC
twice.
