Chapter 2 Programming with Help Function
Example of modified program
This section describes the modification method of the program using examples. Refer to "Programming"
(page 83) or "Checking the program setting and setting attribute" (page 107) for function and operation of
each icon.
Resizing pattern

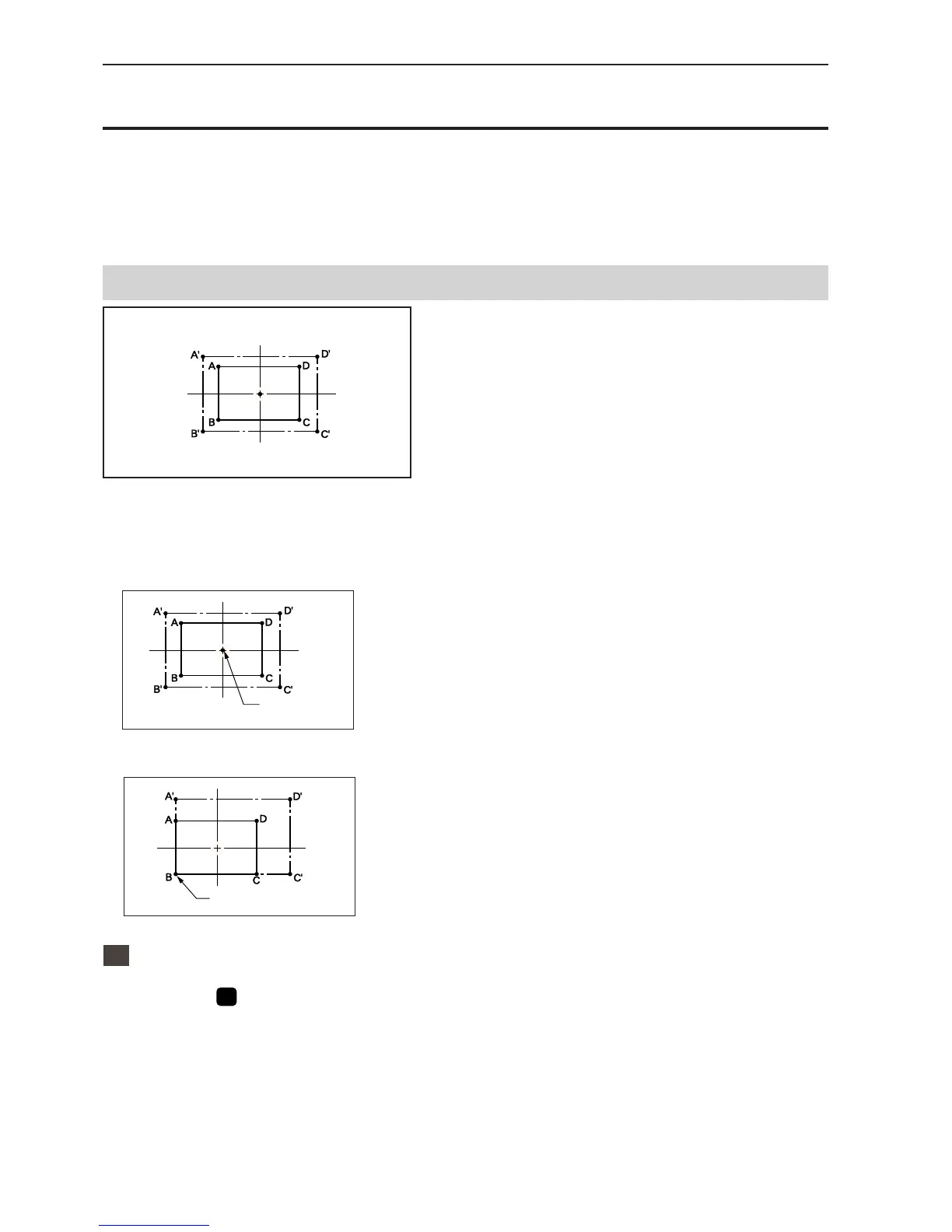

The programmed pattern is resized. The example in
the left is used for explanation.
The center point (reference point) of resizing can be changed. The magnifying direction varies depending on the
position of the reference point.
If the reference point is not determined, the pattern is resized to the home position.
If the reference point is determined, the pattern is resized to the reference point.
1
Calling data
1. Press
P
.
The work clamp moves to the home position. The programmer
screen is displayed.
Reference point
(Home position)
Reference point
