Chapter 2 Programming with Help Function

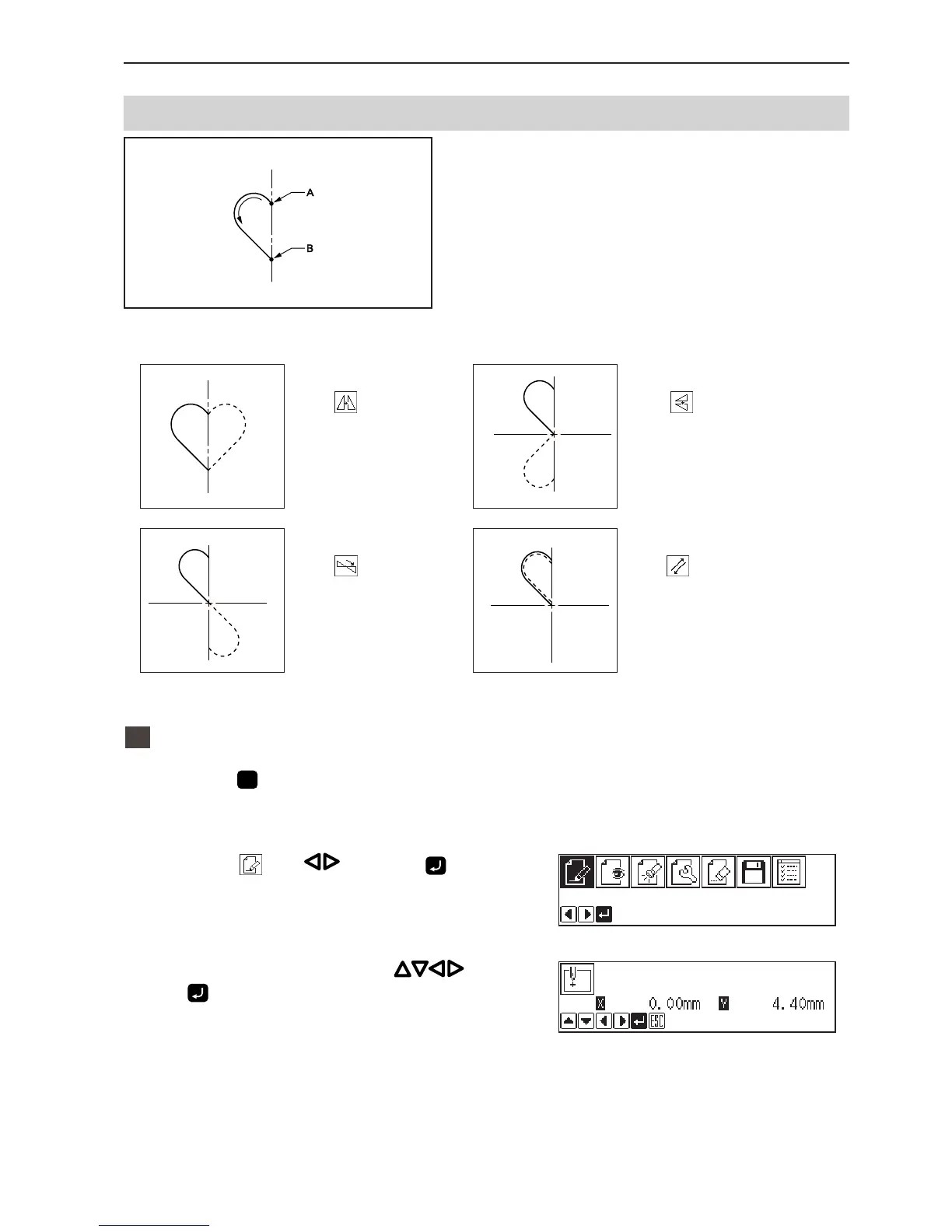

Symmetrical pattern
A pattern symmetric to the X axis or the Y axis is
programmed. After programming the pattern, select
the symmetrical pattern type to complete the pattern.
The example in the left is used for explanation of
programming symmetric to the Y axis.
The following symmetrical pattern types are available:
1
Programming
1. Press
P
.
The work clamp moves to the home position and the
programmer screen is displayed.
2. Select with and press .
3. Move the work clamp with . Press
when the needle point is at point A of the
pattern.
The first stitch (point A) is programmed.
4. Create the program to point B.
Symmetric to point
Select
.
Turnover
Select
.
Symmetric to Y axis
Select
.
Symmetric to X axis
Select .
