(15) Connect the two Connectors into the Main PCB.
(16) Connect the two Connectors into Driver PCB.
(17) Secure the ADF FG harness and FB FG harness with the two cup S M3x6 Taptite
screws.

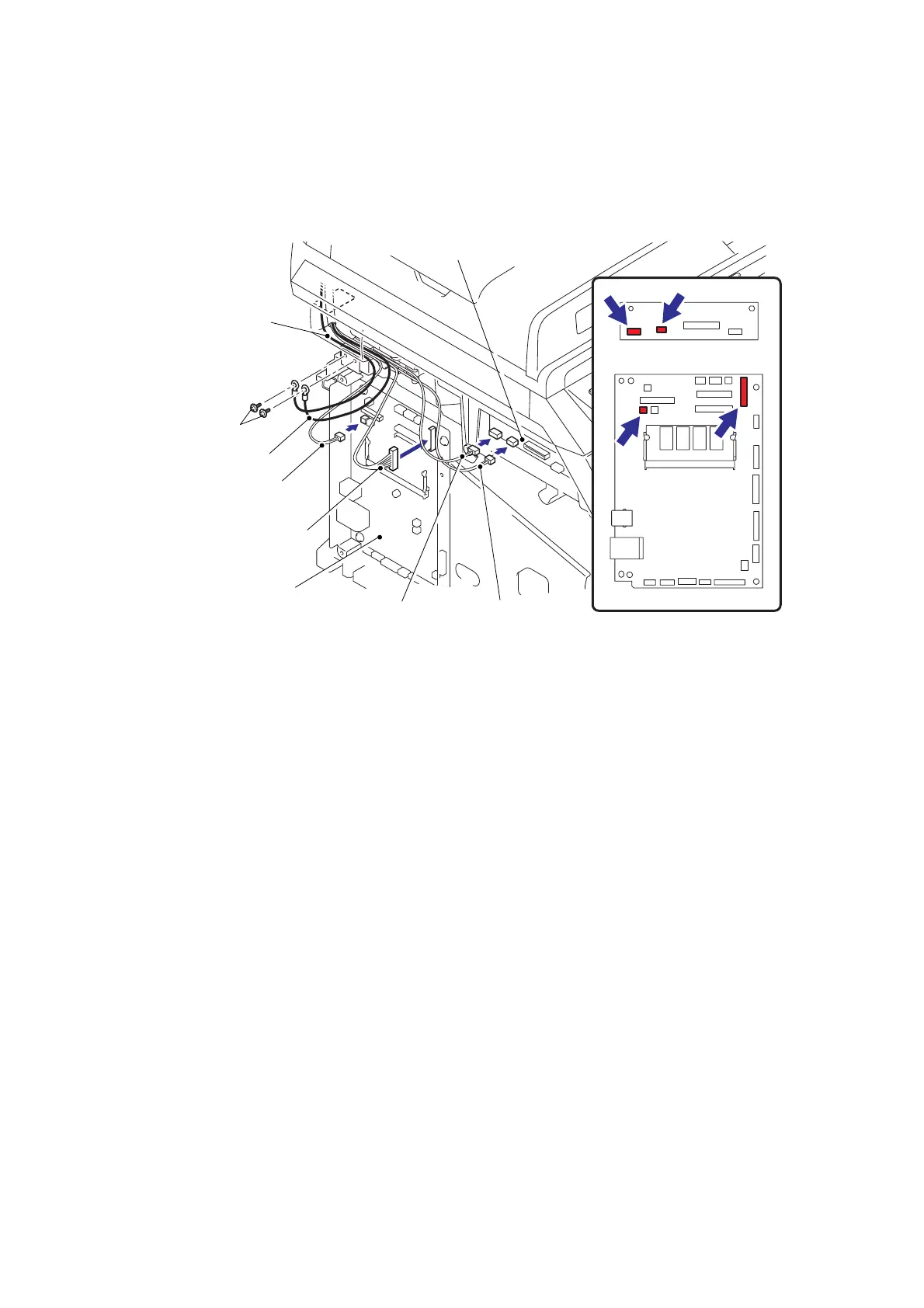

Fig. 4-76
Driver PCB
Driver PCB
Document eject
sensor harness
FB FG harness
ADF FG harness
FB cover sensor harness
ADF relay harness
Main PCB
ADF motor harness
Main PCB
Taptite cup S M3x6
