Brother MFC-8380DN - Page 229

4-50
Confidential

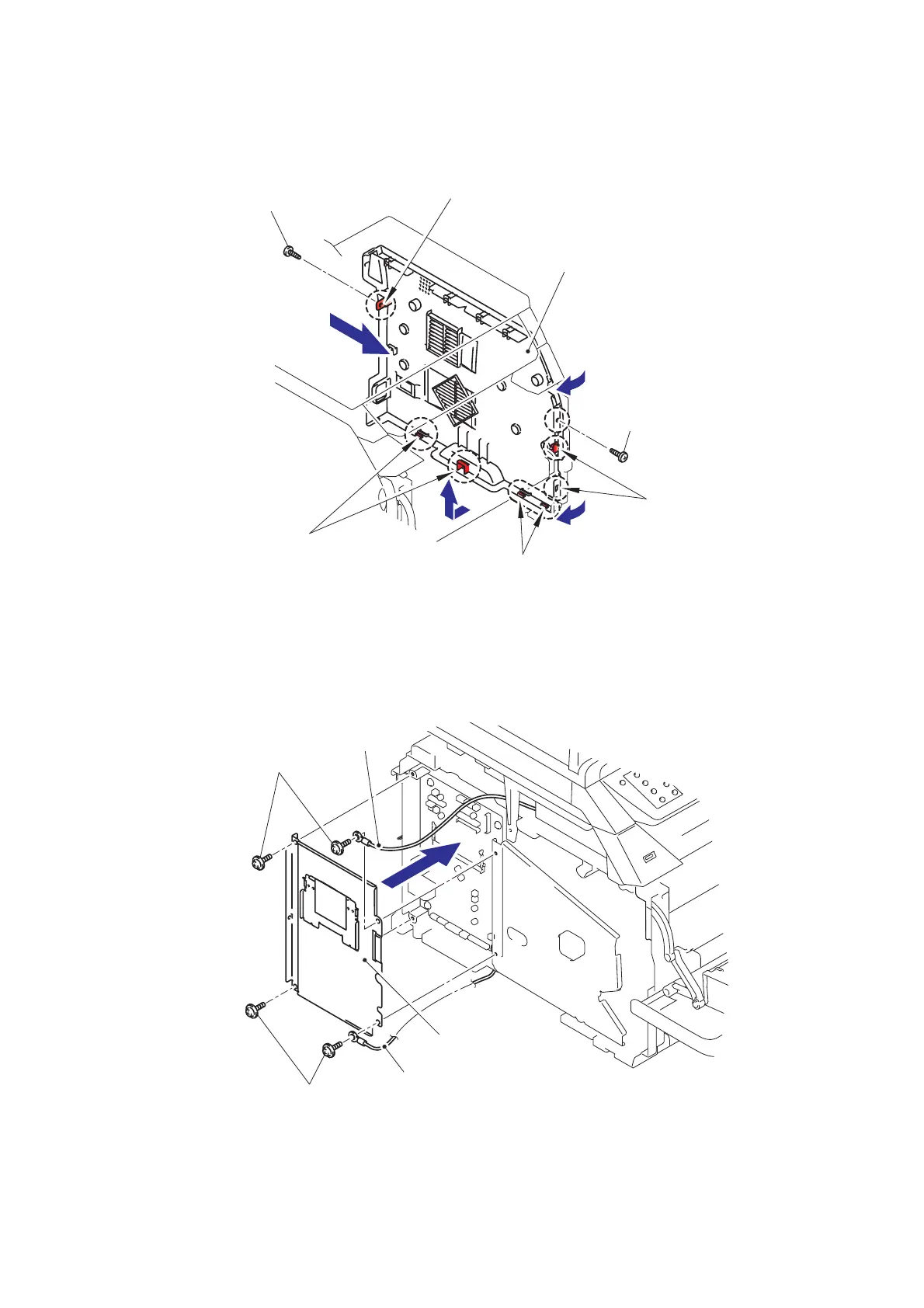

(22) Catch the Hooks in the order of the arrows and secure the Side cover R with the two
bind B M4x12 Taptite screws.
Fig. 4-79
(23) Secure the Shield cover ASSY and two FG harnesses with the four cup S M3x6SR
Taptite screws.
Fig. 4-80
22d
22c
22b
22a
Taptite bind B M4x12
Hook
Hooks
Hooks
Side cover R
Hooks
Taptite bind B M4x12
Taptite cup S M3x6SR
Taptite cup S M3x6SR
FG harness
FG harness
Shield cover ASSY
