(3) Remove the Screw pan (S/P washer) M3.5x6, and remove the NCU FG harness ASSY.
(4) Remove the two bind B M4x12 Taptite screws, and remove the NCU shield from the
Joint cover ASSY.

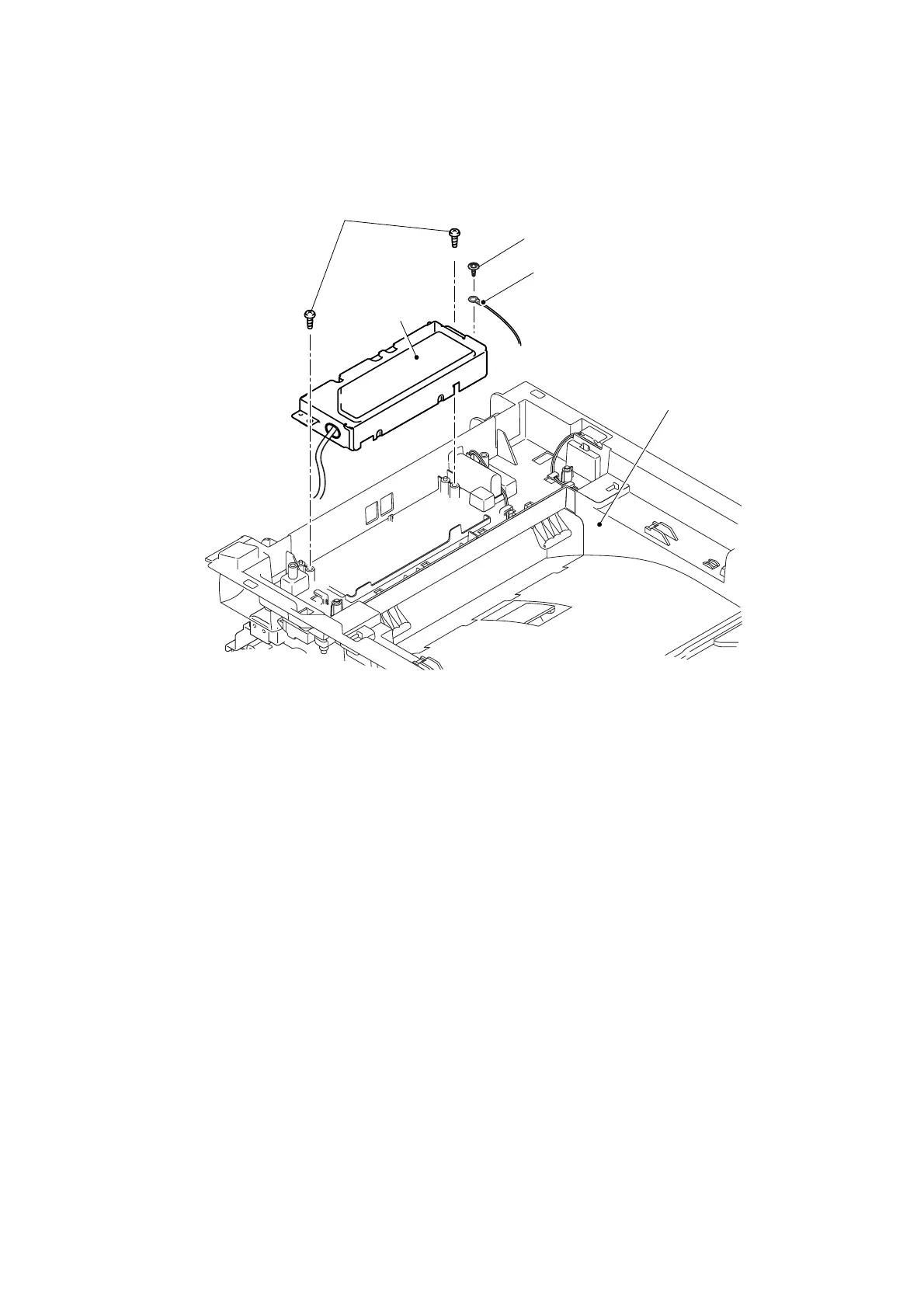

Fig. 5-186
Screw pan (S/P washer) M3.5x6
Taptite bind B M4x12
NCU shield
Joint cover ASSY
NCU FG harness ASSY
