5-6 Using Vision64

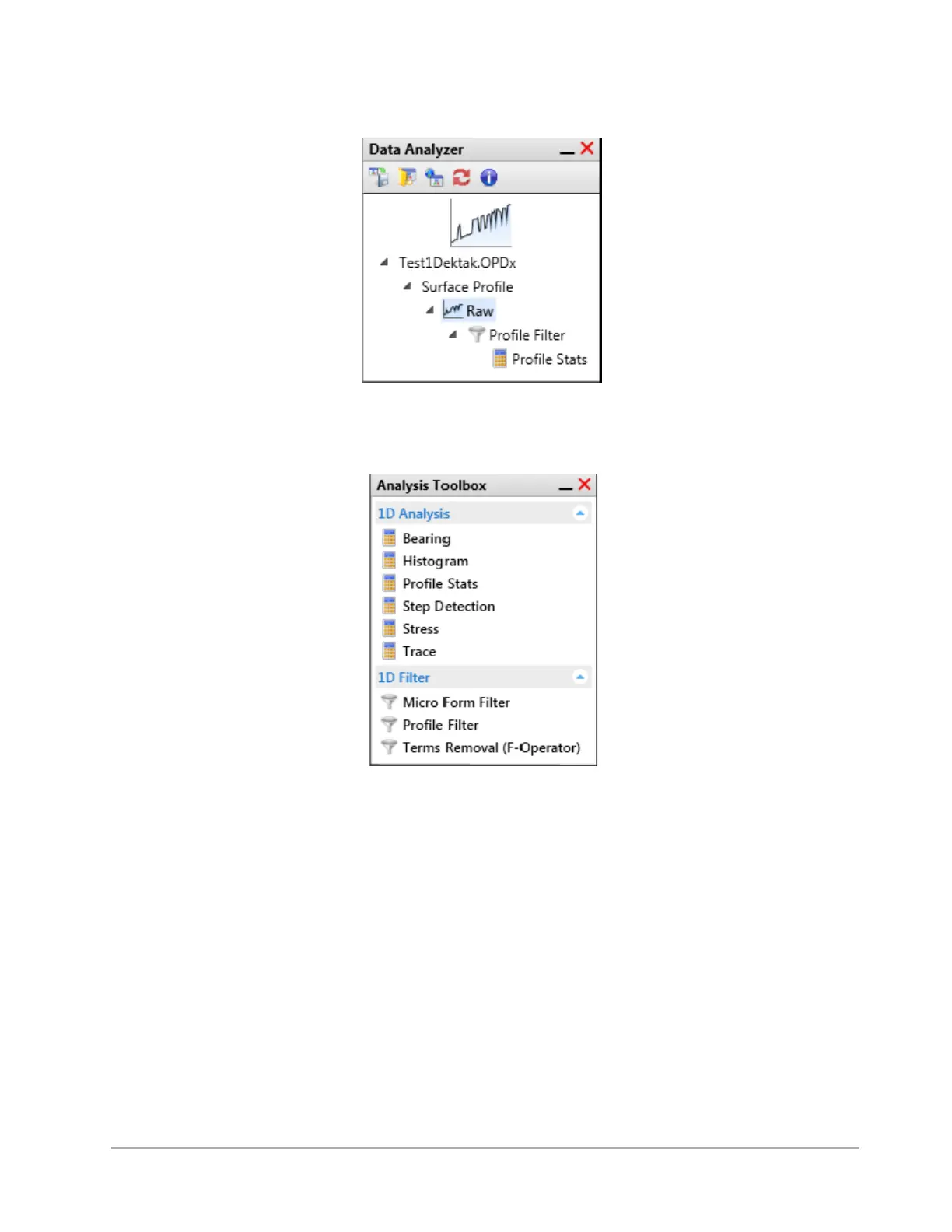

Figure 5-8: Data Analyzer
Figure 5-9: Analysis Toolbox
DISPLAYING OTHER VISION64 WINDOWS
In addition to the four Vision Views, you can display the following items:
• The Live Video Display that gives you a live view of your sample and the stylus (see
Figure 5-10).
• The Instrument Control Panel that allows you to control the DektakXT profiler (see
Figure 5-11).
• The Active Gallery Display that simultaneously displays thumbnail views of all active datasets.
It appears below the Data Analysis Vision View (see Figure 5-12).
• The Database Display that shows statistical analysis results in a comma-separated variable file
(see Figure 5-13).
