4-16 Taking Measurements and Analyzing Data
APPLYING SOFTWARE LEVELING
Software leveling allows the system to quickly and automatically level the profile trace. You must
software level the stage in order to obtain accurate step height measurements and accurate readings
from analytical functions. Software leveling sets the reference and measurement cursors at zero to
establish a reference for measurements.
To software level a trace from a live measurement in the Data Analysis window:
1 Click Terms Removal (F-Operator) in the Analysis Toolbox (see Figure 4-20) to add it to the Data
Analyzer tree (see Figure 4-21).

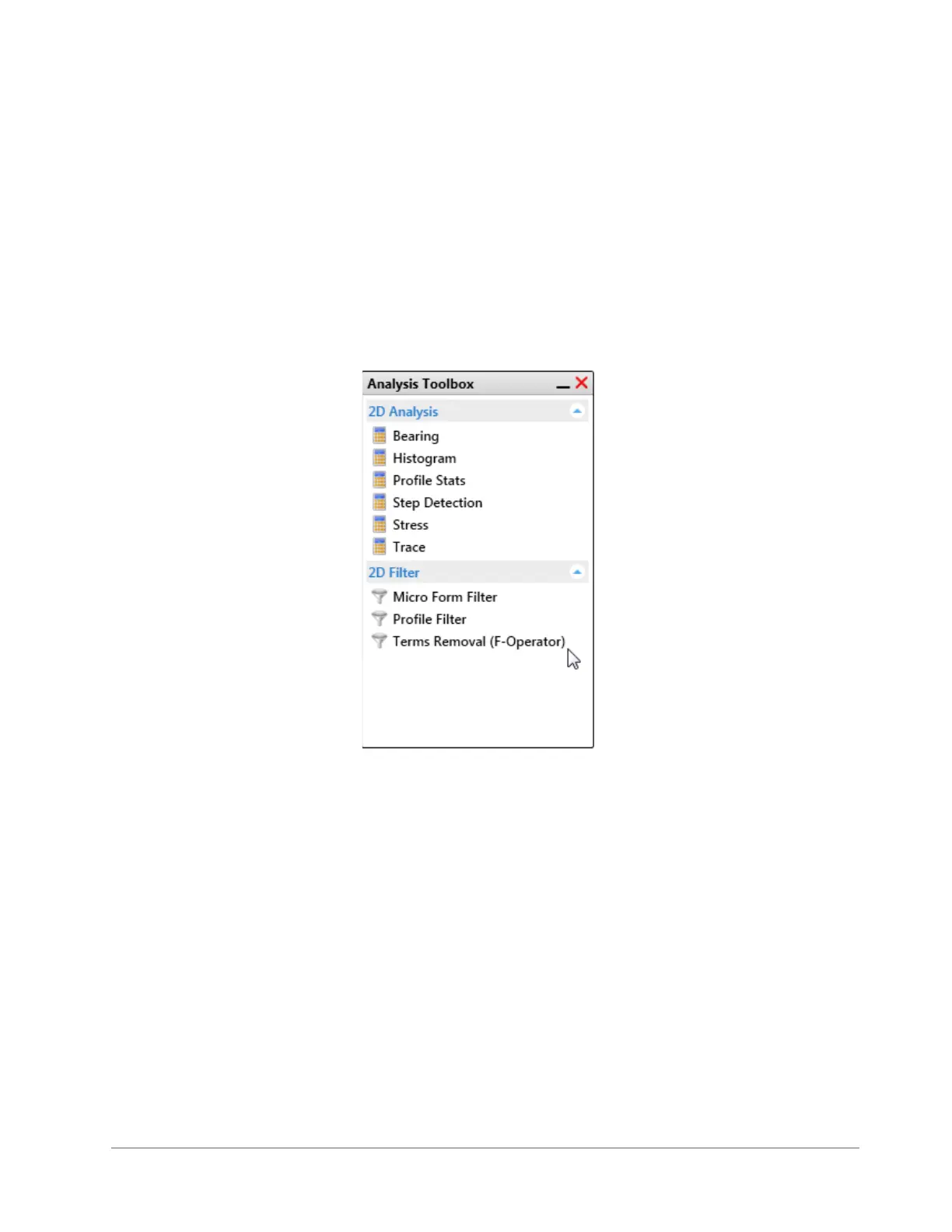

Figure 4-20: Terms Removal (F-Operator) in the Analysis Toolbox
