Basic Operations and Maintenance 3-13
b. Using tweezers, gently grip the silver magnetic disk pad at the back of the stylus and then lift the stylus
out of the channel on the stylus exchange tool.
c. Place the stylus in its protective case with the tip pointing downward through the hole in the film in the
lower part of the protective case (see Figure 3-20).

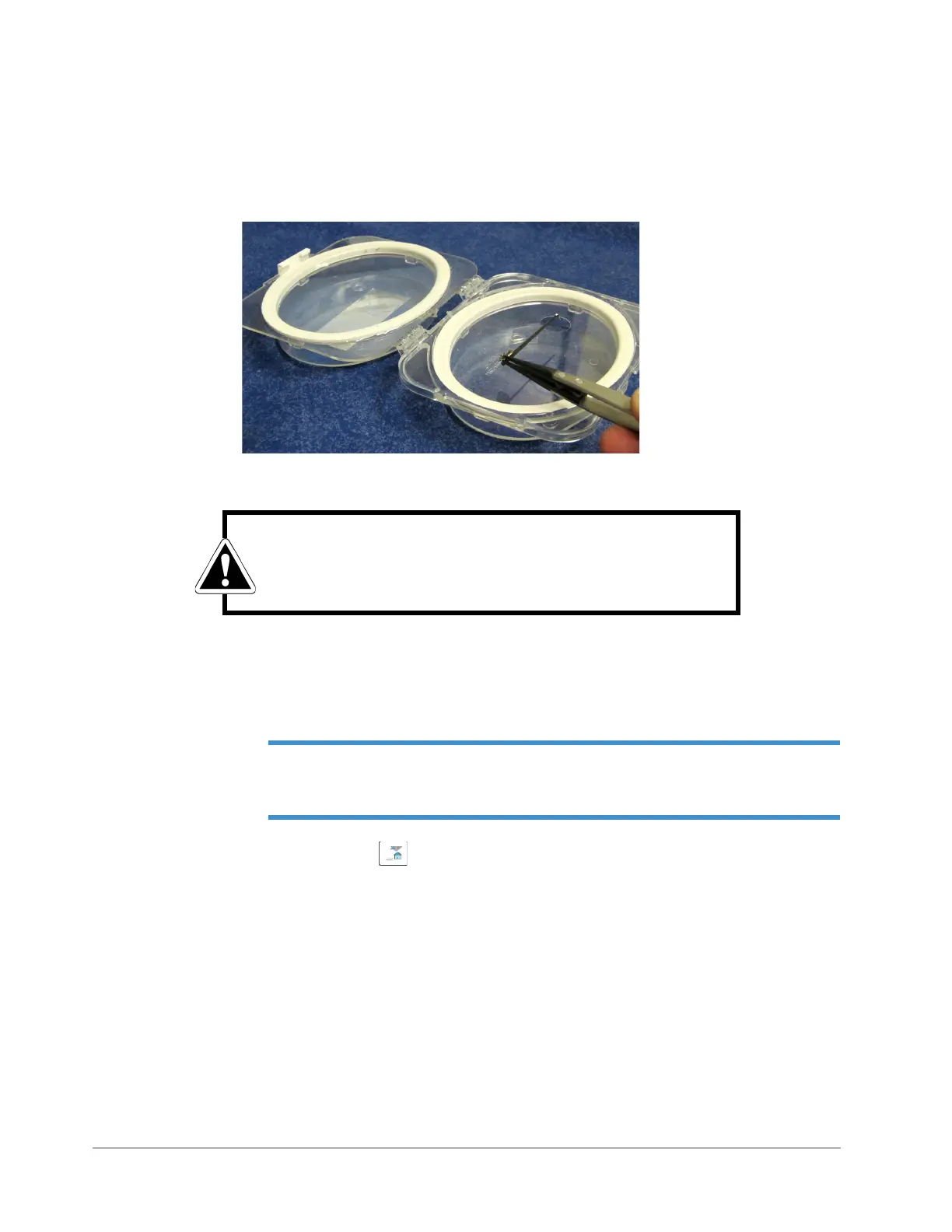

Figure 3-20: Inserting the Stylus Tip into the Hole in the Film in the Stylus Case
INSTALLING A DIFFERENT STYLUS
NOTE – The following instructions assume that you have already removed the magnetic
shield from the sensor head on the DektakXT profiler. If this is not the case, follow steps 4 - 6
in the previous section.
1 Tower up to the Home position
to allow room for maneuvering.
2 Locate the stylus exchange tool. If its green circle is visible, rotate the thumbscrew in either direction to
disengage the magnet and replace the green circle with a gray one. (This means that the magnet is NOT
engaged as shown in Figure 3-21.)
WARNING.
Always store the stylus in its protective case. Failure to do so can result in
damage to the stylus.
