3-14 Basic Operations and Maintenance

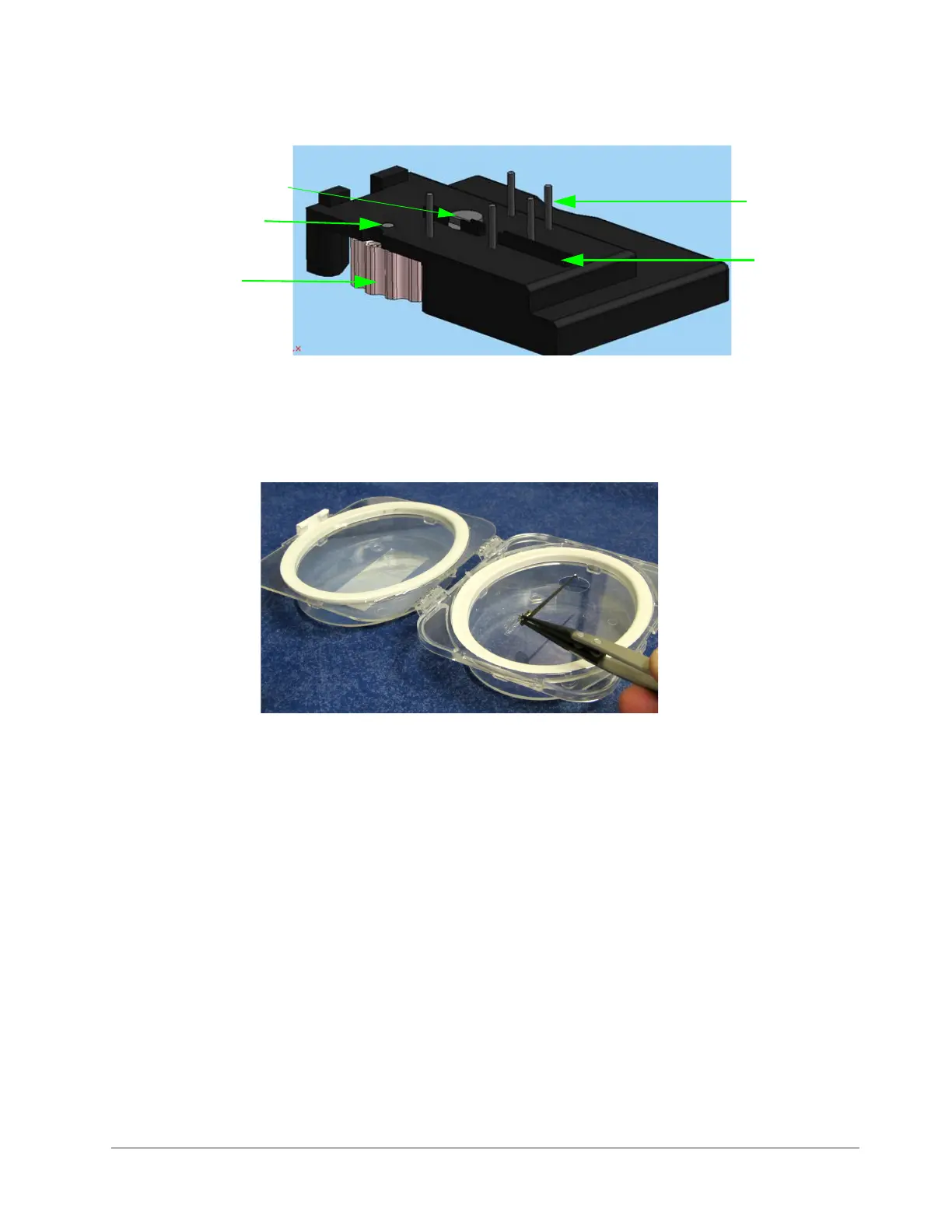

Figure 3-21: Stylus Exchange Tool with Its Magnet Disengaged
3 Locate the case that holds the stylus that you want to install. After opening the case, use tweezers to gently
lift the stylus holding ONLY THE SILVER MAGNETIC DISK PAD AT ITS BACK END (see Figure 3-22).
Figure 3-22: Lifting the Stylus from Its Case
4 Align the magnetic disk pad of the stylus with the magnetic disk pad on the stylus exchange tool (see
Figure 3-21).
5 Seat the stylus in the channel on the exchange tool. The stylus arm should extend out through the front
channel on the exchange tool (see Figure 3-23)l.
Alignment pin
(one of five)
Magnetic disk pad
Channel for
holding the
stylus
Gray circle that
indicates that the
magnet is disengaged
Thumbscrew
