3-12 Basic Operations and Maintenance
7 Rotate the thumbscrew on the stylus exchange tool so that a gray circle (NOT a green one) is visible and
the magnet is NOT engaged (see Figure 3-18).

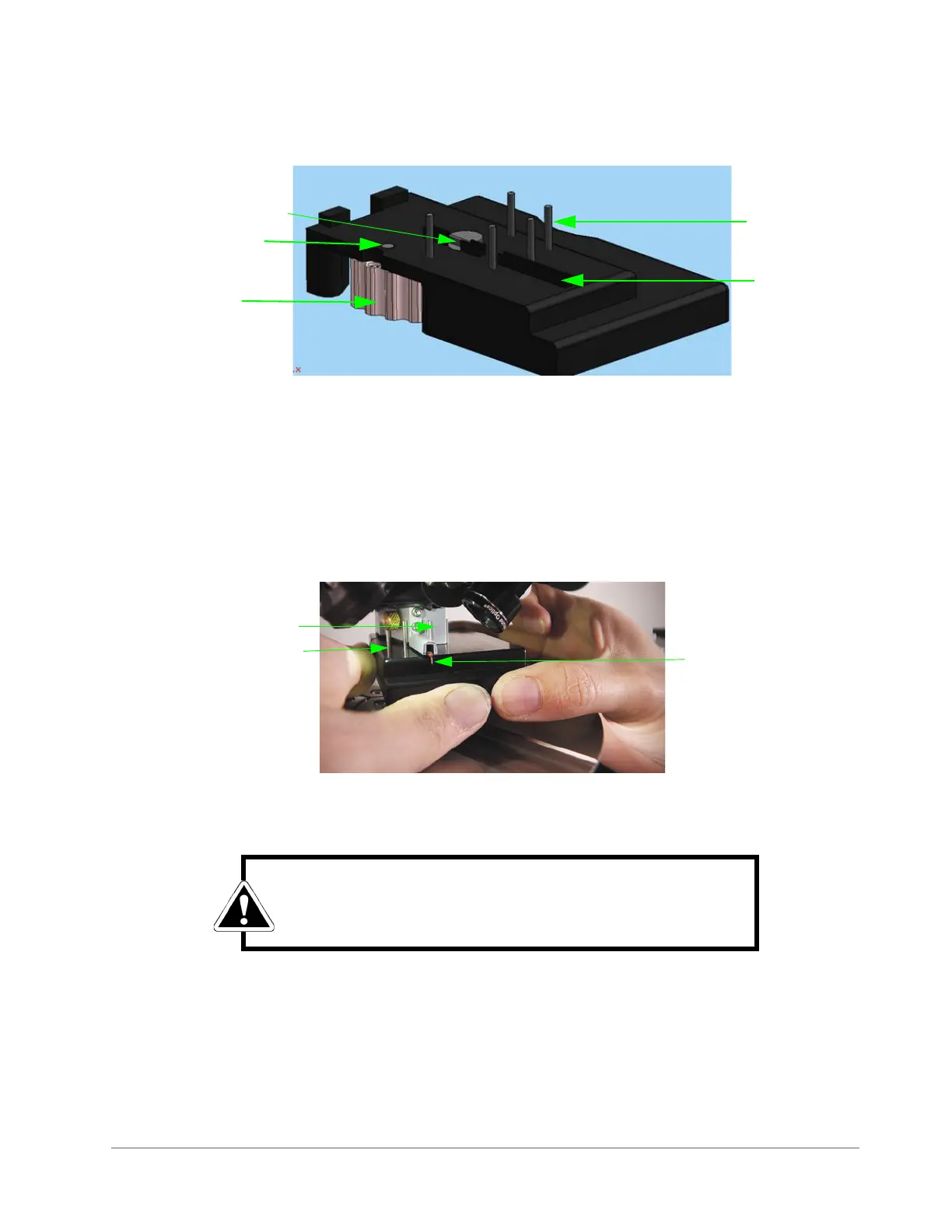

Figure 3-18: Stylus Exchange Tool with Its Magnet Disengaged
8 Position the stylus exchange tool beneath the sensor head (see Figure 3-19).
9 Holding the stylus exchange tool by its sides, align the alignment pins on its top with the outside of the front
of the sensor head (see Figure 3-19). Gently push up until the tool is flush with the bottom of the sensor
head. The ridge at the back of the stylus exchange tool must roughly line up with the back of the sensor
head. The stylus tip should extend out through the front of the channel on the exchange tool.
Figure 3-19: Stylus Exchange Tool Flush with the Bottom of the Sensor Head
10 Rotate the thumbscrew on the left side of the stylus exchange tool so that a green circle becomes visible
and the magnet is engaged. The magnet now pulls the stylus into the channel on the exchange tool (see
Figure 3-18). Lower the exchange tool containing the stylus from the bottom of the sensor head and take it
to the protective case in which the stylus was shipped (see Figure 3-15).
11 To remove the stylus from the stylus exchange tool:
a. Disengage the magnet on the exchange tool by rotating the thumb wheel in either direction so that a gray
circle replaces the green one.
Alignment pin
(one of five)
Magnetic disk pad
Channel for
holding the
stylus
Gray circle indicating
that the magnet is
disengaged
Thumbscrew
Sensor head
Stylus tip
Alignment pin
WARNING
Avoid any personal contact with the stylus arm or tip. This can result in
damage to the stylus.
