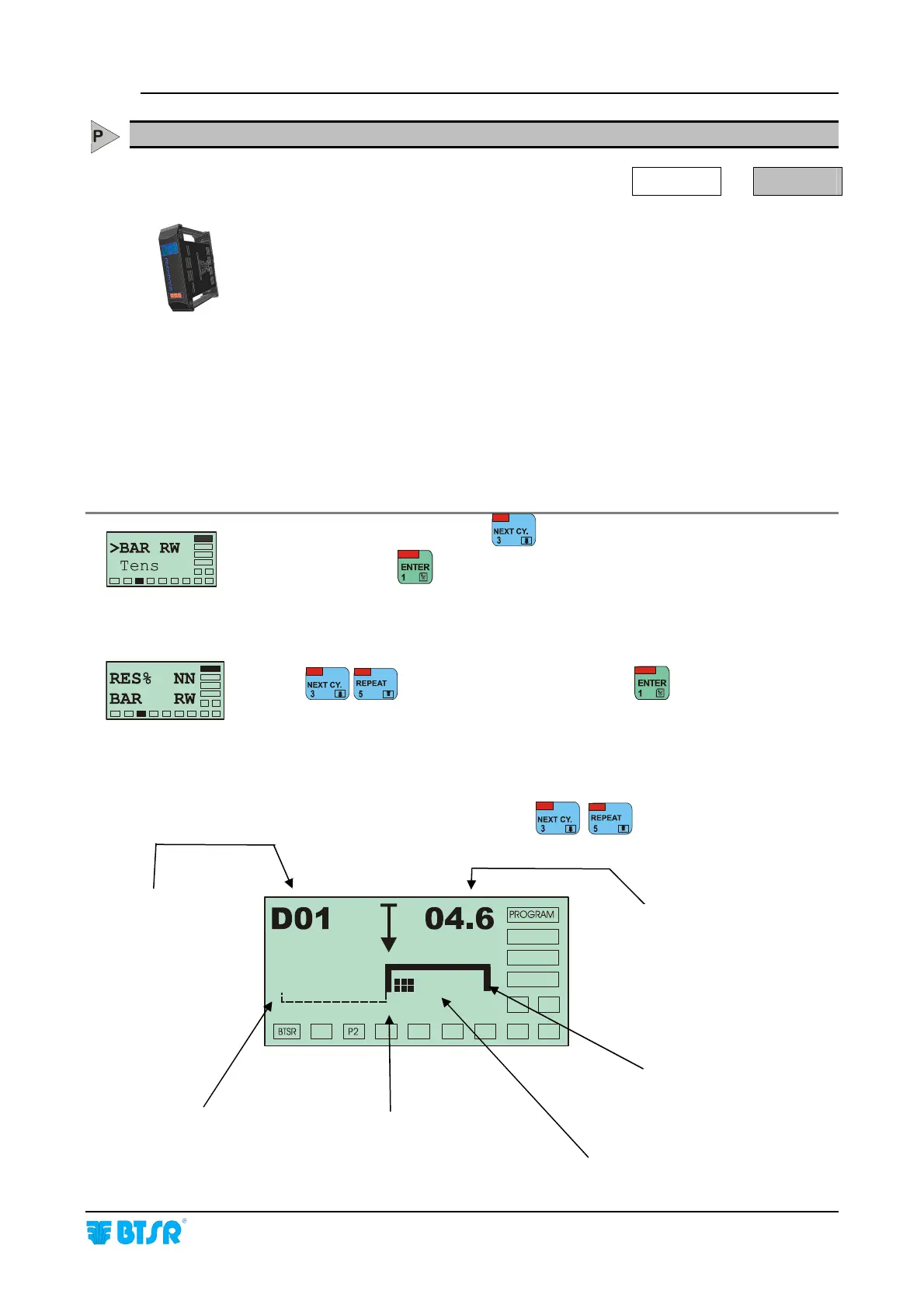

SMART KTF 2000 – KTF/RW Operation
SMART KTF 2000 3B-47 -
BAR RW - Displaying the Average Tension and Peak Tension
MEASUR
Bar RW
This function shows on display of SMART KTF 2000 terminal a graphic allowing
you to detect in real time the actual average tension and possible tension peaks
(positive and/or negative) with which every connected TS4/xxx/RW sensor is
operating.
You can define a percentage resolution RES% (up to 10%) used to graphically
represent the tension variation (plus or minus) with respect to the rating working
tension (parameter P1.1).
The indication provided by this graphic is extremely useful during the installation
and commissioning phase of the devices, in order to check the correct positioning
and operation of the devices themselves.
The optimum operation occurs when only the central notch is displayed (without
positive and/or negative shifts and peaks).
Furthermore, it is possible to minitor both the working temperature and current of
each individual device.
From the MEASUR menu, press until the >Bar RW menu option is selected.
At this point, press
to access the function.
Set the resolution of the graphical visualisation (NN)
using
[allowed values 0.1 ÷ 100], press to activate the
graphical visualisation.
Example: MAIN TENSION (P1.1) = 04.0 grams
RES% = 5% (Selectable with
)
Tensione rilevata in
tempo reale dal
dispositivo 01
Max. Positive Peak
Max. Negative Peak
RATING MAIN
TENSION = 04.0
Detected Tension (15% over
the main tension )
SM-DIN/RW 01
Tension detected in real time by
device 01.
