SMART KTF 2000 – KTF/100HP Operation
SMART KTF 2000 3A-11 -

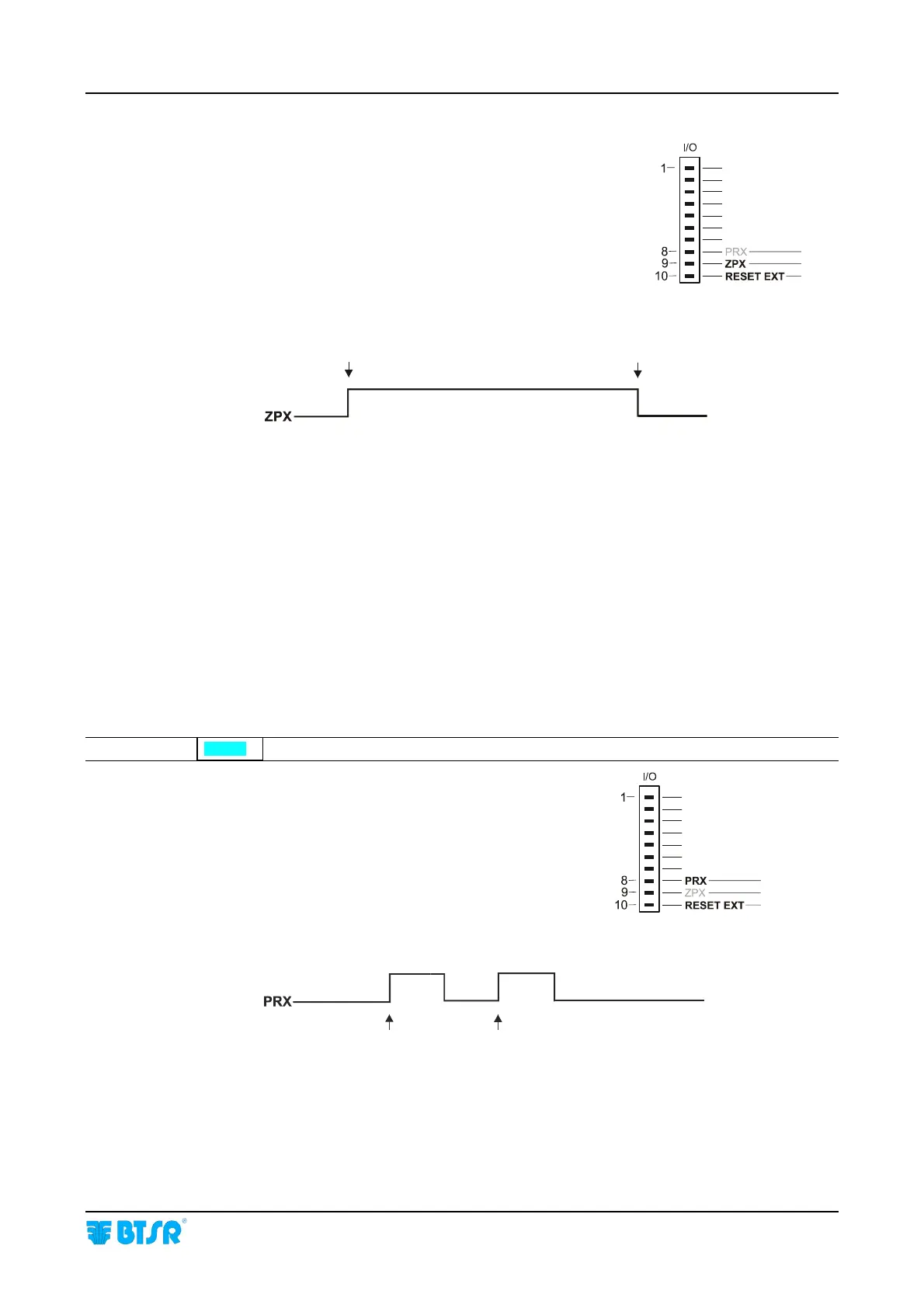

2) Machine hardware setting
in Stop at End of Cycle mode
- PRX – Proximity not necessary
- ZPX – Start/End Cycle Signal
- RESET EXT – Reset of alarm condition without
operating on terminal
System software settings
Menu CONTROL  TOLL : Set the Control Tolerances
Operating Procedures in case of Immediate Stop mode
4) – From CONTROL environment perform the “LEARN” function – Length of
Absorbed Yarn (LFA).
5) – At the end of the Learn phase the system switches to CONTROL mode and,
upon the PRX pulse it will compare the previously “Learnt” value with the
“currently detected” value.
1) – If the difference between the “Learnt” LFA value and the “detected” LFA
value exceeds the tolerance, the machine will be stopped.
Application
Machine hardware setting
- PRX – Proximity detecting the number of revolutions.
You will have to install a number of magnets (PRX)
equivalent to the number of controls/revolution
you want to carry out
- ZPX – Not necessary
- RESET EXT – Reset of alarm condition without
operating on terminal
System software settings
Menu SETUP  SYSTEM : Set FEED = Number of machine drops
Set PRX/R = Number of installed Magnets
(PRX)
C-KNIT
Cycle Start
Reset Counters
Cycle End
Counter reading and comparison
between Lea
r
nt Value and Detected Value
Signal Requested
Counter reading and comparison
between Learnt Value and Detected
Value
Signal Requested
