3.2.5 Lower connections on the rear side
1
2
4
5
7
3
6
8
9
10
11
12

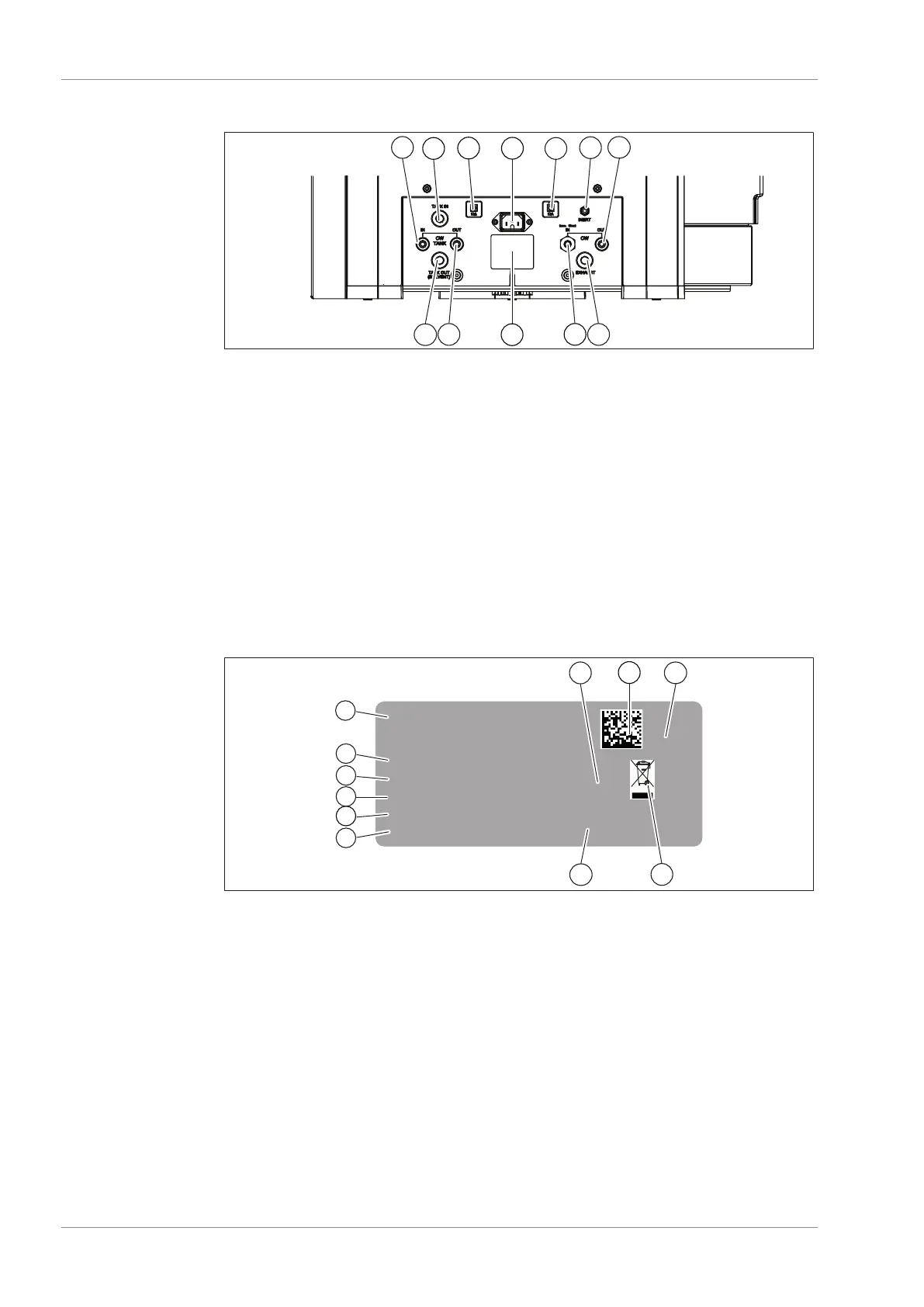

Fig.6: Connections on the buttom
1 Coolant water solvent tank in 2 Solvent in
3 Fuse 4 Power supply connection
5 Fuse 6 Inert gas connection
(option)
7 Coolant water out 8 Exhaust
9 Coolant water in 10 Type plate
11 Coolant water solvent tank out 12 Solvent out
3.3 Type plate
The type plate identifies the instrument. The type plate is located at the rear of the in-
strument.
Buchi Labortechnik AG
9230 Flawil / Switzerland
Type: xxx
SN: 10xxxxxxxx
Volt: xxx-xxx VAC
Freq.: xx Hz
Power: xxxxW
Built 20xx
6
7
8
11
9
10
3
2
1
5
4
Fig.7: Type plate
1 Symbol for "electronics recycling" 2 Initial product code
3 Approvals 4 Symbol for "Do not dispose of as
household waste"
5 Year of manufacture 6 Power consumption maximum
7 Frequency 8 Input voltage range
9 Serial number 10 Instrument name
11 Company name and address
