NOTICE
Risk of property damage and diminished performance due to use of un-
suitable power cables.
The power supply cables supplied with the product by BUCHI precisely match the re-
quirements of the device. If other power cables that do not meet those requirements
are used, the device may be damaged and/or its performance diminished.
u Use only the power supply cables supplied with the product or ordered separately
from BUCHI.
u If using any other power supply cables, make sure that they match the specifica-
tions on the type plate.
u Make sure that all connected devices are earthed.
u If an extension lead is required, make sure that it is earthed and has a suitable
power rating.
u Make sure that the power plug is freely accessible at all times.
u Plug the power cable into the connection labelled Power IN on the back of the in-
strument.
u Plug the mains plug into the power socket.
5.4 Securing against earthquakes
The instrument has an earthquake fixing point to protect the device against falling.
1

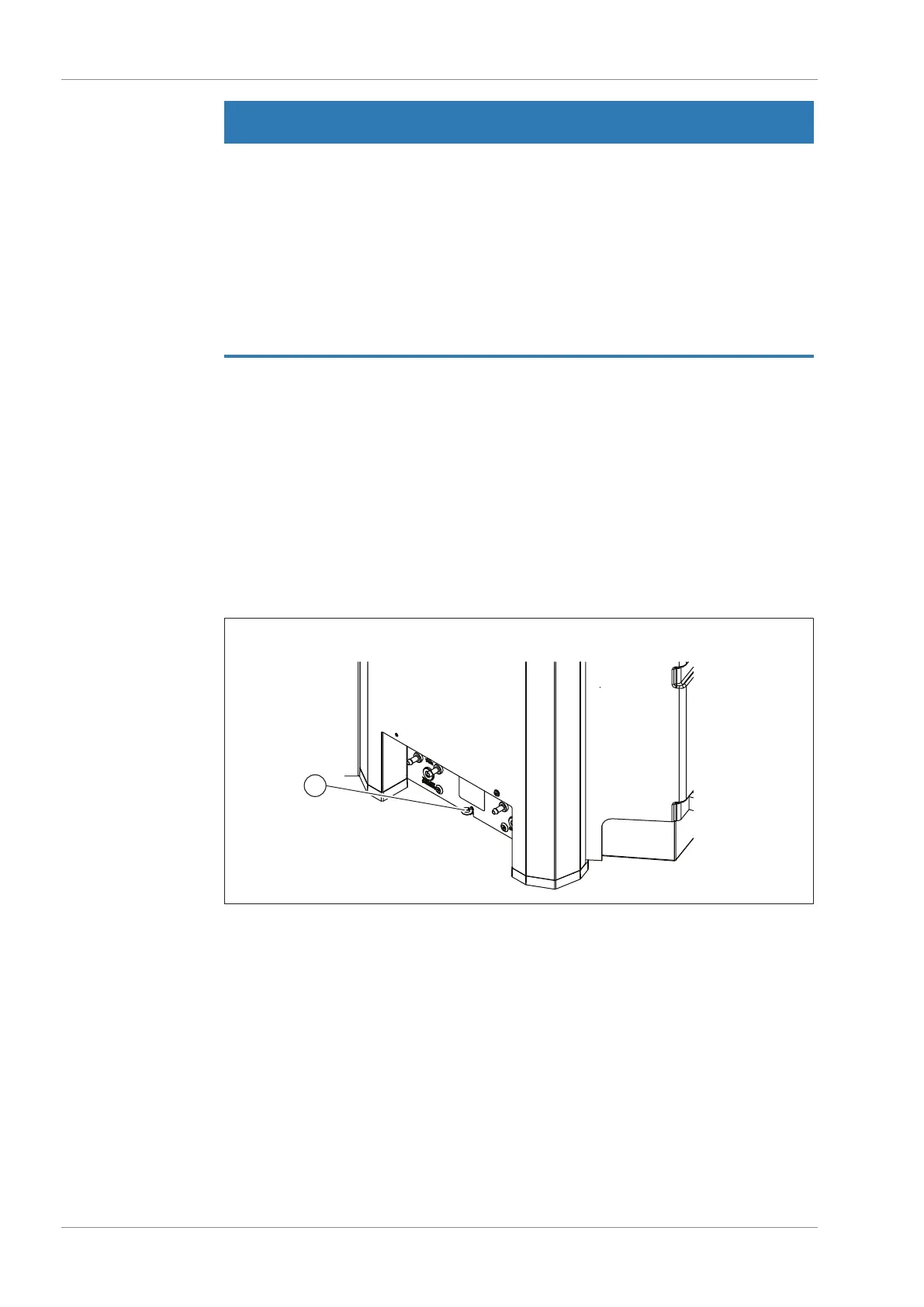

Fig.9: Securing against earthquakes
1 Lashing mount
u Tie the lashing mount to a fixed point using strong cord or a wire.
5.5 Connecting the coolant hose
There are two possibilities for coolant supply:
 Cooling water valve Order no. 031356
 BUCHI Recirculating Chiller F-305 or F-308
