BÜCHI Labortechnik AG Installation | 5
Operation Manual UniversalExtractor E-800 27/88
R The coolant connection complies with the
specified parameters. See Chapter3.5 "Tech-
nical data", page21
R Make sure that the instrument is not con-
nected to the power supply.

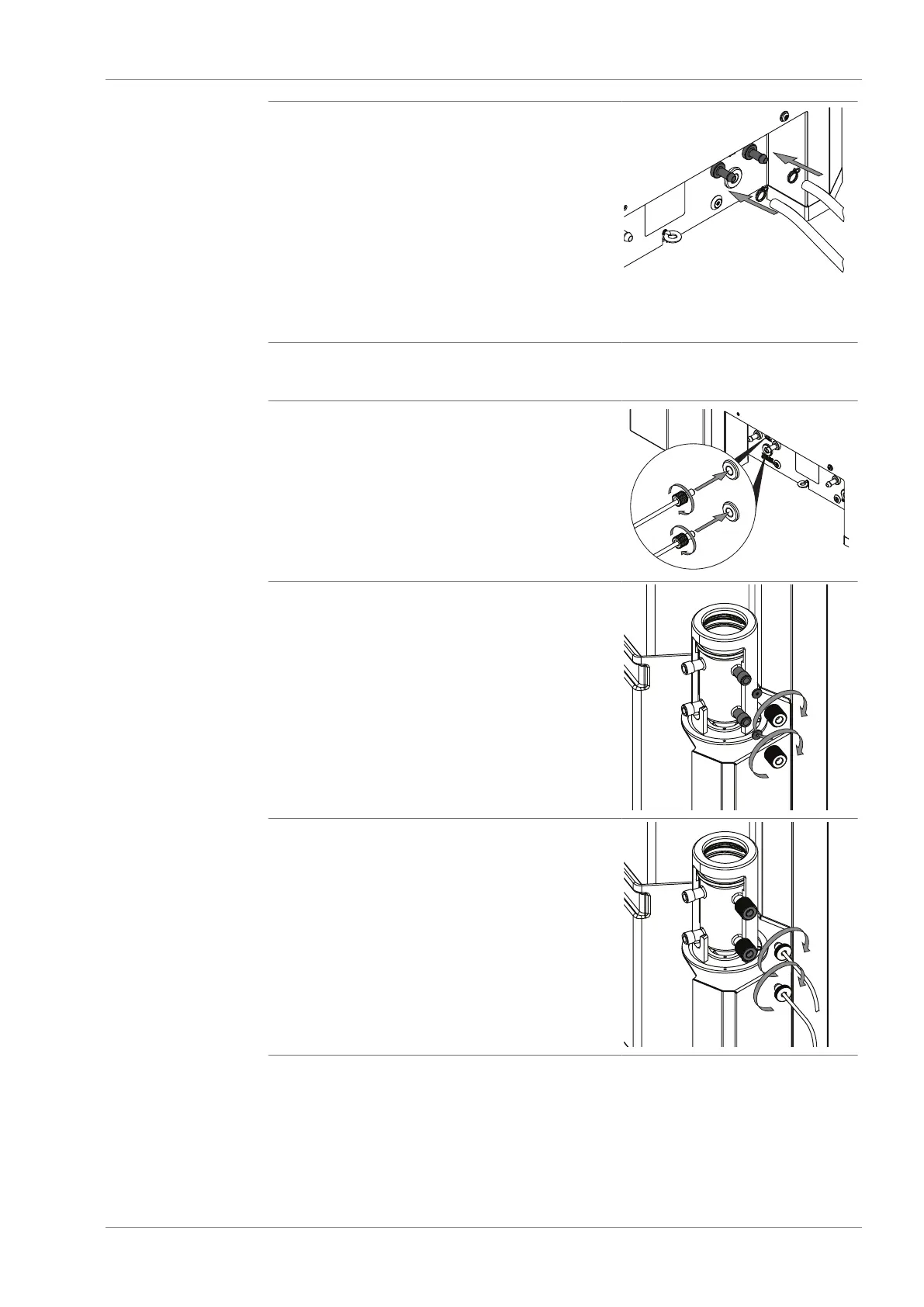

u Install the inlet tube onto the connection
marked CW IN.
u Attach the inlet tube in place with a hose clip.
u Install the drain tube onto the connection
marked CW OUT.
u Attach the drain tube in place with a hose clip.
5.6 Connecting the solvent tubes to the condenser tank bottle
R Make sure that the instrument is not con-
nected to the power supply.
u Attach the inlet tube onto the connection
marked TANK IN.
u Attach the drain tube onto the connection
marked TANK OUT (SOLVENT).
u Attach the solvent connection nuts onto the
connection marked OUT and IN (SOLVENT) .
u Attach the inlet tube onto the connection
marked OUT .
u Attach the drain tube onto the connection
marked IN (SOLVENT) .
