Buchi E-800 - Draining Solvent from Extraction Glass Chamber (Soxhlet, Soxhlet Warm, Hot and Twisselmann Extraction Only); Replacing the Gliding Elements and Magnets

10 | Help with faults BÜCHI Labortechnik AG
76/88 Operation Manual UniversalExtractor E-800
10.2 Draining solvent from Extraction glass chamber (Soxhlet, Soxhlet
Warm, Hot and Twisselmann Extraction only)
Navigation path
➔ ➔ [ Service ] ➔ [ Actors ] ➔
[ Valves ]
Precondition:
R An extraction was aborted
R A beaker is placed under the extraction glass chamber position.
u Navigate to [ Valves ] via the navigation path.
ð The display shows the view Valves.
u Select the position of the drain valve you wish to open.
u Open the drain valve.
u Wait until the extraction glass chamber is empty.
u Close drain valve.

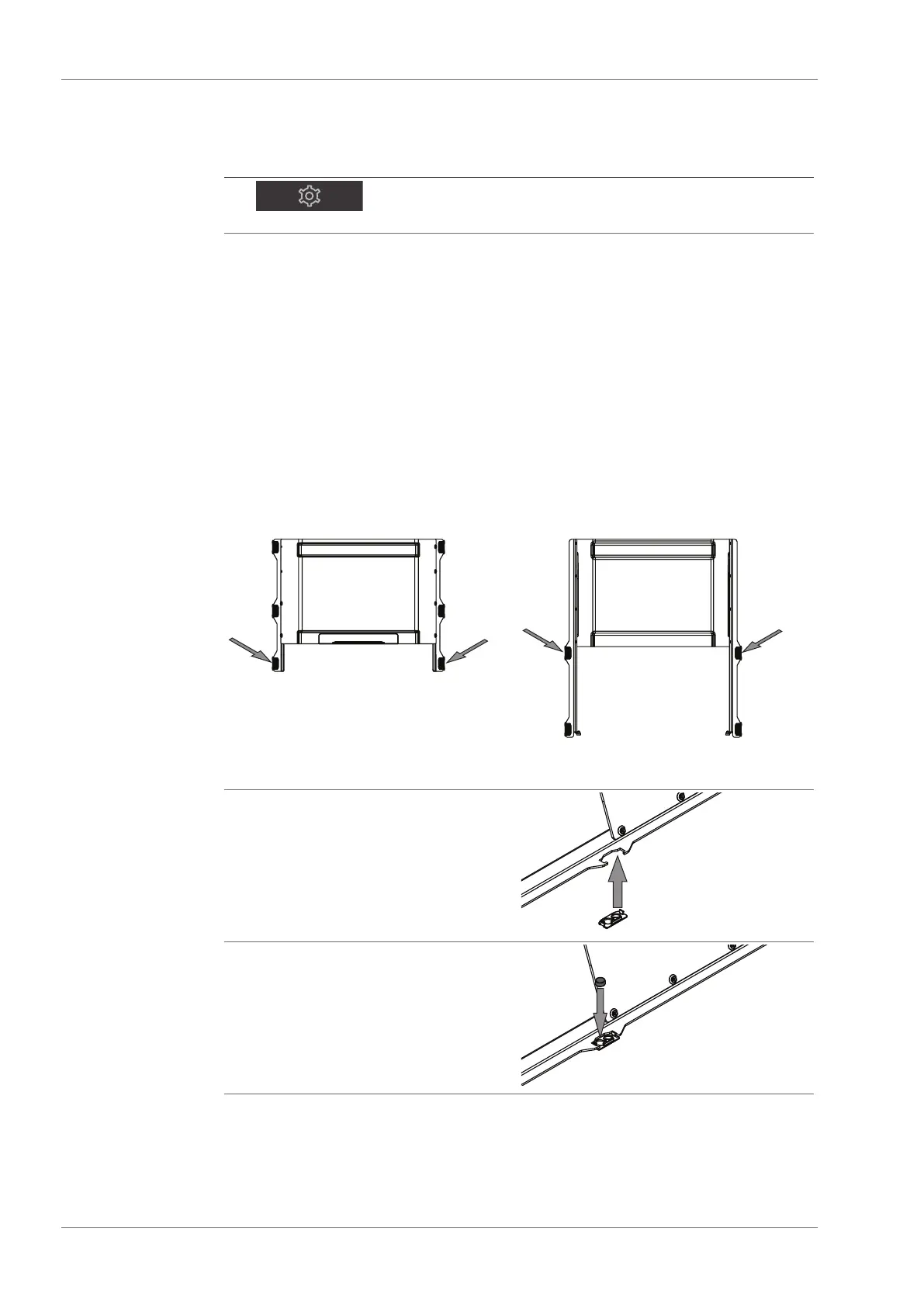

10.3 Replacing the gliding elements and magnets
Positions of the magnet
Replacing procedure
u Attach the back part of the gliding ele-
ments to the protection shield.
NOTICE!Insert the magnet at the po-
sitions indicated.
u Insert the magnet.
