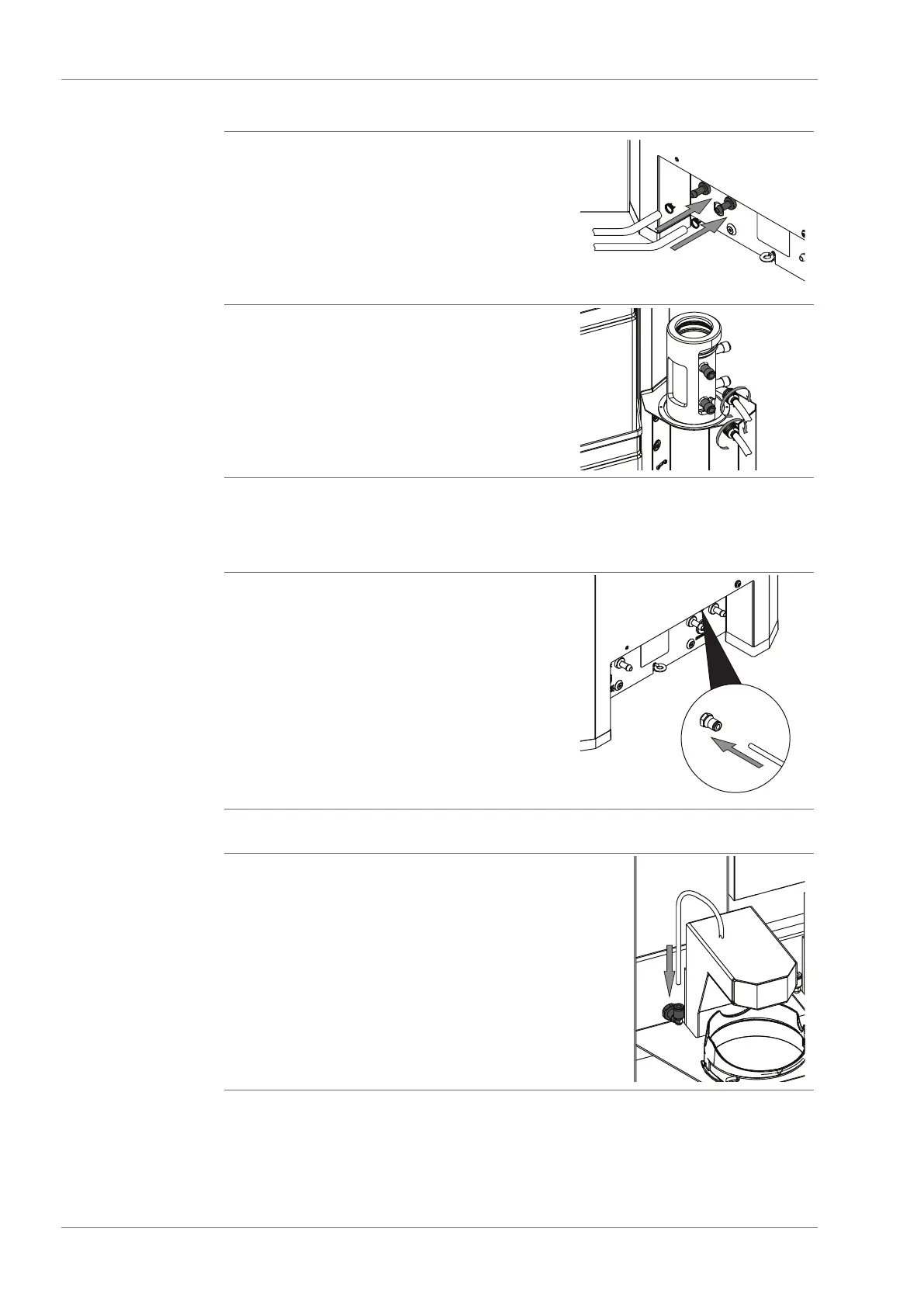

5.7 Connecting the coolant tubes to the condenser tank bottle
R Make sure that the instrument is not con-
nected to the power supply.
u Install the inlet tube onto the connection
marked CW TANK OUT.
u Attach the inlet tube in place with a hose clip.
u Install the drain tube onto the connection
marked CW TANK IN.
u Attach the drain tube in place with a hose clip.
u Attach the inlet tube onto the connection
marked CW IN .
u Attach the drain tube onto the connection
marked CW OUT.
5.8 Connecting inert gas (option)
5.8.1 Connecting inert gas to the instrument (option)
R Make sure that the instrument is not con-
nected to the power supply.
u Attach the inert gas tube onto the connection
marked INERT.
5.8.2 Connecting inert gas to the extraction glas chamber (option)
u Attach the inert gas tube onto the connection.
