Start-up

Type ME43

AdressmappingforCC-Link

CC-Link

Create a gateway conguration

gui.gateway.CC-Linkdata

gui.gateway.cclinkstationcycles

2 Station & Estension Cycle: SINGLE

Addressing

Automatic CC-Link addressing

NextAnnulerBack

Start

Reset device

Cyclic Name Index SubIndex Startadresse

EVA_POS 0x2540 0x01 0x000

EVA_NamurStatus 0x2541 0x01 0x00C

EVA_CMDdigital 0x2500 0x01 0x000

Device Status NamurNE107 0x2004 0x01 0x00D

Control Word 0x3C32 0x01 0x008

Fieldbus-specicdata

Automatic CC-Link addressing

Start: Perform automatic CC-Link addressing again

Resetdevice: Resets the values

Overview of CC-Link addressing

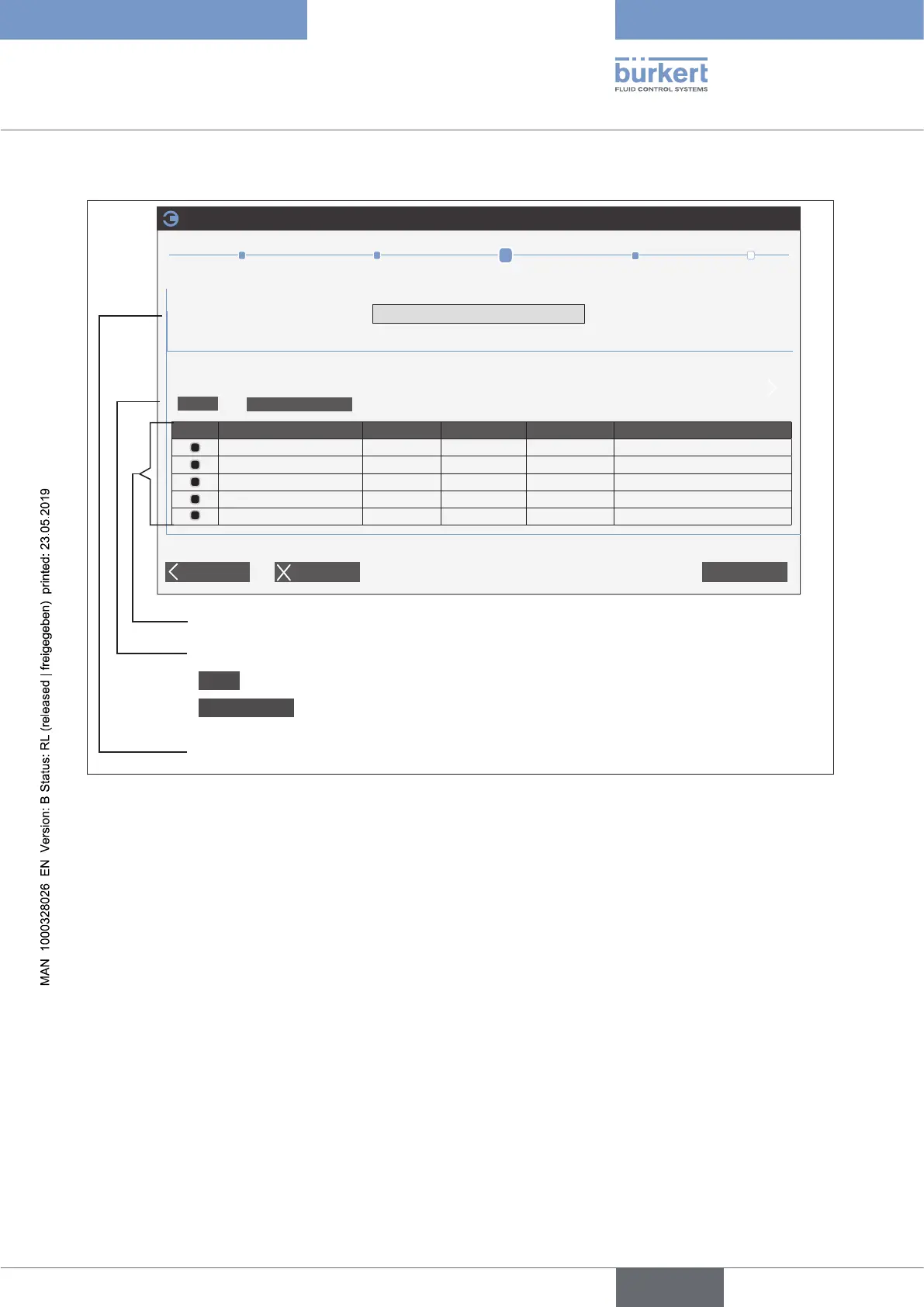

Figure 15: Gateway conguration; Adress mapping CC-Link
