Canon iR5000 - Page 366

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 5 PICK UP/FEEDING SYSTEM
5-67 P
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]

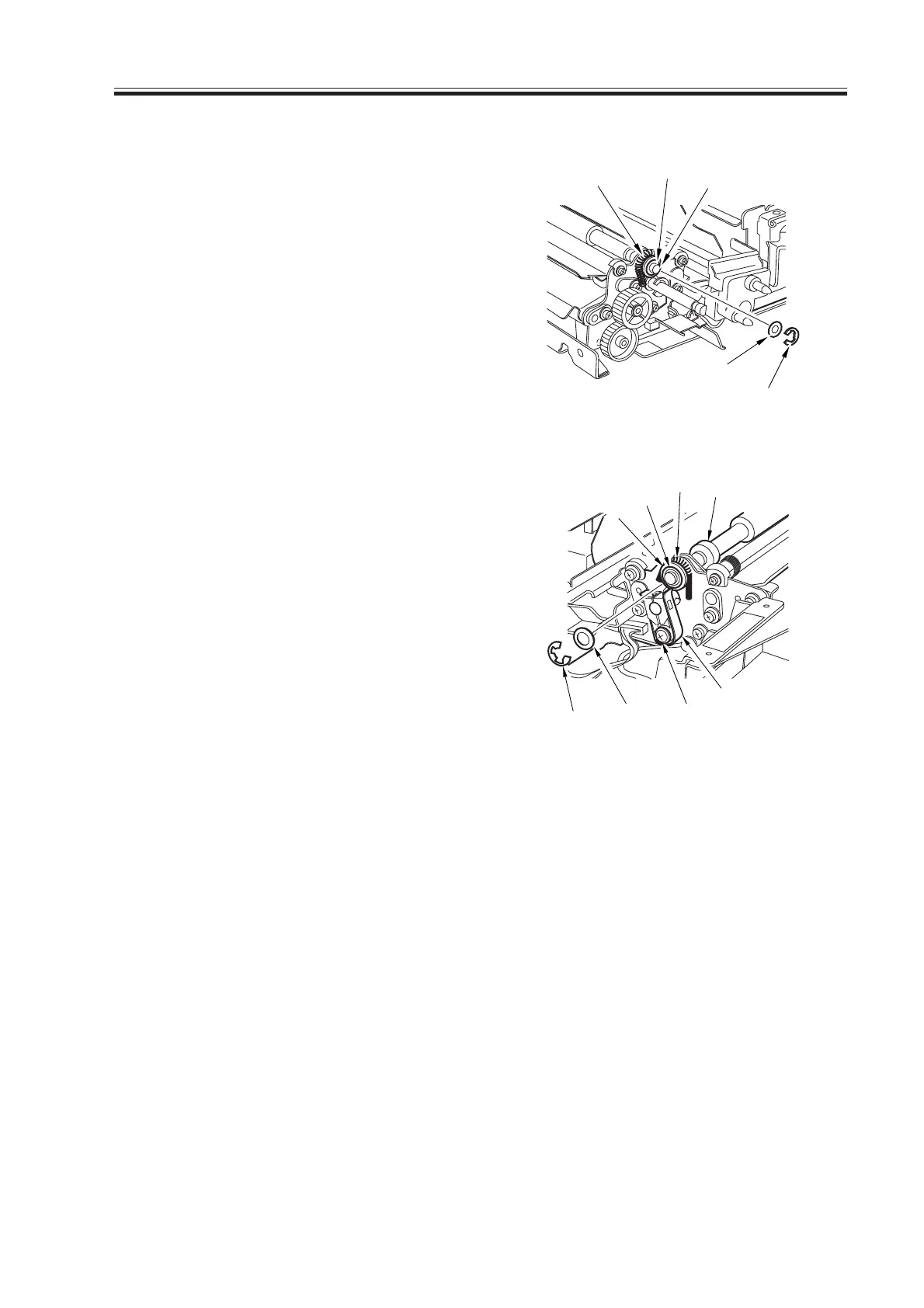

6) Remove the following from the back:
spring [3]
E-ring [4]
spacer [5]
bearing [6]
stopper [7]
F05-904-03
7) Remove the following from the front:
screw [8]
spring [9]
E-ring [10]
spacer [11]
bearing [12]
stopper [13]
break [14]
8) Remove the registration roller [15].
F05-904-04
[3]
[4]
[5]
[6]
[7]
