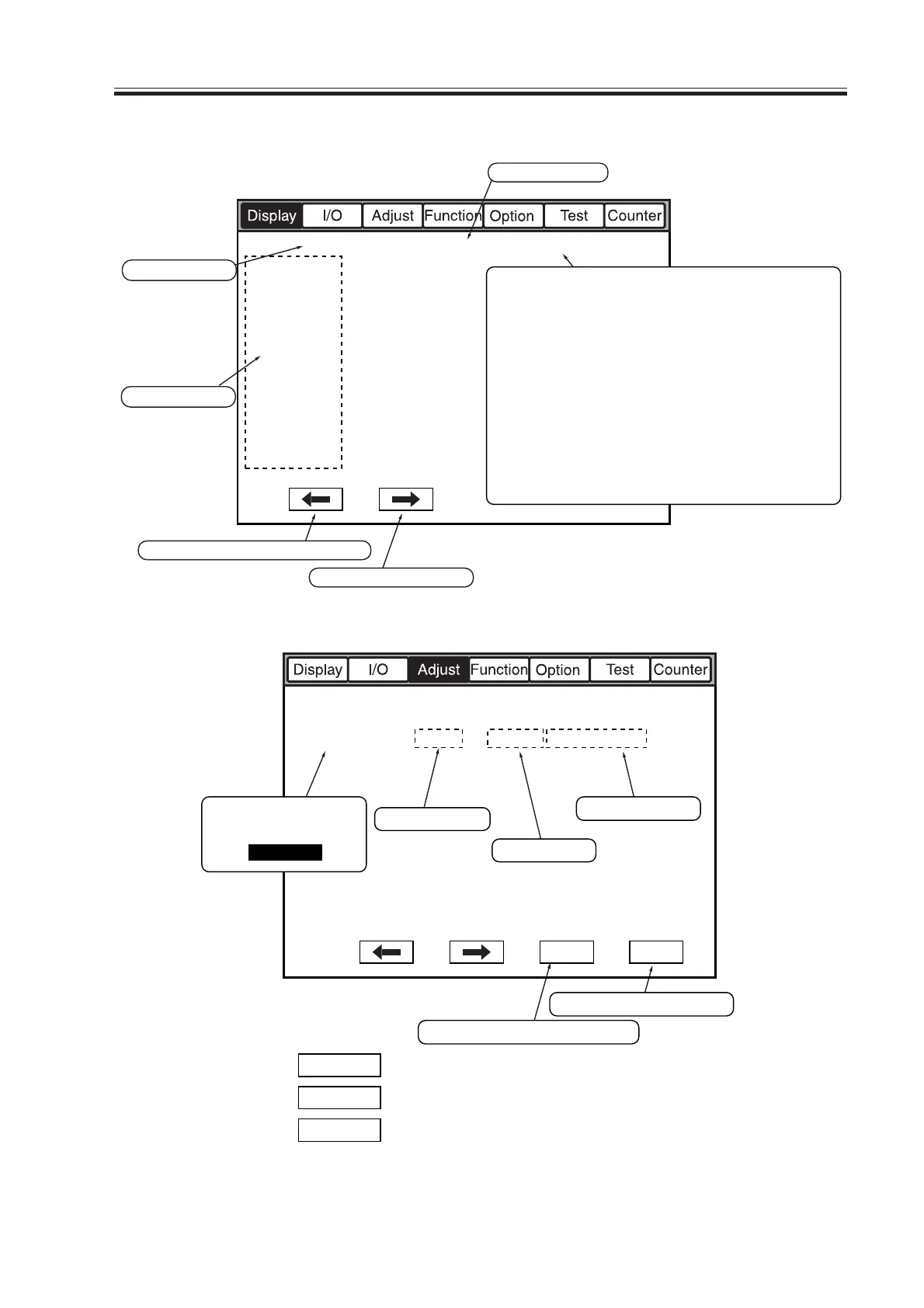

1.5.3 Level 3 Screen
F05-105-03
F05-105-04
<VERSION>
< 1/2 > < READY >
DC-CON
R-CON
PANEL
FEEDER
SORTER
NIB
PS/PCL
LIPS
READY:
ready to accept a servicing/
copying operation.
JAM:
paper jam exists.
SERVICE:
service operation under way.
WAITING:
initial rotation or the like under
way.
DOOR:
door open.
COPYING:
copying under way.
ERROR:
error exists.
NO-TONER:
toner absent
WTNR-FUL:
full of waste toner.
Level 2 item
Level 3 item
To go back to previous page
To go to next page
Page number
xxxxx
(yyyyy)
{aaaaa~bbbbb}
+/-
OK
ADJ-X
<ADJ-XY>
< 1/1 > < READY >
ADJ-X
key: stops the ongoing operation.
Accepts input value
Switches between + and -
Highlighted when
selected
Before
Stop
key: clears a value.
Clear
key: makes copies without ending service mode.Start
Input value
Range of input values
