Car-O-Liner CTR9 - Page 110

Car-O-Liner Group AB CTR9
110 49023, EN - rev. 4, 2020-01

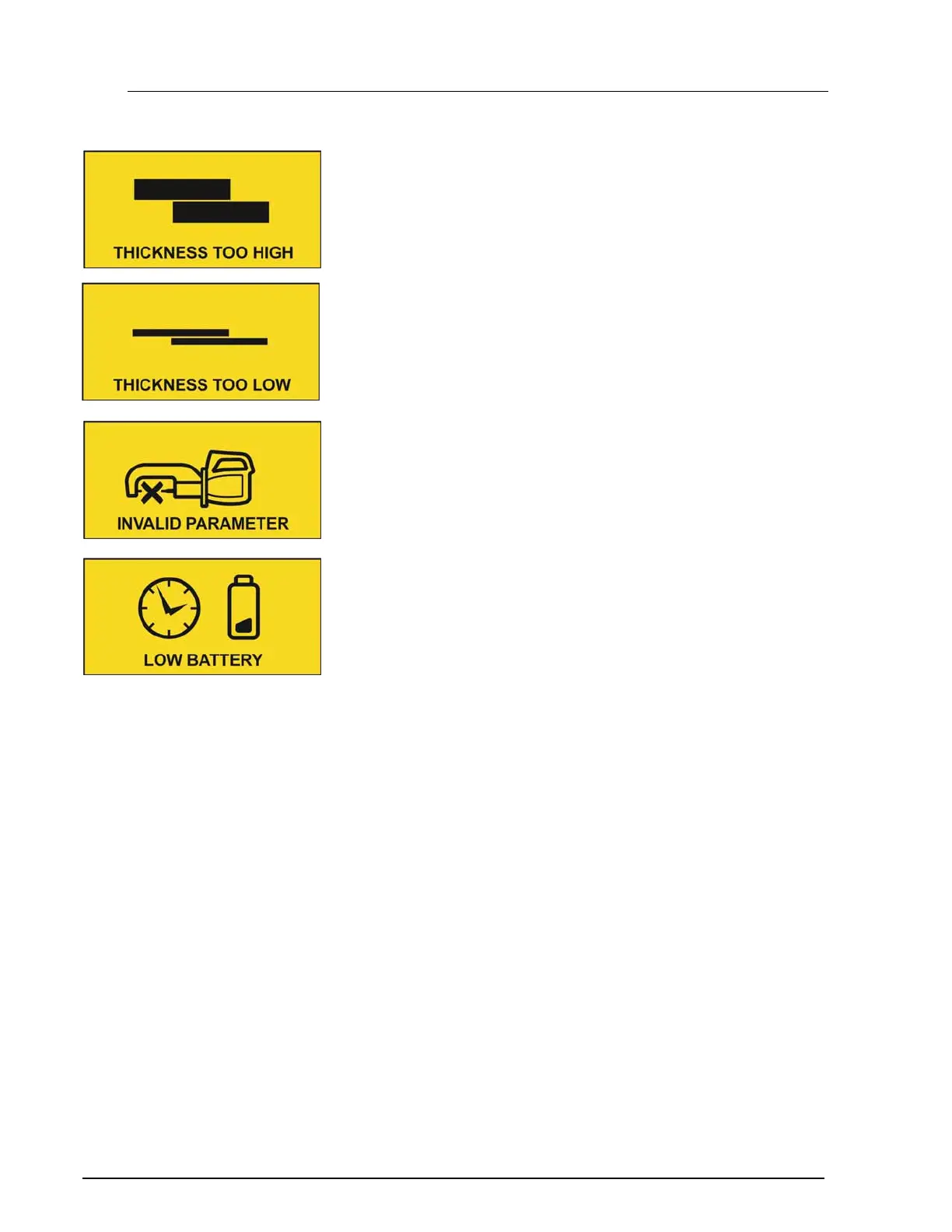

”Thickness too high” is shown when metal sheet thickness is over
10 mm.
“Thickness too low” is shown when metal sheet thickness is below
0,8 mm.
”Invalid parameter” is shown when a material is not supported by the
welding process.
”Low Battery” is shown when the clock battery needs to be replaced.
Contact authorized Car-O-Liner service personnel.
