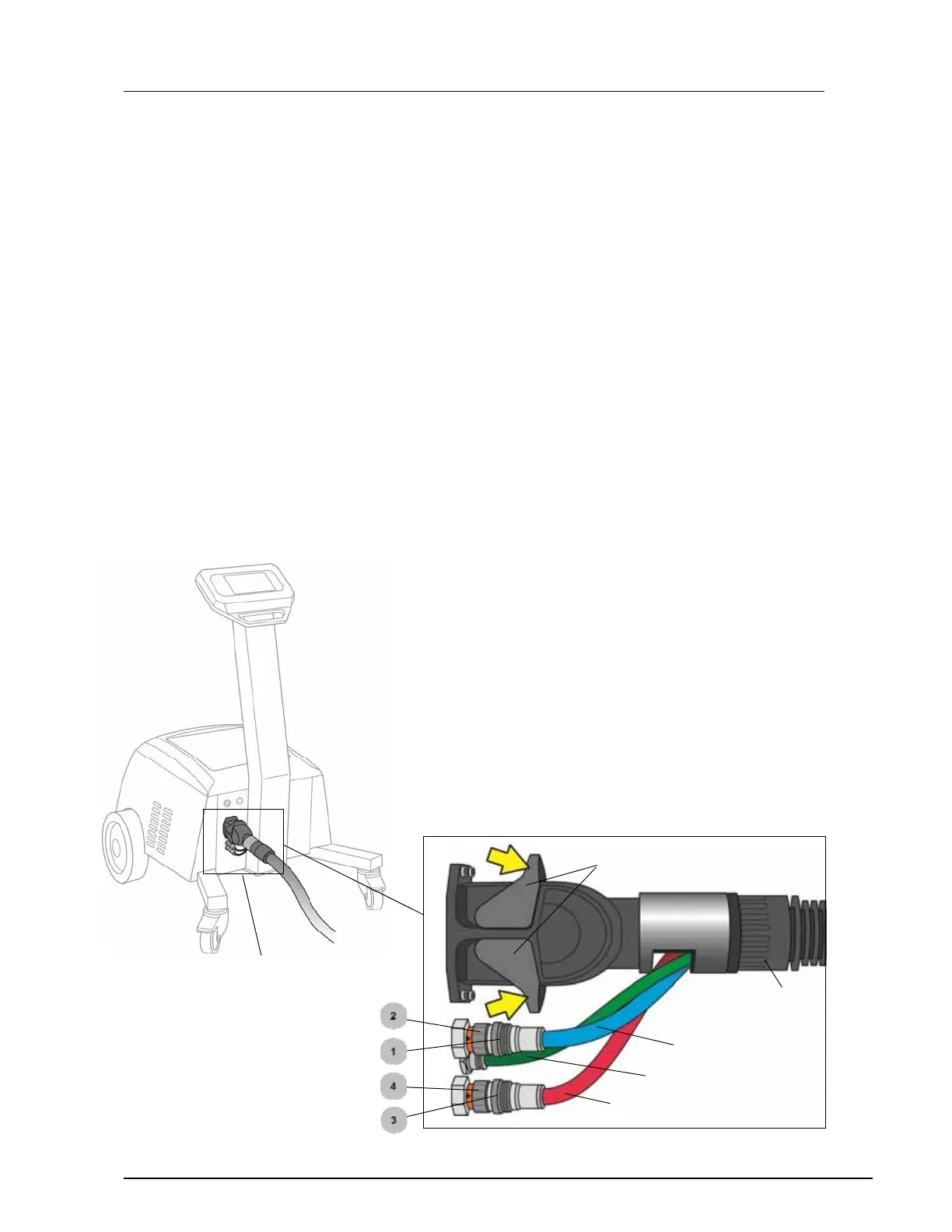

3.6 Connection and disconnection of the welding cable
The welding cable is connected to the welder by a quick connector with
separate water and air outlet hoses.
1. Connect water hose A (blue) to water outlet by pushing it into
coupling [1]. Lock by clockwise twisting and pulling inner grey
ring [2].
2. Connect water hose B (red) to water intake by pushing it into
coupling [3]. Lock by clockwise twisting and pulling inner grey
ring [4].
3. Connect air hose (green) to air hose outlet.
4. Connect welding cable quick connector and lock the locking
levers.
1. Release the locking levers and disconnect welding cable
quick connector.
2. Disconnect air hose.
3. Before disconnecting water hoses, turn off water flow,
see section 6.7 Turning off cooling water
4. To avoid water spill, place a container under water hose B.
5. Disconnect water hose B by counterclockwise twisting and
pushing inner grey ring [4]. Push outer grey ring [3] and
release hose.
6. Disconnect water hose A by counterclockwise twisting and
pushing inner grey ring [2]. Push outer grey ring [1] and
release hose.
Connecting:
Disconnecting:
Welding cable
quick connector
Welding cable
Quick connector
locking levers
Water hose A
Water hose B
Air hose
