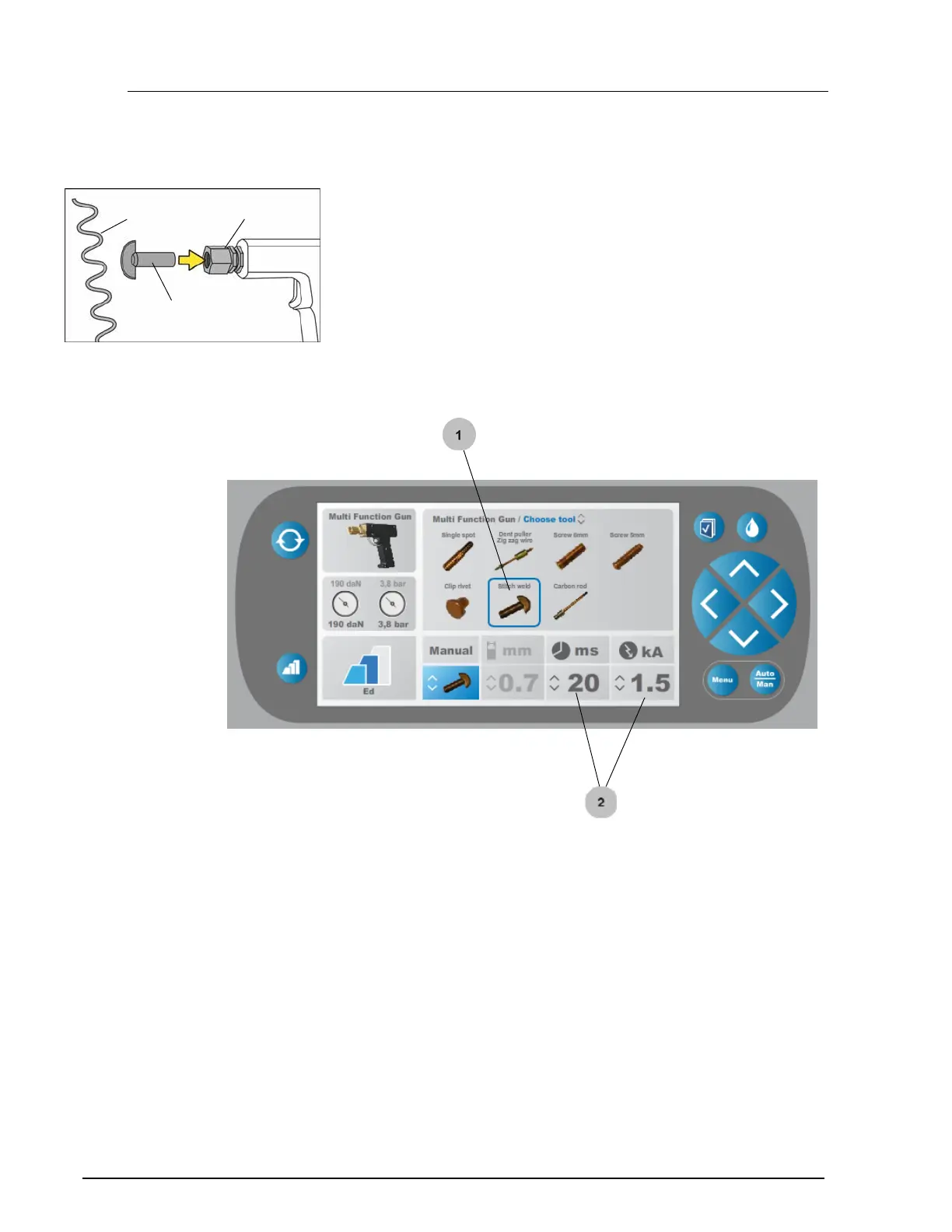

6.10.10 Stitch welding and welding of Zig zag wire
The stitch weld electrode is a multi-function gun application for producing a
seam weld and for welding Zig zag wire.
1. Select "Stitch weld" tool by pressing the "up/down" button.
2. Set welding time and current.
Stitch weld electrode
Lock nut
Zig zag wire
