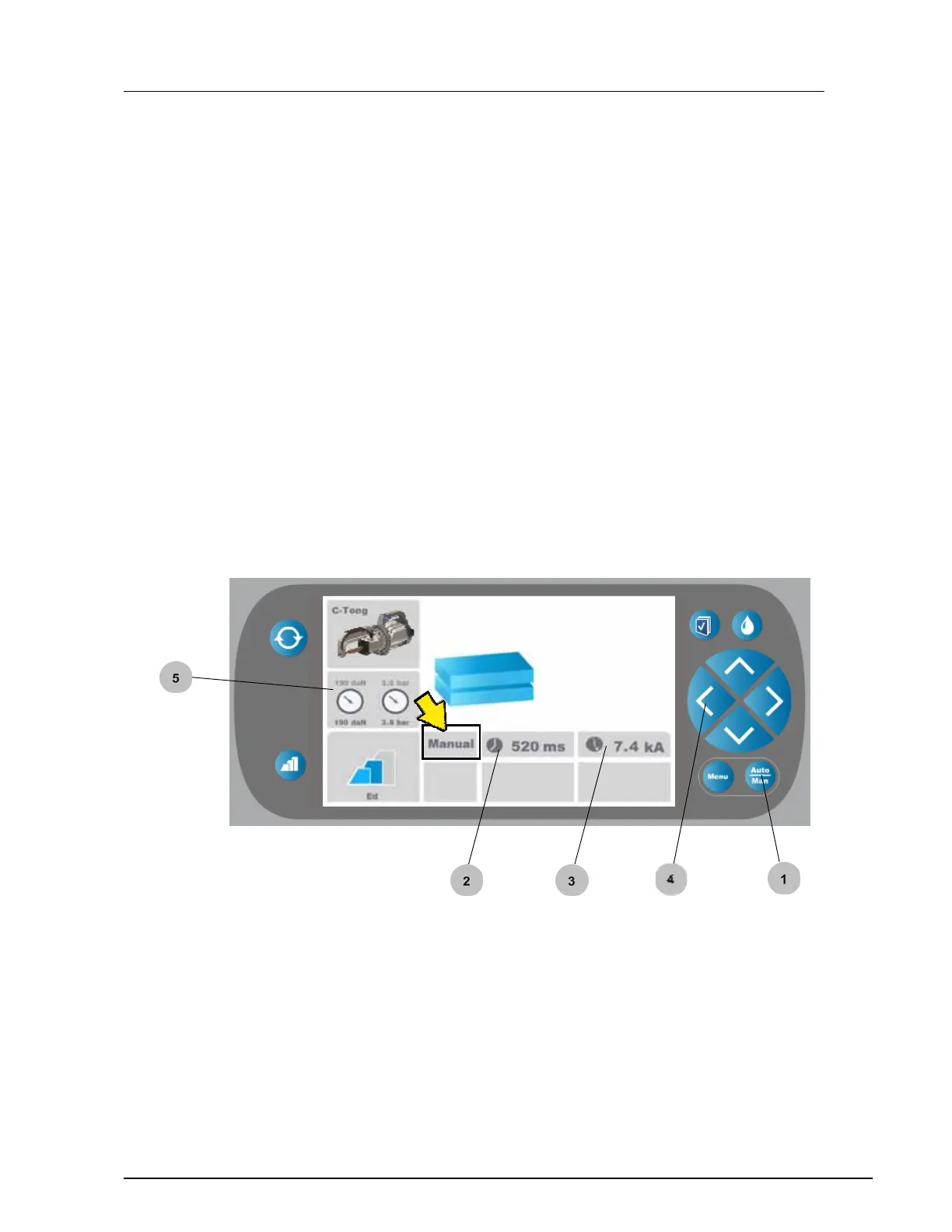

6.4 Manual mode
In the "Manual" mode all settings are the same as in "Auto 2" except for the
settings of welding time, welding current and electrode force that can be
manually set.
1. Set the "Manual" mode by pressing the "Auto/Man" button.
2. Set the welding time by pressing the "left" button twice when you
are in "Number of metal sheets" position. Change value by using
“up” or “down” button.
3. Set the welding current by pressing the "left" button when you are
in "Number of metal sheets" position. Change value by using “up”
or “down” button.
4. Set the air pressure by pressing the “left” button. Change value by
using “up” or “down” button.
5. Electrode force (daN) and air pressure is displayed.
