3.5 Connection of air supply
The CTR9 shall be connected to a compressed air network.
1. Connect the welder to the pneumatic air network via the screw
socket at the rear of the welder unit using a standard compressed air
connector.
2. Make sure that the compressed air network pressure to the welder
has a minimum pressure of between min 5 bar (73 PSI) and
max 10 bar (145 PSI).
IMPORTANT! The compressed air must be filtered and free from oil and
moisture. Use air filter/water separator.
IMPORTANT! Maximum air pressure 10 bar (145 PSI). Recommended air
pressure between 5 bar (73 PSI) and 10 bar (145 PSI).

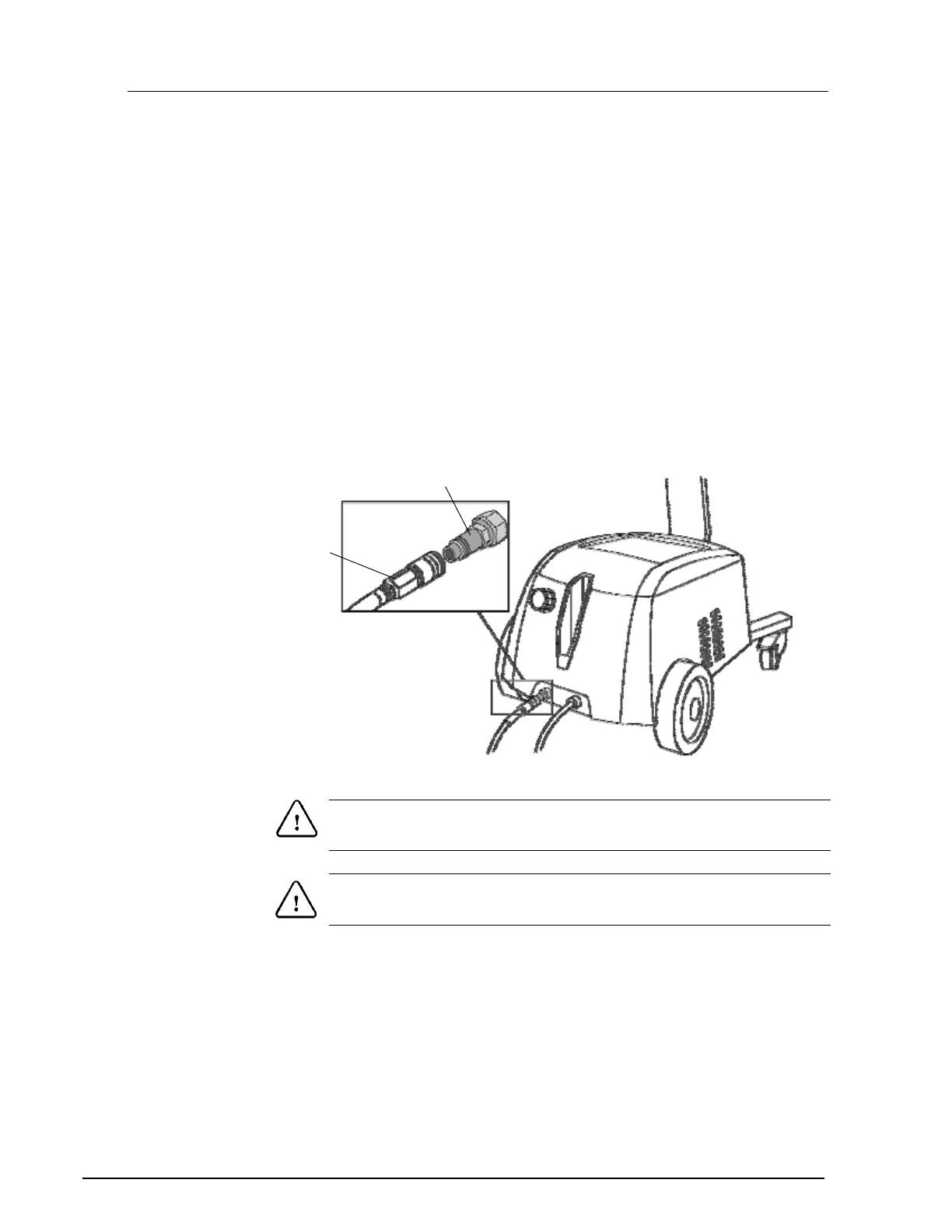

Screw socket G 1/4" (Air intake).
Torque fittings to: 88-102 Nm (65-75 ft-lbs)
Quick coupling
not included)
