6.10.2 Fitting the multi-function gun

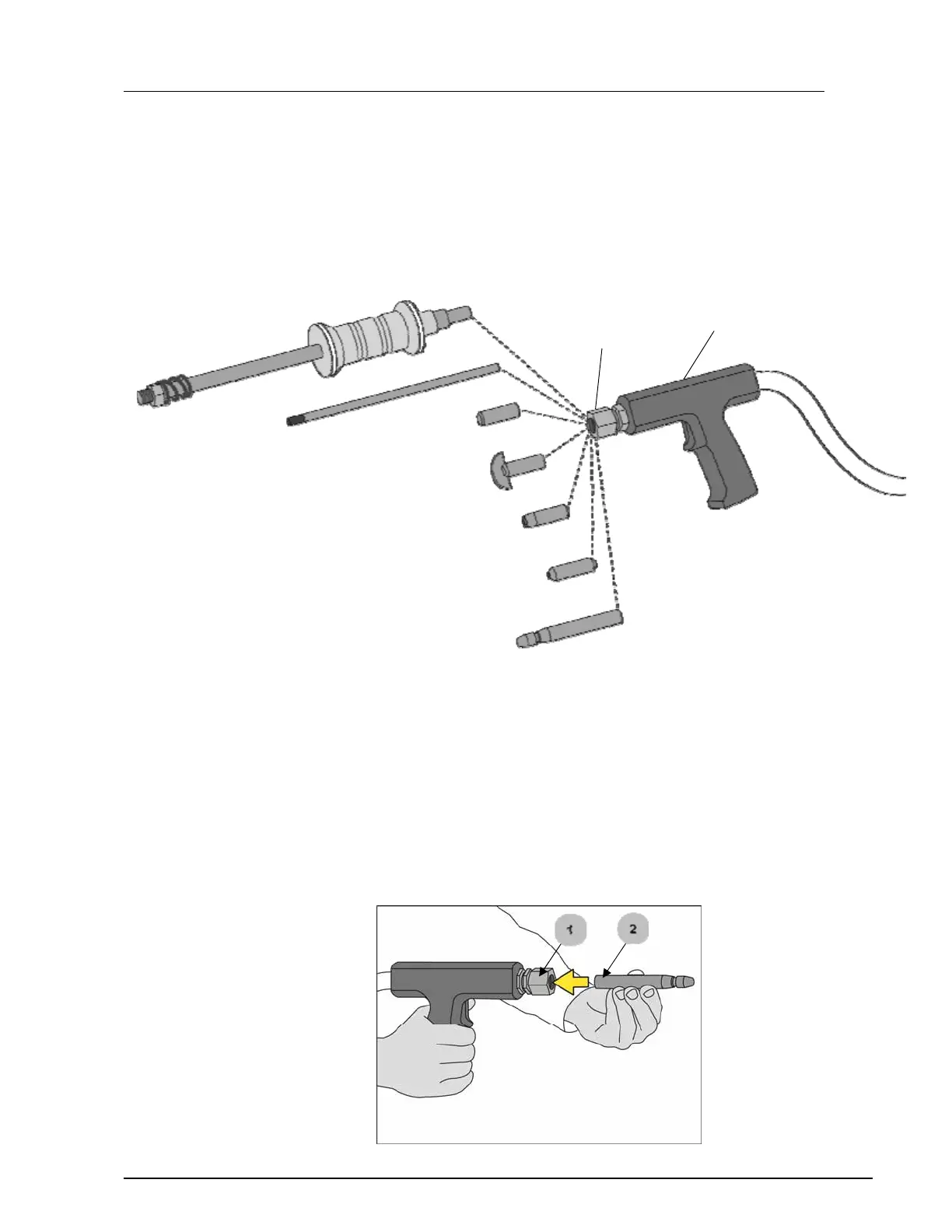

The multi-function gun can be fitted with a number of tools.
The most common tools are shown below.
Fit the multi-function gun with tools as follows:
1. Release the lock nut on the multi-function gun by hand or with a
wrench to open the tool holder.
2. Insert the desired tool into the tool holder.
3. Lock the tool holder by tightening the lock nut.
Tool holder
with lock nut
Dent pulle
r
Carbon rod
Stitch weld electrode
Clip rivet holde
r
Screw holde
r
Stamp electrode
Single spot electrode
Multi function gun
