1.2 Welder overview
The CTR9 consists of a welder unit fitted with a C-Tong.
An external multi-function gun is also available as option.
The welder is furnished with the following voltage and frequency
combination:
 208 V -5 % +10%, 50-60 Hz, 3-phase
 230 V -5 % +10%, 50-60 Hz, 3-phase
 400 V -5 % +10%, 50-60 Hz, 3-phase
 460 V -5 % +10%, 50-60 Hz, 3-phase
The actual voltage and frequency is stated on the name plate,
see section 1.3 Marking.

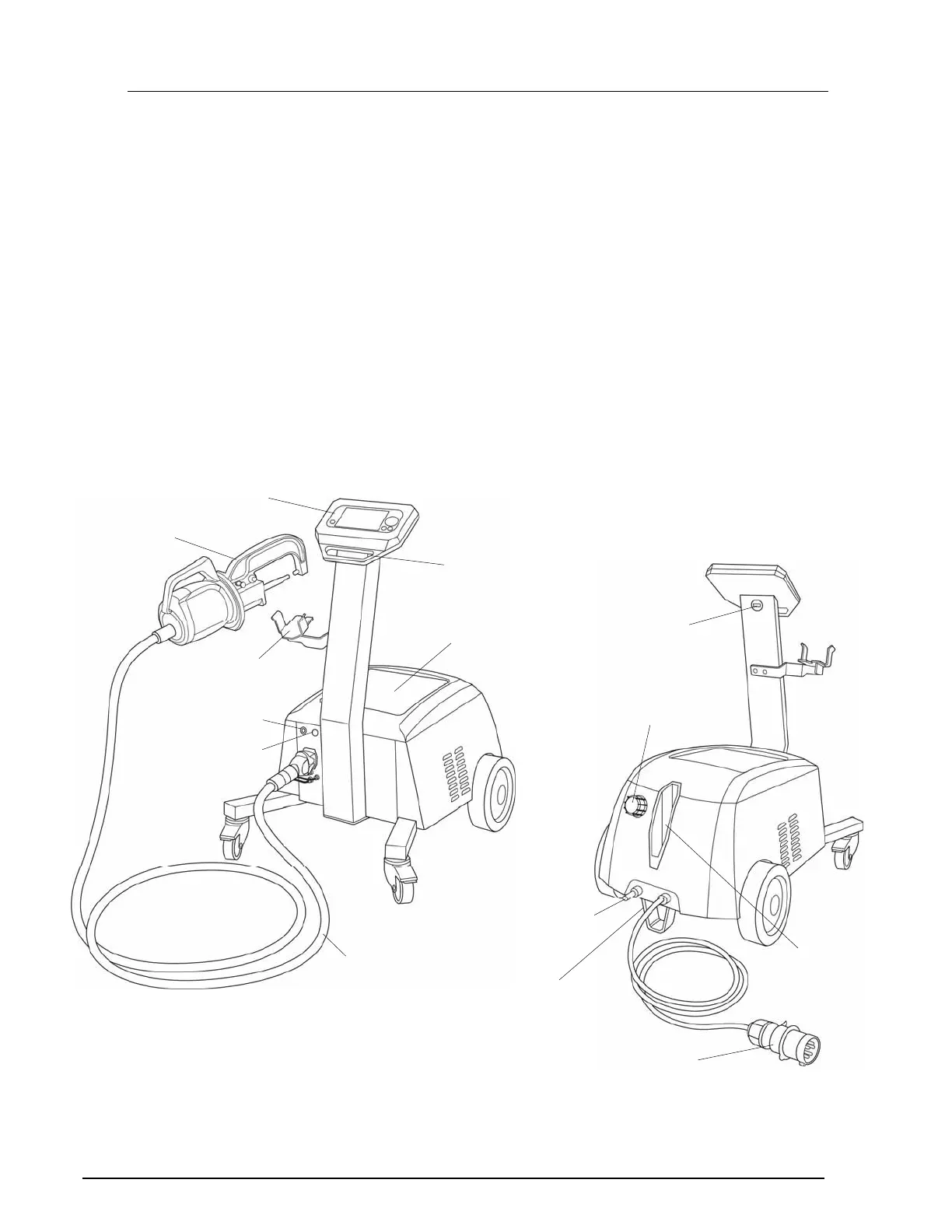

Figure 1.2 CTR9 overview.
Main switch
Accessories
storage tray
Welding cable
Buzzer
Handle
Control panel
and display
C-Tong
C-Ton
g
holder
Compressed
air intake
Mains electric
supply
Socket for
support
arm
USB slot
Tilt protection
Cooling liquid
filling hole
