Operatingcontrols

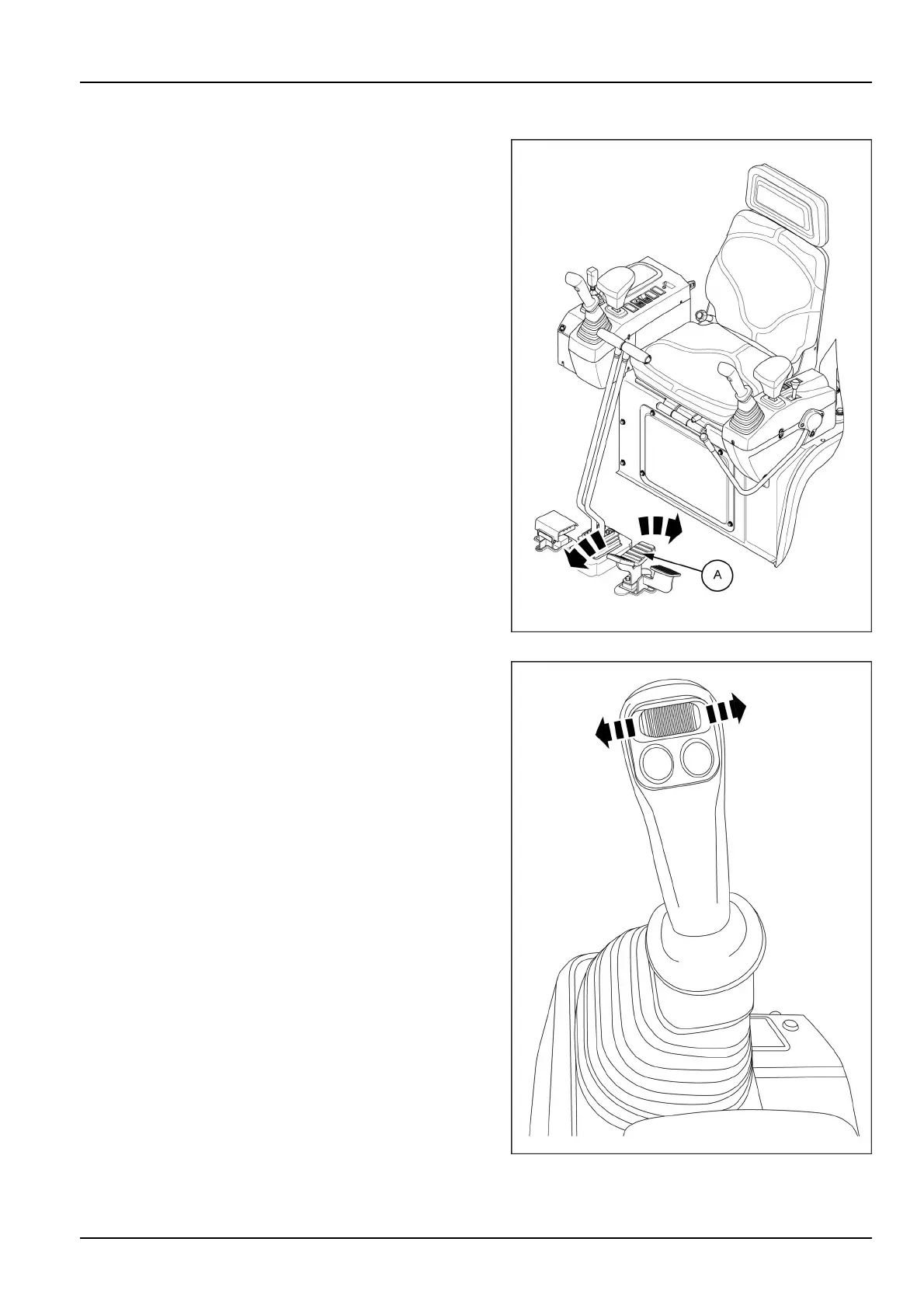

Ifthemachineisequippedwiththeauxiliarypedal(A)
proceedasfollows:
•
1-way:pressthefrontsideofpedaltofullstroketo
operateasingle-actinghydraulicattachment
•
2-way:pressthefrontsideandrearsideofpedaltofull
stroketooperateadouble-actinghydraulicattachment.
SMIL16MEX2314BB5
Iftheright-handcontrolleverisequippedwitha
proportionalswitch,proceedasfollows:
•
1-way:slidetotheleft-handsidetheswitchtooperate
thesingle-actinghydraulicattachment.
•
2-way:slidetheswitchtotheleft-handto“clamp”the
double-actinghydraulicattachment;slidetheswitchto
theright-handto“release”thedouble-actinghydraulic
attachment.
SMIL16MEX1265BA6
