9-ACCESSORIES

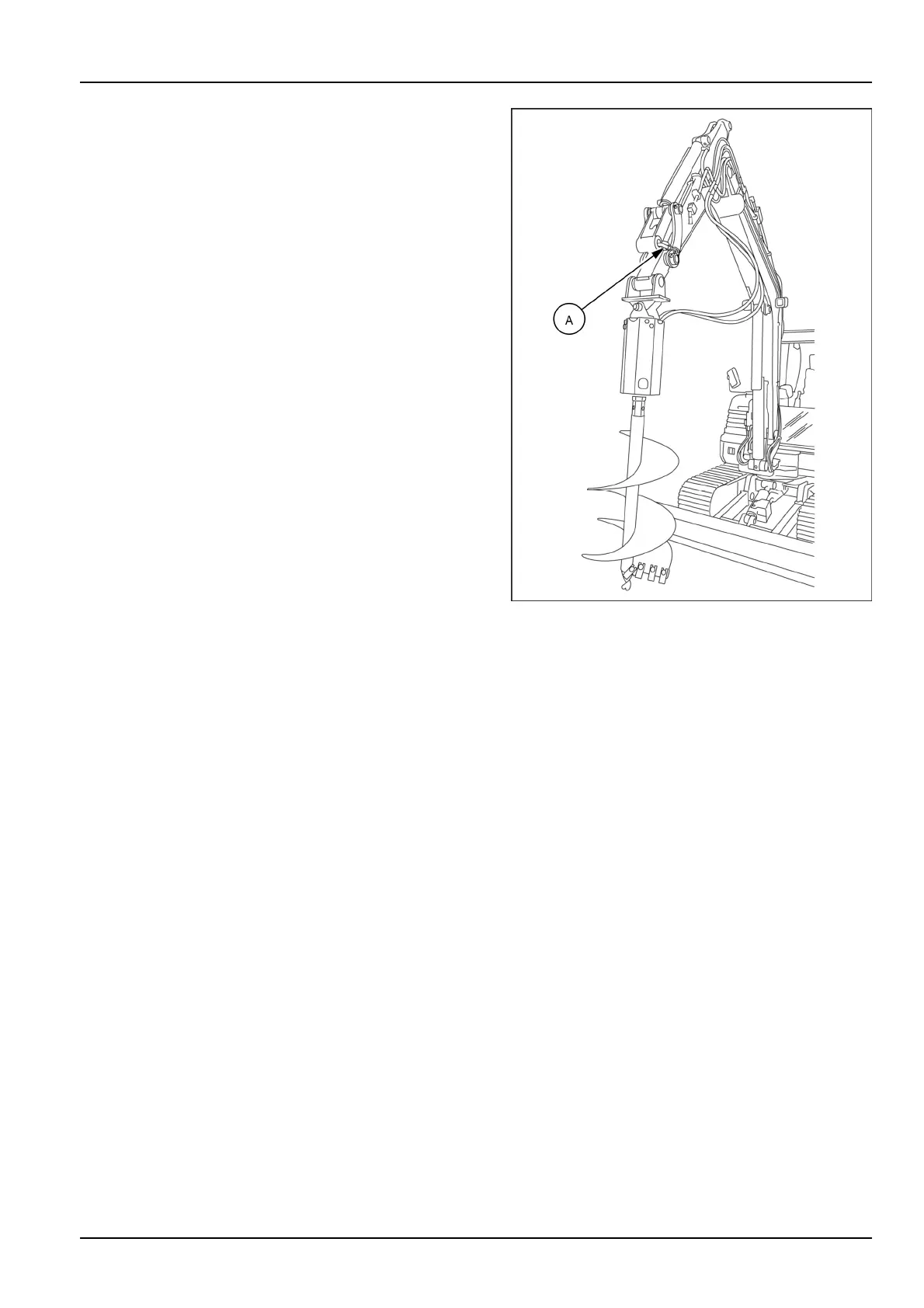

7.Useasuitablebeltwitheyebolt(A)tosecurethelink

rodonthetopofthearmtoavoidunappropriatedmov-

ingandtappingonthetopofthearm.

NOTE:appliestopendulummountonly.

SMIL17MEX2805BA20

8.Starttheengine.Operatethecontrolsofboom,arm

andbucketinordertopositionaugertothepositionfor

thehole.

9-13
