CASE CONSTRUCTION CX17C

To Next Page

To Previous Page

3-CONTROLSANDINSTRUMENTS

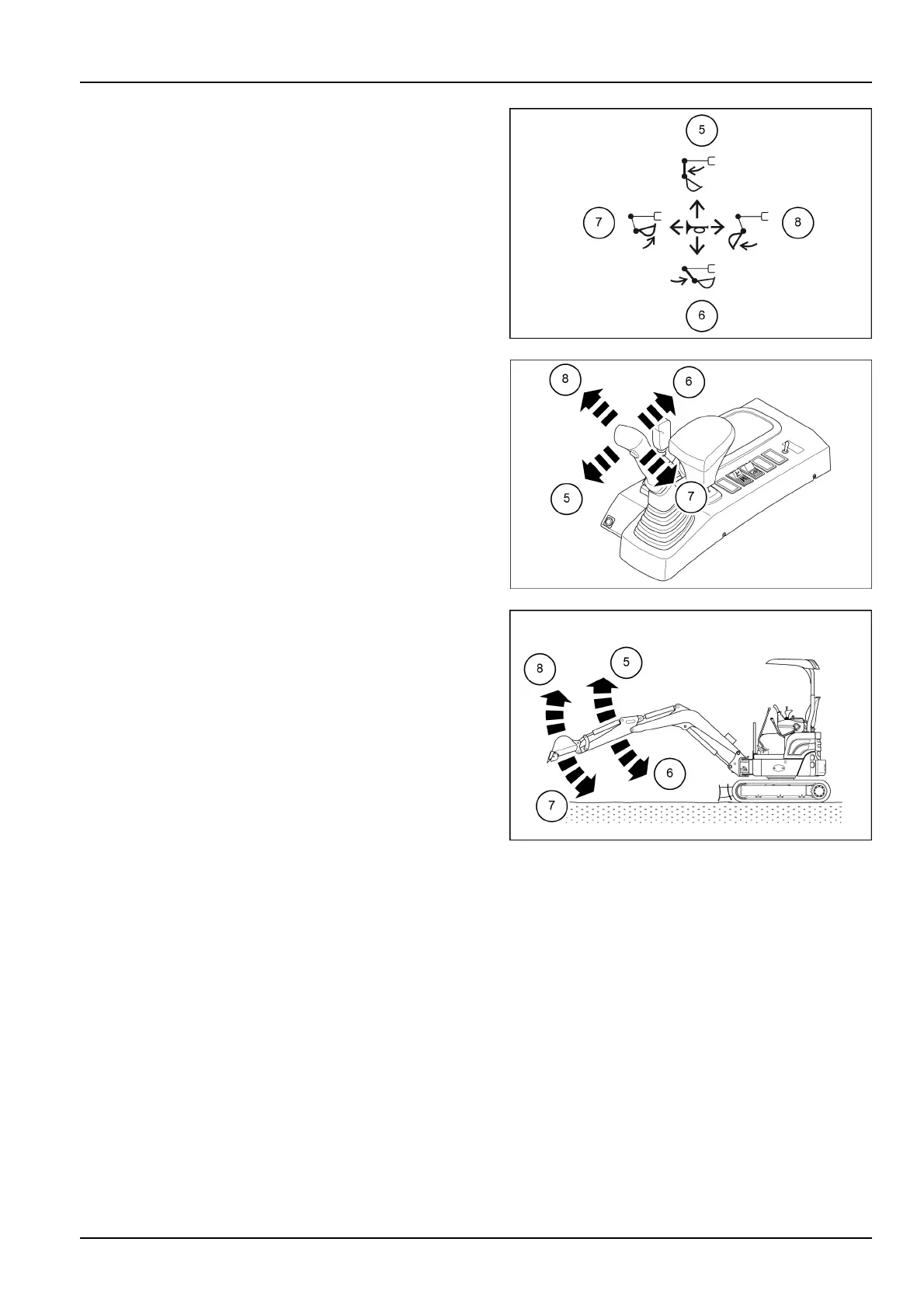

Right-handcontrollever:

5.Thedipperarmextends.

6.Thedipperarmretracts.

7.Thebucketretracts(lling).

8.Thebucketextends(dumping).

NOTE:themovementspeedoftheboomorofthebucket

dependsonthecontrollevertiltangle.Intheintermediate

positiontwomovementscanbeobtainedsimultaneously.

SMIL16MEX3079AB10

SMIL16MEX2324AA11

SMIL16MEX3234AB12

3-7
